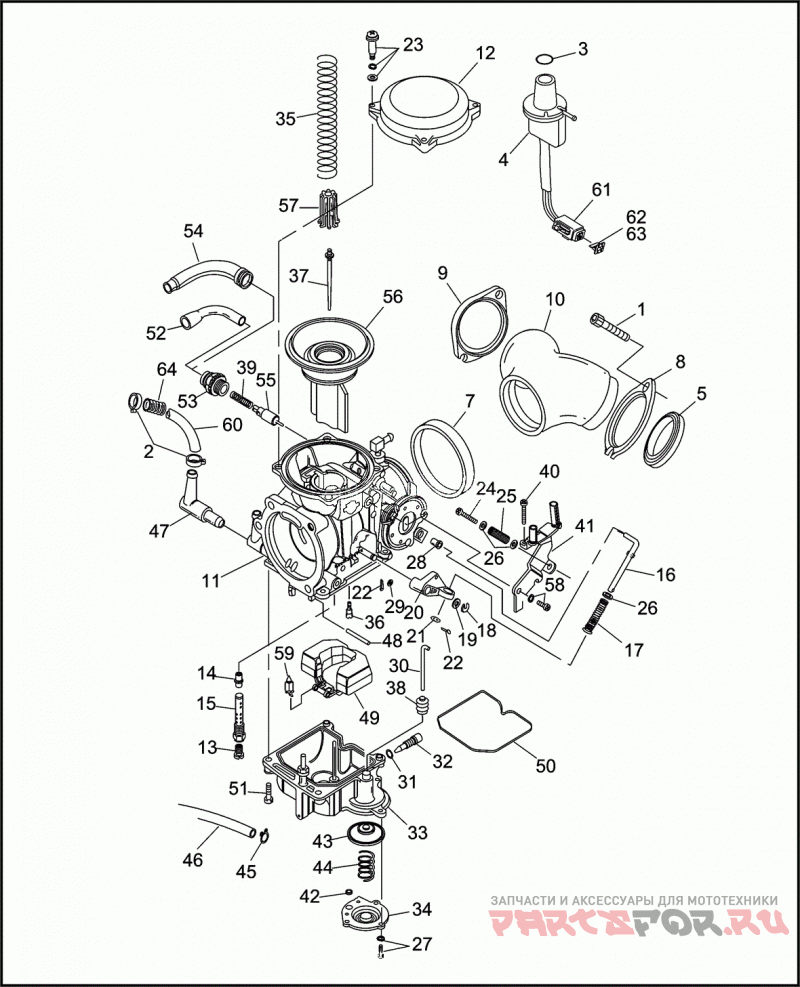

Карбюратор

Harley Davidson FLHTP-WND DA95 ELECTRA GLIDE STANDARD POLICE (FRG/WND) (1995)

Harley Davidson
#oem кодцена
1
3201WA
SCREW 5/16-18 X 1-1/4 knurled hd. | DA95/DF95
2
10014
CLAMP | DA95/DF95
3
11192
RETAINING RING | DA95/DF95
4
26555-94
VACUUM SWITCH w/ 61, 62 & 63 | DA95/DF95
5
26995-86B
SEAL intake manifold | DA95/DF95
6
26563-94
VACUUM HOSE ASSEMBLY (not illustrated) | DA95/DF95
7
27002-89
SEAL RING | DA95/DF95
8
27009-86A
FLANGE mounting, front | DA95/DF95
9
27010-86A
FLANGE mounting, rear | DA95/DF95
10
27019-89A
MANIFOLD | DA95/DF95
11
27207-93B
CARBURETOR | DA95/DF95
12
27040-88
TOP carburetor | DA95/DF95
13
27090-89
MAIN JET 1.75 mm | DA95/DF95
14
27100-88
NEEDLE JET | DA95/DF95
15
27101-88
NEEDLE JET HOLDER | DA95/DF95
18
27124-89
E-CLIP | DA95/DF95
19
27125-89
WASHER | DA95/DF95
20
27126-89
LEVER | DA95/DF95
21
27127-89
WASHER | DA95/DF95
22
27128-89
PIN | DA95/DF95
23
27129-88
SCREW top | DA95/DF95
24
27130-90
IDLE SCREW | DA95/DF95
25
27136-90A
SPRING | DA95/DF95
26
27137-81
WASHER | DA95/DF95
27
27146-89
SCREW w/ washer | DA95/DF95
28
27147-89
COLLAR | DA95/DF95
29
27148-89
WASHER | DA95/DF95
30
27156-89
ROD | DA95/DF95
31
27157-89
O-RING | DA95/DF95
32
27158-89
DRAIN SCREW | DA95/DF95
33
27159-92
FLOAT CHAMBER ASSEMBLY | DA95/DF95
35
27162-89
SPRING | DA95/DF95
37
27184-92
JET NEEDLE | DA95/DF95
38
27311-76
CAP accelerator pump | DA95/DF95
39
27315-88A
SPRING | DA95/DF95
40
27317-88
SCREW | DA95/DF95
42
27360-76
O-RING | DA95/DF95
43
27361-76A
DIAPHRAGM accelerator pump | DA95/DF95
44
27362-76
SPRING diaphragm | DA95/DF95
45
27368-76
CLIP overflow hose | DA95/DF95
46
27369-76
HOSE overflow, w/ 27368-76 | DA95/DF95
47
27371-76A
FITTING | DA95/DF95
48
27575-88A
PIN | DA95/DF95
49
27576-92
FLOAT | DA95/DF95
50
27577-92
O-RING | DA95/DF95
51
27579-88A
SCREW | DA95/DF95
52
27580-88
CABLE GUIDE | DA95/DF95
53
27581-88
STARTER CAP | DA95/DF95
54
27582-88
CABLE SEALING CAP | DA95/DF95
55
27583-88
STARTER VALVE | DA95/DF95
56
27585-88
VACUUM PISTON | DA95/DF95
57
27586-88
SPRING SEAT | DA95/DF95
58
27587-88
SCREW | DA95/DF95
59
27886-78A
VALVE w/ clip | DA95/DF95
60
62356-95
FUEL HOSE | DA95/DF95
61
72112-94BK
PLUG 2-way socket | DA95/DF95
62
72152-94
SECONDARY LOCK 2-way socket | DA95/DF95
63
72191-94
TERMINAL socket | DA95/DF95
64
62555-95
INSULATOR 1/2 I.D. (nylon) (8 ft. long) | DA95/DF95
