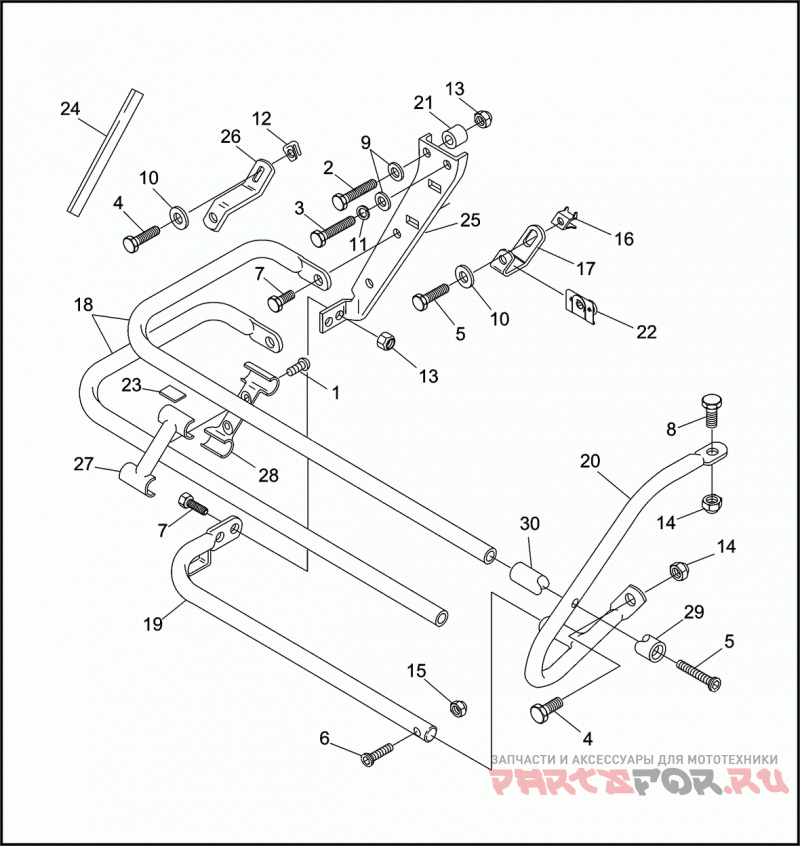

SADDLEBAG GUARDS - FLHTP

Harley Davidson FLHTP-FRG DF95 ELECTRA GLIDE STANDARD POLICE (FRG/WND) (1995)

Harley Davidson
#oem кодцена
1
1750
SCREW No. 10-24 X 1/2 TORX flat hd. | DA95/DF95
2
2818
BOLT 5/16-18 X 1-1/2 hex hd. (Grade 5) | DA95/DF95
3
2882W
SCREW 5/16-18 X 5/8 hex hd. (Grade 5) | DA95/DF95
4
3574
SCREW 1/4-20 X 3/4 flange | DA95/DF95
5
3584
SCREW 5/16-18 X 2-1/2 socket button hd. (Grade 8) | DA95/DF95
6
3601
SCREW 1/4-20 X 1-1/4 knurled hd. (Grade 8) | DA95/DF95
7
3987
BOLT 5/16-18 X 3/4 hex hd. (Grade 5) | DA95/DF95
8
4713W
BOLT 3/8-16 X 3/4 hex hd. (Grade 5) | DA95/DF95
9
6702
WASHER 5/16 X 11/16 X 1/16 | DA95/DF95
10
6703
WASHER 1/4 X 5/8 X 1/16 | DA95/DF95
11
7041
LOCKWASHER 5/16 | DA95/DF95
12
7490
CLIP NUT | DA95/DF95
13
7531
LOCKNUT 5/16-18 X 9/32 X 1/2 flange | DA95/DF95
14
7667
NUT 3/8-16 X 9/32 X 9/16 nylon insert | DA95/DF95
15
7686
LOCKNUT 1/4-20 X 5/16 X 7/16 | DA95/DF95
16
7743A
CLIP NUT | DA95/DF95
17
47449-95
BRACKET front | DA95/DF95
18
49193-93
GUARD saddlebags | DA95/DF95
19
49194-85
SUPPORT saddlebag, left | DA95/DF95
19
90781-93
SUPPORT saddlebag, right | DA95/DF95
20
49202-93
GUARD right | DA95/DF95
20
49203-93
GUARD left | DA95/DF95
21
59060-92
SPACER | DA95/DF95
22
70909-95
RECEPTACLE | DA95/DF95
23
91054-07
PAD | DA95/DF95
24
90594-85A
CUSHION | DA95/DF95
25
90718-79C
SUPPORT BRACKET left | DA95/DF95
25
90720-79C
SUPPORT BRACKET right | DA95/DF95
26
90801-95
BRACKET saddlebag mounting | DA95/DF95
27
90934-93A
CLAMP rear left, outer | DA95/DF95
27
90946-93A
CLAMP rear right, outer | DA95/DF95
28
90935-93A
CLAMP rear right, inner | DA95/DF95
28
90936-93A
CLAMP rear left, inner | DA95/DF95
29
90943-93A
MOUNT guard | DA95/DF95
30
90945-93A
MOUNT guard | DA95/DF95
