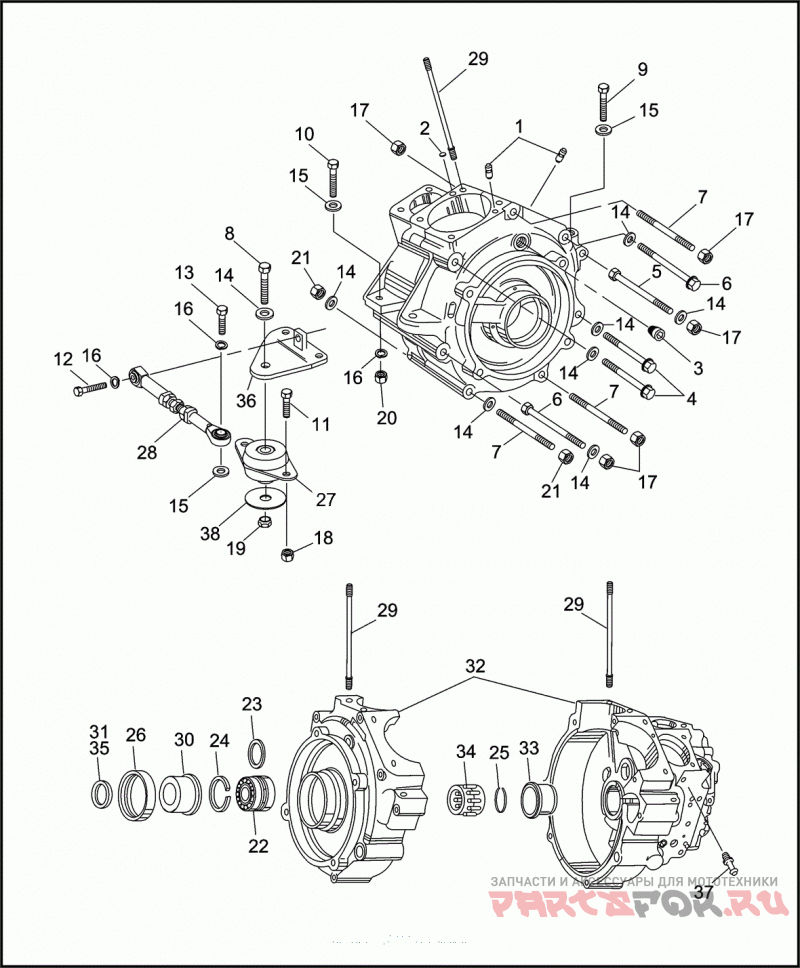

Картер двигателя

Harley Davidson FLHTP-FRG DF95 ELECTRA GLIDE STANDARD POLICE (FRG/WND) (1995)

Harley Davidson
#oem кодцена
1
358
DOWEL PIN | DA95/DF95
2
653
EXPANSION PLUG | DA95/DF95
3
720
PLUG timing hole | DA95/DF95
4
3427
BOLT 5/16-18 X 3-1/2 hex hd. (Grade 5) | DA95/DF95
5
3430
BOLT 5/16-24 X 5 hex hd. (Grade 5) | DA95/DF95
6
3504
BOLT 5/16-24 X 5-3/8 hex hd. (Grade 5) | DA95/DF95
7
3506
STUD 5/16-24 X 5-3/4 hex hd. (Grade 5) | DA95/DF95
8
3512
BOLT 3/8-24 X 3-1/4 hex hd. (chrome) | DA95/DF95
9
3528
BOLT 3/8-16 X 3-1/4 hex hd. (Grade 8) | DA95/DF95
10
3554
BOLT 3/8-16 X 1-3/4 hex hd. | DA95/DF95
11
4319
BOLT 3/8-24 X 1 hex hd. (Grade 5) | DA95/DF95
12
4716W
SCREW 3/8-16 X 1-1/4 hex hd. (Grade 5) | DA95/DF95
13
4721
BOLT 3/8-16 X 1-1/2 hex hd. (Grade 5) | DA95/DF95
14
6016
WASHER 11/32 X 11/16 X 1/16 | DA95/DF95
15
6019
WASHER 3/8 X 29/32 X 1/16 | DA95/DF95
16
7038
LOCKWASHER 3/8 | DA95/DF95
17
7593
NUT 5/16-24 flange | DA95/DF95
18
7780
LOCKNUT 3/8-24 X 13/32 X 11/16 flange | DA95/DF95
19
7782
LOCKNUT 3/8-24 X 3/8 X 9/16 (Grade 8) | DA95/DF95
20
7783
NUT 3/8-16 X 5/16 X 9/16 (Grade 2) | DA95/DF95
21
7883
NUT 5/16-24 X 1-1/16 | DA95/DF95
22
9028
BEARING ASSEMBLY sprocket shaft | DA95/DF95
23
9110
SHIM bearing assembly, 0.0905-.0895 inch | DA95/DF95
23
9120
SHIM bearing assembly, 0.0925-.0915 inch | DA95/DF95
23
9121
SHIM bearing assembly, 0.0945-.0935 inch | DA95/DF95
23
9122
SHIM bearing assembly, 0.0965-.0955 inch | DA95/DF95
23
9123
SHIM bearing assembly, 0.0985-.0975 inch | DA95/DF95
23
9124
SHIM bearing assembly, 0.1005-.0995 inch | DA95/DF95
23
9125
SHIM bearing assembly, 0.1025-.1015 inch | DA95/DF95
23
9126
SHIM bearing assembly, 0.1045-.1035 inch | DA95/DF95
23
9127
SHIM bearing assembly, 0.1065-.1055 inch | DA95/DF95
23
9128
SHIM bearing assembly, 0.1085-.1075 inch | DA95/DF95
23
9129
SHIM bearing assembly, 0.1105-.1095 inch | DA95/DF95
23
9130
SHIM bearing assembly, 0.1125-.1115 inch | DA95/DF95
23
9131
SHIM bearing assembly, 0.1145-.1135 inch | DA95/DF95
23
9132
SHIM bearing assembly, 0.1165-.1155 inch | DA95/DF95
23
9133
SHIM bearing assembly, 0.1185-.1175 inch | DA95/DF95
23
9134
SHIM bearing assembly, 0.1205-.1195 inch | DA95/DF95
24
9028
BEARING ASM., main - left side of crankshaft | DA95/DF95
25
11177A
RETAINING RING bearing, right | DA95/DF95
26
12026B
OIL SEAL | DA95/DF95
27
16207-79D
ENGINE MOUNT front | DA95/DF95
28
16219-79C
STABILIZER LINK lower | DA95/DF95
29
16837-85C
STUD cylinder base | DA95/DF95
30
24002-70
SPACER sprocket shaft | DA95/DF95
31
24032-70
SPACER sprocket shaft, 0.060 inch thick | DA95/DF95
31
24033-70
SPACER sprocket shaft, 0.090 inch thick | DA95/DF95
31
24034-70
SPACER sprocket shaft. 0.120 inch thick | DA95/DF95
31
24035-70
SPACER sprocket shaft, 0.150 inch thick | DA95/DF95
31
24036-70
SPACER sprocket shaft, 0.180 inch thick | DA95/DF95
31
24037-70
SPACER sprocket shaft, 0.210 inch thick | DA95/DF95
32
24571-93
SET OF CRANKCASES (black wrinkle) | DA95/DF95
33
24599-58B
BUSHING right crankcase, standard | DA95/DF95
33
24600-58B
BUSHING right crankcase, 0.002 inch O.S. O.D. | DA95/DF95
33
24601-58B
BUSHING right crankcase, 0.005 inch O.S. O.D. | DA95/DF95
34
24626-87A
BEARING SET gear side (white/gray) | DA95/DF95
34
24628-87A
BEARING SET gear side (green) | DA95/DF95
34
24641-87A
BEARING SET gear side (red) | DA95/DF95
34
24643-87A
BEARING SET gear side (blue) | DA95/DF95
35
35850-84
SPACER sprocket shaft, 0.010 inch thick | DA95/DF95
35
35851-84
SPACER sprocket shaft, 0.020 inch thick | DA95/DF95
35
35852-84
SPACER sprocket shaft. 0.030 inch thick (use 35850-84 & 35851-84) | DA95/DF95
36
47159-79A
BRACKET front engine mount | DA95/DF95
37
63533-41A
FITTING oil hose | DA95/DF95
38
96210-80A
WASHER | DA95/DF95
