FUEL TANK - FLHTP для мотоциклов Harley Davidson FLHTP 1DAL ELECTRA GLIDE STANDARD POLICE (WINDSHIELD) (1995) (1995)

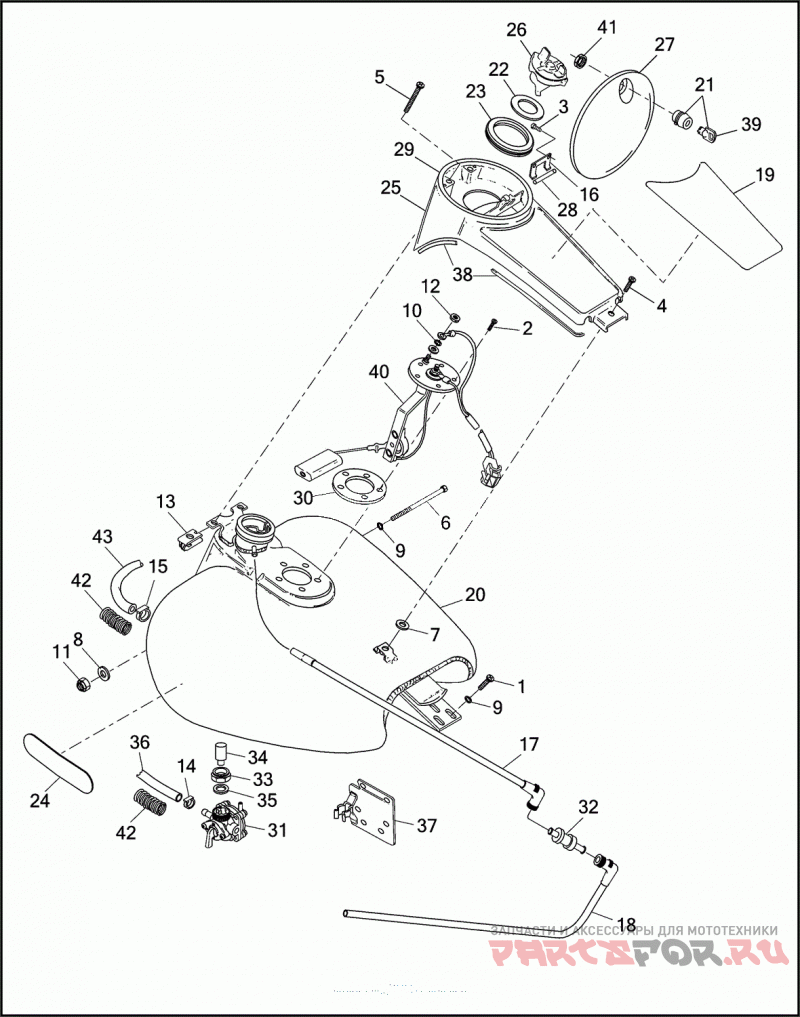

FUEL TANK - FLHTP

Harley Davidson FLHTP 1DAL ELECTRA GLIDE STANDARD POLICE (WINDSHIELD) (1995)

oem код

название

цена

939

SCREW 1/4-20 X 1 SELF-TAPPING, W/WASHER (GRADE 2)

1309C

SCREW SEALING

3529

SCREW NO. 10-32 X 1/4 HEX SLOTTED WASHER HD., SELF-TAPPING

3652

SCREW 1/4-20 X 3/8 BUTTON HD. (GRADE 8)

4033

SCREW 1/4-20 X 1-5/8 SOCKET BUTTON HD.

4061

BOLT 5/16-18 X 5 HEX HD. (GRADE 5)

6109

WASHER 5/16 X 11/16 X 1/8

6702

WASHER 5/16 X 11/16 X 1/16

6703

WASHER 1/4 X 5/8 X 1/16

7069

LOCKWASHER NO. 10

7531

LOCKNUT 5/16-18 X 9/32 X 1/2 FLANGE

7638

NUT NO. 10-32 X 1/8 X 3/8 (GRADE 2)

CLIP NUT

Зажим

Зажим

Зажим

TUBE TANK TO VALVE

HOSE VENT TO ATMOSPHERE

INSERT CONSOLE PANEL

FUEL TANK PRIME

LOCK DOOR W/ KEYS

LOCK SET COMPLETE

GASKET, filler cap

чехол

DECAL in.HARLEY-DAVIDSONin.

61282-03

Консоль

61274-92

Крышка заливной горловины

DOOR CONSOLE

PIN DOOR HINGE

BUMPER COVER

GASKET SENDING UNIT

FUEL VALVE BODY

VAPOR VALVE

NUT VALVE

FILTER FUEL VALVE

GASKET VALVE

HOSE FUEL

BRACKET VALVE MEETING

MOLDING RUBBER

SENDING UNIT

NUT 3/4-24 X 5/32

INSULATOR 5/8 INCH I.D. (NYLON) (8 FT. LONG)
