ELECTRONIC IGNITION SYSTEM для мотоциклов Harley Davidson FLHTP 1DAL ELECTRA GLIDE STANDARD POLICE (WINDSHIELD) (1995) (1995)

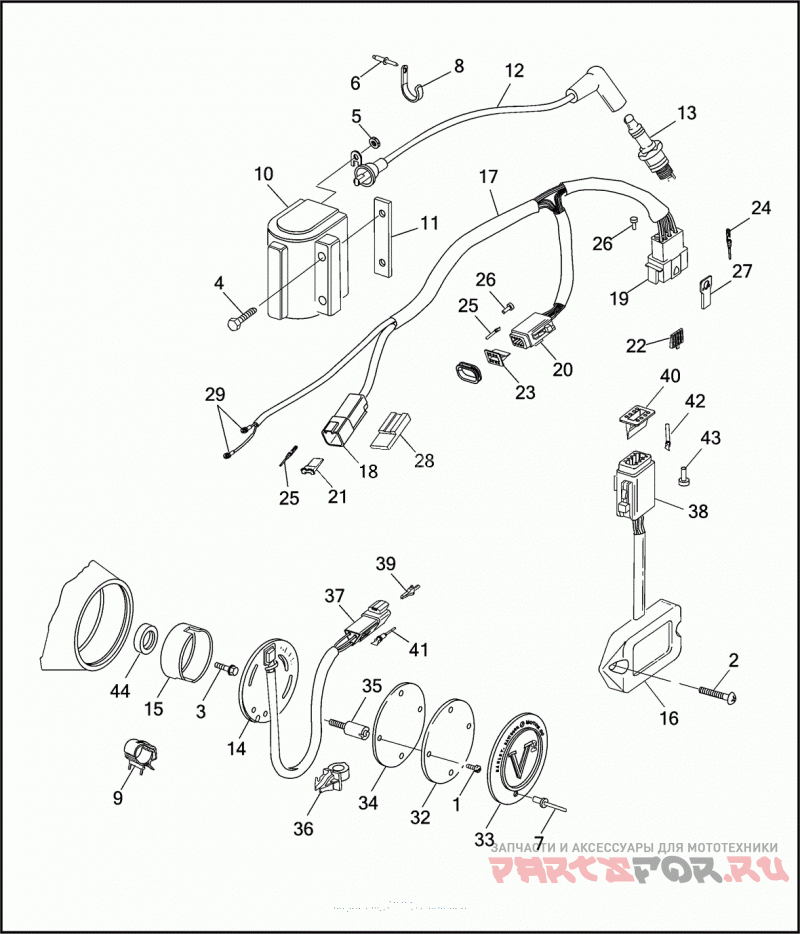

ELECTRONIC IGNITION SYSTEM

Harley Davidson FLHTP 1DAL ELECTRA GLIDE STANDARD POLICE (WINDSHIELD) (1995)

oem код

название

цена

1601

SCREW NO. 8-32 X 1/2 POZIDRIV FLAT COUNTERSINK HD. (GRADE 2)

2611C

BOLT NO. 10-32 X 3/4 HEX HD., W/WASHER (GRADE 5)

3993

BOLT 1/4-20 X 1-1/4 HEX HD. (GRADE 5)

7629

NUT NO. 10-32 X 3/8 KEPS

8483A

RIVET BLIND

8699

RIVET IGNITION MODULE

Зажим

CLIP T-STUD

Катушка зажигания

PLATE NUT

SPARK PLUG CABLE REAR CYLINDER

31994-91A

SPARK PLUG CABLE FRONT CYLINDER

32400-94A

SENSOR ASSEMBLY W/ 41

32402-83

Ротор

32426-94

IGNITION MODULE W/ 38, 40, 42 & 43

32435-94

IGNITION WIRING HARNESS W/ 18-31

RECEPTACLE 2-WAY PIN

RECEPTACLE 8-WAY PIN

PLUG 8-WAY SOCKET

PIN LOCK SECONDARY, 2-WAY

72148-94

PIN LOCK SECONDARY, 8-WAY

72158-94

SOCKET LOCK SECONDARY, 8-WAY

TERMINAL PIN

TERMINAL SOCKET

SEAL PIN

ATTACHMENT CLIP 8-WAY

72199-94

ATTACHMENT CLIP

72241-94A

TERMINAL #10 RING TYPE

72249-94

HEAT SHRINK TUBE (NOT ILLUSTRATED)

72266-94

HEAT SHRINK TUBE DUAL WALL (NOT ILLUSTRATED)

TIMER COVER INNER

TIMER COVER OUTER

GASKET TIMER COVER

SCREW TIMER COVER

RETAINER WIRE

RECEPTACLE 3-WAY

PLUG 8-WAY SOCKET

SECONDARY LOCK 3-WAY RECEPTACLE
