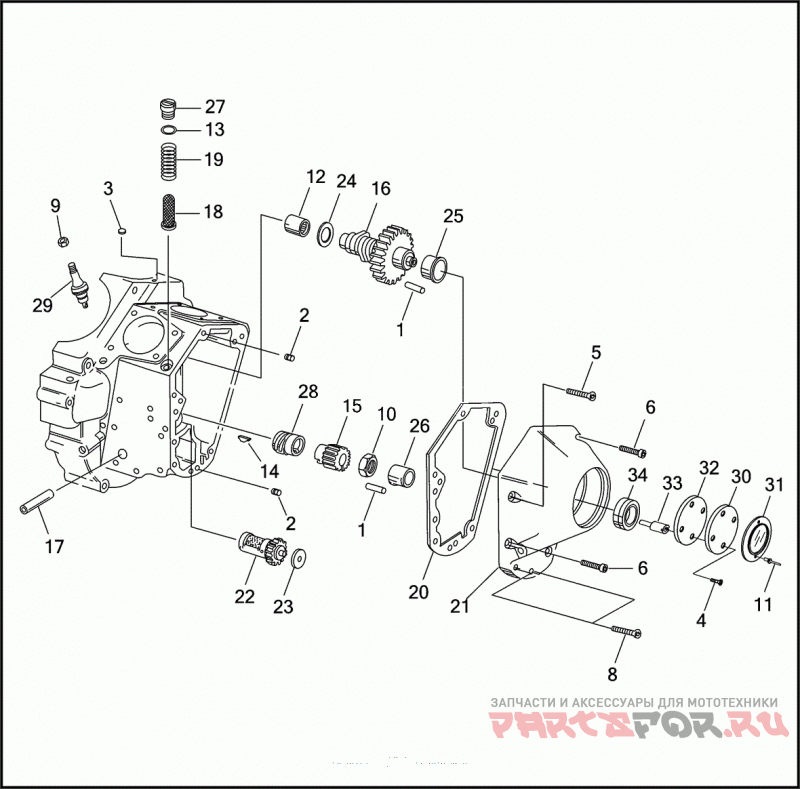

CRANKCASE - GEAR SIDE

Harley Davidson FLHTP 1DAL ELECTRA GLIDE STANDARD POLICE (WINDSHIELD) (1995)

Harley Davidson
#oem кодцена
1
275
Палец
2
358
Палец
3
653
Деталь PLUG CRANKCASE
4
1601
Деталь SCREW NO. 8-32 X 1/2 POZIDRIV FLAT COUNTERSINK HD. (GRADE 2)
5
3480A
Деталь SCREW 1/4-20 X 1-3/4 KNURLED HD. (GRADE 8)
6
4813A
Деталь SCREW 1/4-20 X 1-3/8 KNURLED HD., W/LOCKPATCH
7
4740A
Деталь SCREW 1/4-20 X 1-1/4 KNURLED HD., W/LOCKPATCH (GRADE 8)
8
4718A
Деталь SCREW 1/4-20 X 1-1/2 KNURLED HD., W/LOCKPATCH
9
7629
Деталь NUT NO. 10-32 X 3/8 KEPS
10
7916A
Деталь JAMNUT 5/8-18
11
8699
Деталь RIVET IGNITION COVER
12
9058A
Деталь NEEDLE BEARING CRANKCASE CAM COVER
13
11105
Уплотнительное кольцо
14
11219
Деталь T-KEY
15
24040-93
Деталь PINION GEAR 1.4850-53 PD. (ORANGE)
15
24041-93
Деталь PINION GEAR 1.4846-49 PD. (WHITE)
15
24042-93
Деталь PINION GEAR 1.4842-45 PD. (YELLOW)
15
24043-93
Деталь PINION GEAR 1.4838-41 PD. (RED)
15
24044-93
Деталь PINION GEAR 1.4834-37 PD. (BLUE)
15
24045-93
Деталь PINION GEAR 1.4830-33 PD. (GREEN)
15
24046-93
Деталь PINION GEAR 1.4826-29 PD. (BLACK)
16
24586-93
Деталь SET OF CAM & PINION GEARS MATCHED
17
24641-36
Деталь BUSHING OIL PUMP SHAFT
18
24981-70
Деталь OIL SCREEN CRANKCASE
20
25225-93B
Деталь GASKET GEAR COVER
21
25256-93A
Деталь GEAR COVER CHROME
22
25310-82A
Деталь BREATHER VALVE GEAR
23
25320-82
Деталь THRUST WASHER BREATHER VALVE, 0.130 INCH THICK
23
25321-82
Деталь THRUST WASHER BREATHER VALVE, 0.135 INCH THICK
23
25322-82
Деталь THRUST WASHER BREATHER VALVE, 0.140 INCH THICK
23
25323-82
Деталь THRUST WASHER BREATHER VALVE, 0.145 INCH THICK
23
25325-82
Деталь THRUST WASHER BREATHER VALVE, 0.150 INCH THICK
23
25326-82
Деталь THRUST WASHER BREATHER VALVE, 0.155 INCH THICK
23
25327-82
Деталь THRUST WASHER BREATHER VALVE, 0.160 INCH THICK
23
25328-82
Деталь THRUST WASHER BREATHER VALVE, 0.165 INCH THICK
24
25550-57A
Деталь THRUST WASHER CAM GEAR
25
25581-70
Деталь BUSHING GEAR COVER
26
25582-93
Деталь BUSHING GEAR COVER PINION SHAFT
27
26263-80
Деталь PLUG OIL SCREEN
28
26354-93
Деталь DRIVE GEAR OIL PUMP
29
26561-84
Датчик давления масла
30
32504-80A
Деталь COVER INNER
31
32524-83
Деталь TIMER COVER
32
32591-80
Деталь GASKET IGNITION COVER
33
32606-82
Винт
34
83162-51
Деталь OIL SEAL BEARING
