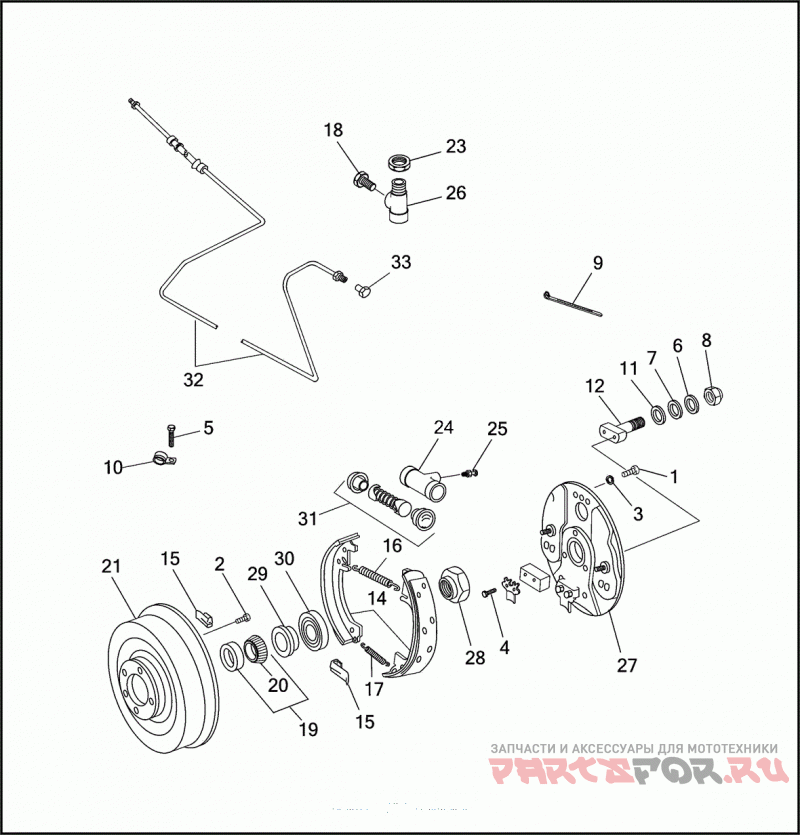

SIDECAR BRAKE - TLE

Harley Davidson SIDECAR FOR ULTRA 8SKX ULTRA SIDECAR (1994)

Harley Davidson
#oem кодцена
1
3728
SCREW 1/4-20 X 1/2 HEX HD.
2
1643
SCREW 7/16-14 X 1-1/4 SOCKET FLAT COUNTERSINK HD., W/LOCKPATCH
3
7036
WASHER 1/4 X 31/64 X 1/16
4
4020W
BOLT 5/16-24 X 1-3/8 HEX HD. (GRADE 5)
5
4091
SCREW NO. 10-24 X 1/2 HEX HD., W/WASHER, SELF-TAPPING (ZINC)
6
6700B
WASHER 5/8 X 13/16 X 1/32
7
6712B
WASHER 5/8 X 15/16 X 3/32
8
7993
LOCKNUT 5/8-18 X 15/16
9
10006
CABLE STRAP
10
10059A
Зажим
11
18268-48
WASHER AS REQUIRED
12
41720-58
ANCHOR STUD
13
41742-58A
SCREW & LOCKWASHER BRAKE CYLINDER
14
41802-58A
SET OF BRAKE SHOES & LININGS
15
41835-58
HOLD DOWN SPRING
16
41836-58
BRAKE SHOE SPRING UPPER
17
41837-58
BRAKE SHOE SPRING LOWER
18
42311-58
PLUG BRAKE LINE TEE
19
48302-85
BEARING BRAKE DRUM
20
48315-60
BEARING CUP BRAKE DRUM
21
87002-83
BRAKE DRUM ASSEMBLY (NOT ILLUSTRATED)
22
87029-85
BRAKE LINE (NOT ILLUSTRATED)
23
87032-85
FITTING BRAKE LINE
24
87071-89
BRAKE CYLINDER WHEEL (5/8 INCH)
26
87113-83
TEE SIDECAR BRAKE LINE
27
87672-76
SIDE PLATE
28
87706-83
LOCKNUT AXLE SHAFT
29
87713-83
Проставка
30
87714-83
Сальник
31
87752-89
REPAIR KIT BRAKE CYLINDER (5/8 INCH)
32
87776-92
BRAKE LINE
33
87778-64A
CAP SIDECAR BRAKE LINE
