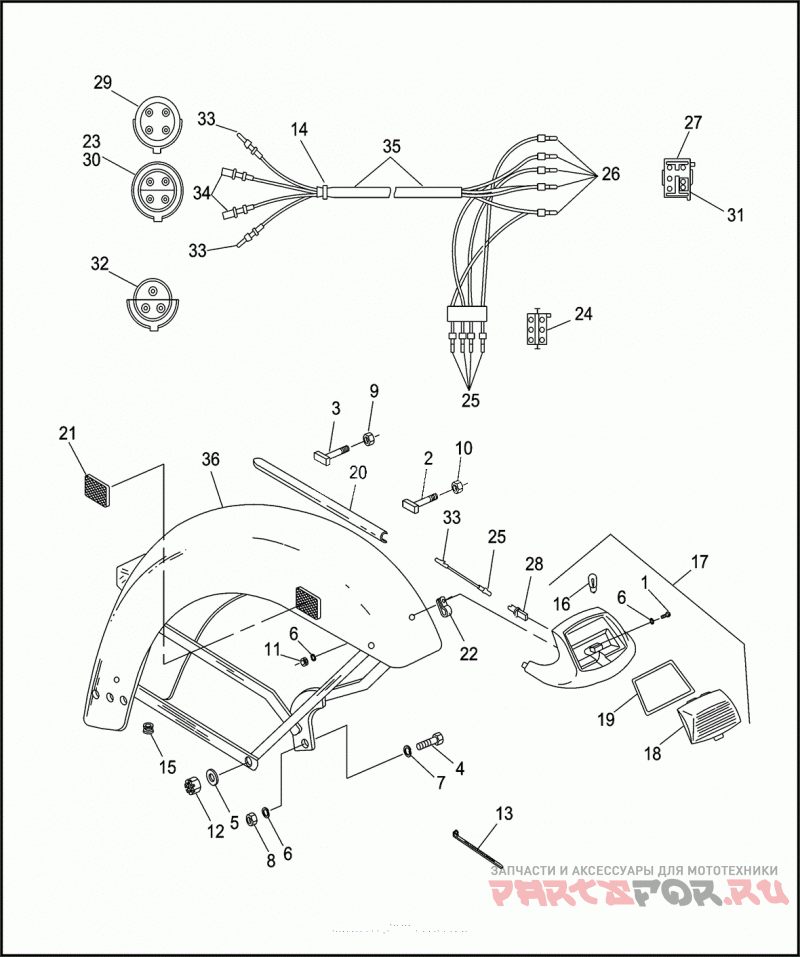

SIDECAR FENDER - RLE

Harley Davidson RLE HX94 RLE SIDECAR (1994)

Harley Davidson
#oem кодцена
1
2604
SCREW No. 10-32 X 1/2 Pozidriv pan hd. (Grade 2) | HX93/HX94
2
3560WA
BOLT No. 10-24 X 3/8 | HX93/HX94
3
3561WC
BOLT No. 10-24 X 3/8 | HX93/HX94
4
4721
BOLT 3/8-16 X 1-1/2 hex hd. (Grade 5) | HX93/HX94
5
6653A
WASHER 1/2 X 1-1/8 X 3/32 | HX93/HX94
6
7118
LOCKWASHER 3/16 internal tooth | HX93/HX94
7
7130W
LOCKWASHER 3/8 internal tooth | HX93/HX94
8
7601
LOCKNUT 3/8-16 flange | HX93/HX94
9
7624
LOCKNUT No. 10-24 X 1/4 X 3/8 | HX93/HX94
10
7629
NUT No. 10-32 X 3/8 keps | HX93/HX94
11
7638
NUT No. 10-32 X 1/8 X 3/8 (Grade 2) | HX93/HX94
12
7823
NUT 5/8-18 X 3/8 X 15/16 slotted (Grade 2) | HX93/HX94
13
10006
CABLE STRAP (as required) | HX93/HX94
14
10065
CABLE STRAP | HX93/HX94
15
11410
GROMMET tail lamp wiring | HX93/HX94
16
53439-79
BULB fender tip lamp | HX93/HX94
17
59082-79
LAMP ASSEMBLY fender tip | HX93/HX94
18
59180-80
LENS fender tip lamp | HX93/HX94
19
59181-80
GASKET fender tip lamp lens | HX93/HX94
20
59211-74A
SIDE TRIM STRIP | HX93/HX94
21
59255-91
REFLECTOR red | HX93/HX94
22
71795-63A
CLAMP | HX93/HX94
23
72029-84
PLUG four terminal | HX93/HX94
24
72037-71
CONNECTOR six socket | HX93/HX94
25
72038-71A
SOCKET single pin (as required) | HX93/HX94
26
72039-71A
PIN single socket | HX93/HX94
27
72041-71
CONNECTOR 6 pin | HX93/HX94
28
72044-71A
CONNECTOR single socket | HX93/HX94
29
72054-84
PLUG RECEPTACLE | HX93/HX94
30
72057-84
PROTECTIVE PLUG w/ sidecar removed | HX93/HX94
31
72275-74
CONNECTOR TAB 2 terminal | HX93/HX94
32
74521-77A
PLUG RECEPTACLE | HX93/HX94
33
74536-77A
PIN single socket | HX93/HX94
34
74539-77A
SOCKET single pin | HX93/HX94
35
87027-85
WIRING HARNESS | HX93/HX94
36
87901-83A
FENDER sidecar (prime) | HX93/HX94
