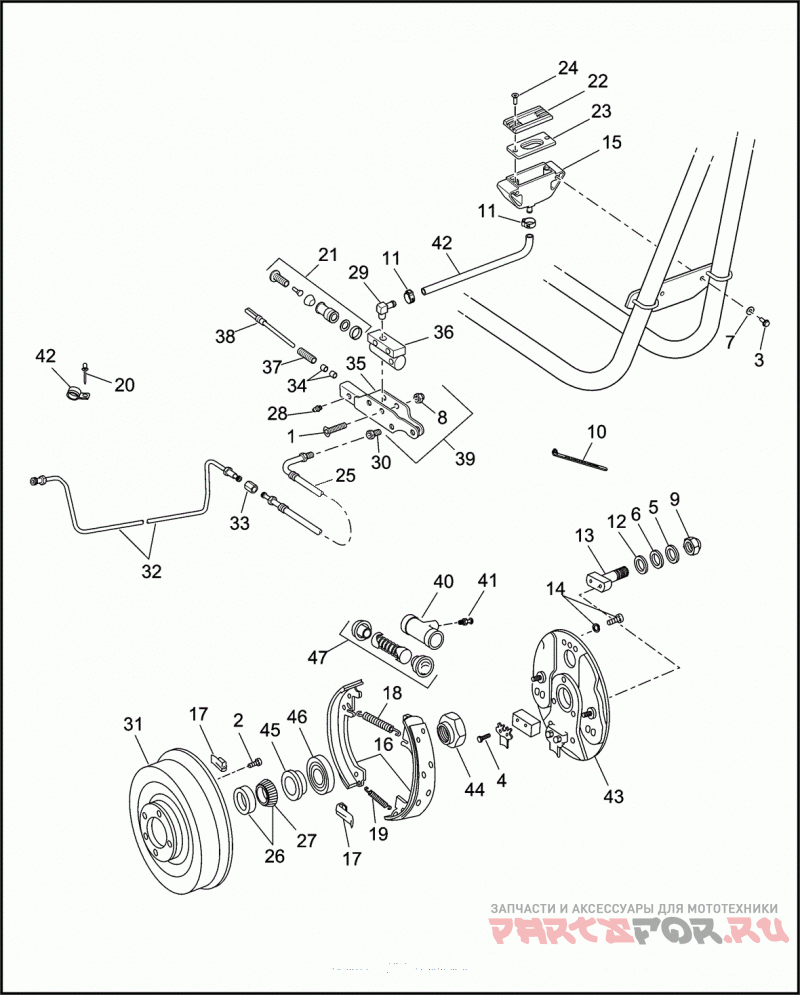

SIDECAR BRAKE - RLE

Harley Davidson RLE HX94 RLE SIDECAR (1994)

Harley Davidson
#oem кодцена
1
1610
SCREW 5/16-24 X 1-1/2 Pozidriv flat countersink hd. (Grade 2) | HX93/HX94
2
1643
SCREW 7/16-14 X 1-1/4 socket flat countersink hd., w/lockpatch | HX93/HX94
3
3473
BOLT No. 10-32 X 1/2 hex hd. (Grade 2) | HX93/HX94
4
4020W
BOLT 5/16-24 X 1-3/8 hex hd. (Grade 5) | HX93/HX94
5
6700B
WASHER 5/8 X 13/16 X 1/32 | HX93/HX94
6
6712B
WASHER 5/8 X 15/16 X 3/32 | HX93/HX94
7
6716
WASHER No. 10 X 1/2 X 3/64 | HX93/HX94
8
7729
LOCKNUT 5/16-24 X 1/4 X 1/2 | HX93/HX94
9
7993
LOCKNUT 5/8-18 X 15/16 | HX93/HX94
10
10006
CABLE STRAP | HX93/HX94
11
10038A
CLAMP | HX93/HX94
12
18268-48
WASHER as required | HX93/HX94
13
41720-58
ANCHOR STUD | HX93/HX94
14
41742-58A
SCREW & LOCKWASHER brake cylinder | HX93/HX94
15
41804-84A
RESERVOIR master cylinder | HX93/HX94
16
41802-58A
SET OF BRAKE SHOES & LININGS | HX93/HX94
17
41835-58
HOLD DOWN spring | HX93/HX94
18
41836-58
BRAKE SHOE SPRING upper | HX93/HX94
19
41837-58
BRAKE SHOE SPRING lower | HX93/HX94
20
4091
SCREW No. 10-24 X 1/2 hex hd., w/washer, self-tapping (zinc) | HX93/HX94
21
42374-77B
REPAIR KIT master cylinder | HX93/HX94
22
45057-82
COVER reservoir | HX93/HX94
23
42455-80
GASKET reservoir | HX93/HX94
24
42534-90
SCREW | HX93/HX94
25
45114-77
HOSE brake line | HX93/HX94
26
48302-85
BEARING brake drum | HX93/HX94
27
48315-60
BEARING CUP brake drum | HX93/HX94
28
83459-09
FITTING lubrication | HX93/HX94
29
63551-82
FITTING reservoir hose | HX93/HX94
30
63609-72
FITTING brake hose | HX93/HX94
31
87002-83
BRAKE DRUM ASSEMBLY | HX93/HX94
32
87029-85
BRAKE LINE | HX93/HX94
33
87032-85
FITTING brake line | HX93/HX94
34
87038-85
BUSHING housing | HX93/HX94
35
87039-85
HOUSING master cylinder | HX93/HX94
36
87040-85
MASTER CYLINDER | HX93/HX94
37
87041-85
SPRING brake rod | HX93/HX94
38
87042-85
ROD brake | HX93/HX94
39
87043-85
MASTER CYLINDER & HOUSING ASSEMBLY | HX93/HX94
40
87071-89
BRAKE CYLINDER wheel (5/8 inch) | HX93/HX94
42
63521-95A
HOSE 5/16 I.D. (rubber) (25 ft. long) | HX93/HX94
43
87672-76
SIDE PLATE | HX93/HX94
44
87706-83
LOCKNUT axle shaft | HX93/HX94
45
87713-83
SPACER | HX93/HX94
46
87714-83
OIL SEAL | HX93/HX94
47
87752-89
REPAIR KIT brake cylinder (5/8 inch) | HX93/HX94
