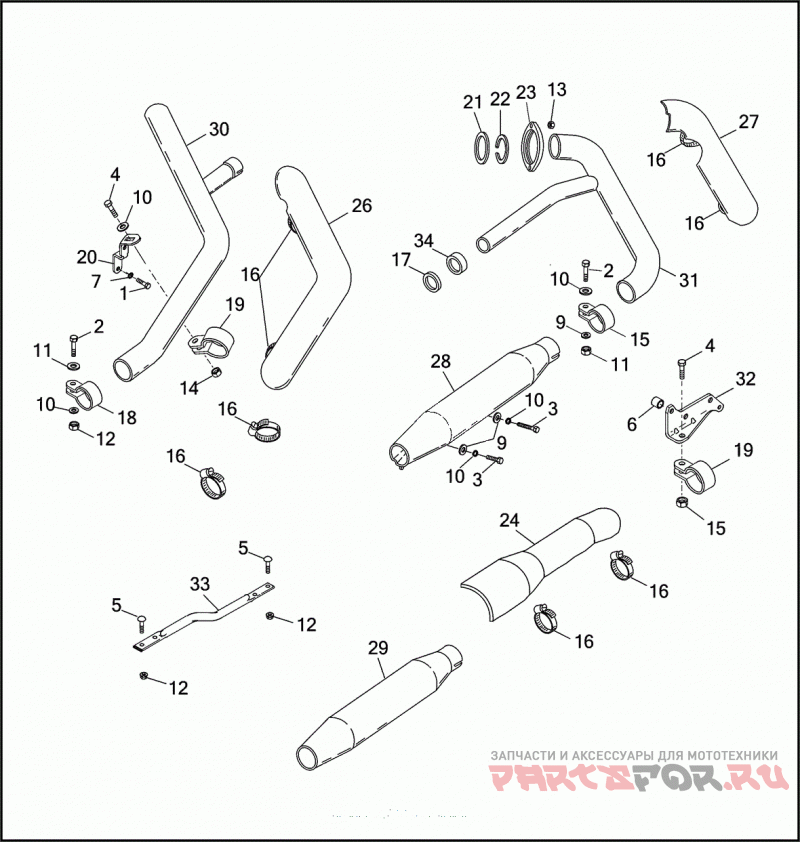

EXHAUST SYSTEM - FXRP

Harley Davidson FXRP 1EDL SUPER GLIDE POLICE (WINDSHIELD) (1994)

Harley Davidson
#oem кодцена
1
2708A
SCREW 5/16-18 X 1 SOCKET HD.
2
2818
BOLT 5/16-18 X 1-1/2 HEX HD. (GRADE 5)
3
4319
BOLT 3/8-24 X 1 HEX HD. (GRADE 5)
4
5414
BOLT 3/8-16 X 7/8 CARRIAGE (GRADE 5)
5
5445W
BOLT 5/16 X 1-1/4 CARRIAGE (GRADE 5)
6
5887
SPACER BRACKET
7
6016
WASHER 11/32 X 11/16 X 1/16
8
6109
WASHER 5/16 X 11/16 X 1/8
9
6302
WASHER 5/16 X 11/16 X 19/32
10
6701
WASHER 3/8 X 13/16 X 1/16
11
6702
WASHER 5/16 X 11/16 X 1/16
12
7531
LOCKNUT 5/16-18 X 9/32 X 1/2 FLANGE
13
7753
NUT 5/16-24 X 1/4 X 1/2 (GRADE 2)
14
7782
LOCKNUT 3/8-24 X 3/8 X 9/16 (GRADE 8)
15
7862
ACORN NUT 3/8-16 (CHROME)
16
9955
CLAMP SHIELDS
17
65782-82
WASHER EXHAUST
18
65276-62
CLAMP MUFFLER
19
65302-82A
CLAMP EXHAUST PIPE
20
65675-87
BRACKET REAR EXHAUST
21
65324-83B
GASKET EXHAUST PORT
22
65325-83A
RETAINING RING EXHAUST PORT
23
65328-83A
CLAMP EXHAUST PORT
24
65377-84
SHIELD FRONT MUFFLER
25
65410-83
SHIELD CROSSOVER (CHROME) (NOT ILLUSTRATED)
26
65702-86
SHIELD REAR EXHAUST (CHROME)
27
65732-86
SHIELD FRONT EXHAUST (CHROME)
28
65747-87
MUFFLER FRONT (CHROME)
29
65657-87
MUFFLER REAR (CHROME)
30
65668-87
EXHAUST PIPE REAR (CHROME)
31
65669-87
EXHAUST PIPE FRONT (CHROME)
32
65670-82B
BRACKET FRONT EXHAUST
33
65674-87
SUPPORT MUFFLER
34
65781-82
Прокладка
