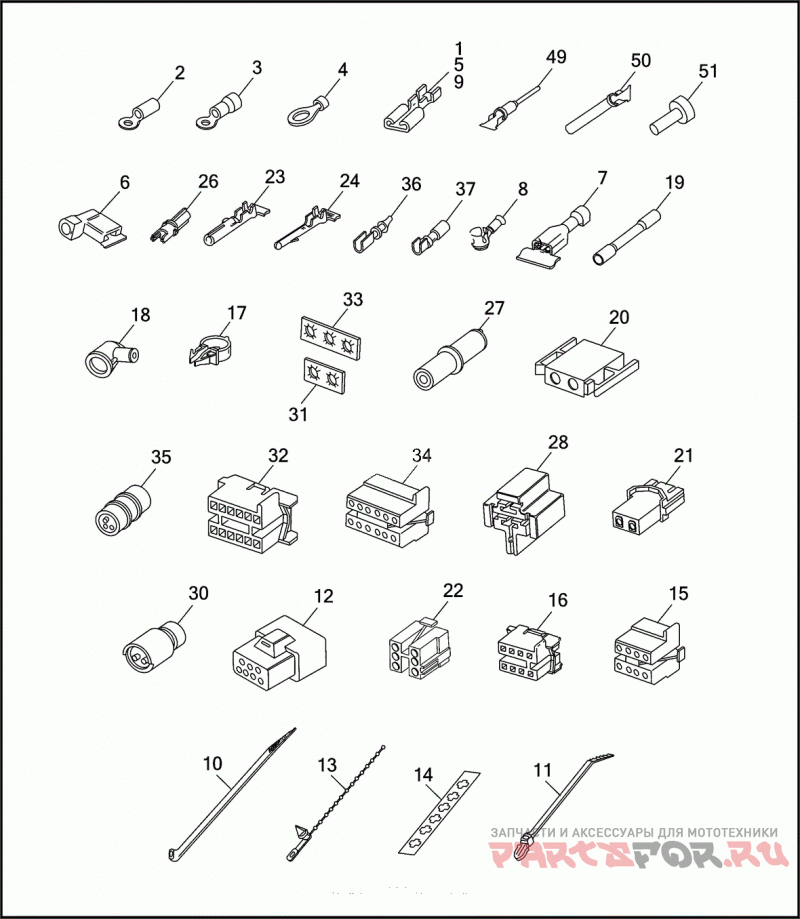

MISCELLANEOUS ELECTRICAL

Harley Davidson FXLR 1ELL SUPER GLIDE LOW RIDER (1994)

Harley Davidson
#oem кодцена
1
9847
TERMINAL FEMALE SPADE
1
9848
TERMINAL FEMALE SPADE
2
9857
TERMINAL RING TYPE, #10 HOLE
3
9862
TERMINAL RING TYPE, #10 HOLE
4
9866
TERMINAL RING TYPE, #10 HOLE
6
9898
TERMINAL FEMALE FLAG, 14-16 WIRE
7
9900
TERMINAL CONNECTOR
8
9905
TERMINAL CAP TYPE, 1/4 INCH DIAMETER
9
9937
TERMINAL FEMALE SPADE, 1/4 INCH SLOT
10
10006
CABLE STRAP (BLACK)
10
10065
CABLE STRAP
11
10073
CABLE STRAP
12
31998-91A
INSULATOR RECEPTACLE HOUSING (MODULE CONNECTOR)
13
70005-70
CABLE STRAP
15
70287-81A
CONNECTOR 8 SOCKET
16
70288-81
CONNECTOR 8-PIN
17
70345-84
RETAINER WIRING HARNESS
18
70578-89
BOOT INSULATING
18
70579-65
BOOT INSULATING
19
70583-93
CONNECTOR SEALED
19
70585-93
CONNECTOR SPLICE, 18-22 GAUGE (RED)
19
70586-93
CONNECTOR SPLICE, 14-16 GAUGE (BLUE)
19
70587-93
CONNECTOR SPLICE, 10-12 GAUGE (YELLOW)
22
72037-71
CONNECTOR 6 SOCKET
23
72038-71A
SOCKET SINGLE PIN
24
72039-71A
PIN SINGLE SOCKET
25
72041-71
CONNECTOR 6-PIN (NOT ILLUSTRATED)
26
72043-71A
CONNECTOR SINGLE PIN
28
72046-79
CONNECTOR SPADE TERMINALS
29
72056-92
CONNECTOR SPADE TERMINALS (NOT ILLUSTRATED)
30
72051-77A
CONNECTOR 3 SOCKET
31
72275-74
CONNECTOR TAB 2 TERMINAL
35
74521-77A
CONNECTOR PIN & SOCKET
36
74536-77A
SOCKET SINGLE PIN
37
74539-77A
PIN SINGLE SOCKET
