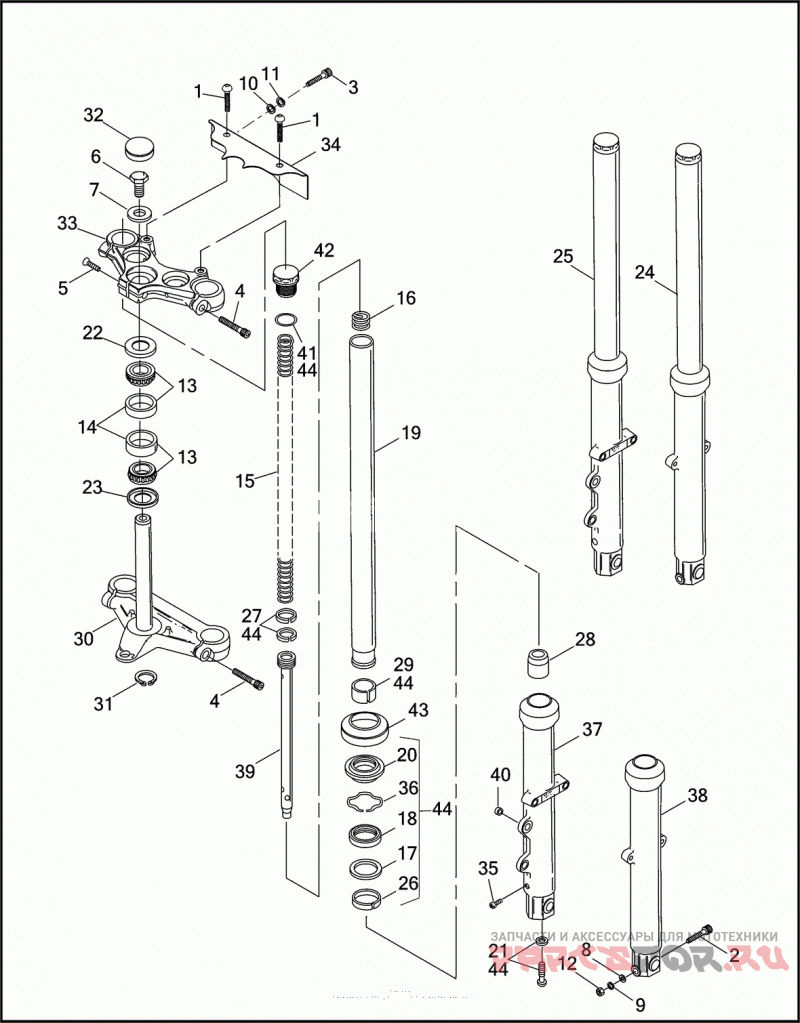

FRONT FORK - FXR

Harley Davidson FXLR 1ELL SUPER GLIDE LOW RIDER (1994)

Harley Davidson
#oem кодцена
1
2582
SCREW 5/16-18 X 3/4 POZIDRIV PAN HD. (GRADE 2)
2
4029A
SCREW 3/8-16 X 2-1/4 SOCKET HD. (BLACK)
3
4091
SCREW NO. 10-24 X 1/2 HEX HD., W/WASHER, SELF-TAPPING (ZINC)
3
4240
SCREW NO. 10-24 X 3/16 HEX HD., W/WASHER
4
4351
SCREW 3/8-16 X 1-1/2 TORX HD., SELF-TAPPING (GRADE 8)
5
4352
SCREW 3/8-16 X 1-1/2 TORX, SELF-TAPPING (GRADE 8)
6
4453
BOLT 1/4-20 X 7/8 HEX HD. SPECIAL WITH TAPPED HOLE
7
6655
WASHER 5/8 X 1-1/2 X 7/64
8
6701
WASHER 3/8 X 13/16 X 1/16
9
7038
LOCKWASHER 3/8
11
7220
LOCKWASHER NO. 10 EXTERNAL TOOTH
12
7783
NUT 3/8-16 X 5/16 X 9/16 (GRADE 2)
13
48300-60
ROLLER BEARING W/CUP
14
48315-60
BEARING CUP
14
45996-87
CAP SLIDER TUBE
15
45376-87
Пружина
16
45374-87
SPRING SLIDER
17
45377-87
SPACER OIL SEAL
18
45378-87
Сальник
19
45381-87
SLIDER TUBE
20
45401-87
SEAL DUST
21
45405-75A
SCREW M8 X 1.25 X 27 HEX SOCKET HD.
22
48361-80
DUST SHIELD UPPER
23
48365-48A
DUST SHIELD LOWER
24
45919-87
FORK SLIDER & TUBE ASSEMBLY RIGHT
25
45920-87
FORK SLIDER & TUBE ASSEMBLY LEFT
26
45461-87
BUSHING UPPER
27
45462-87
RING DAMPER TUBE
28
45463-87
LOWER STOP
29
45465-87
BUSHING SLIDER TUBE
30
45561-87
BRACKET LOWER W/ STEM
31
45611-86
Стопорное кольцо
32
45668-90
CAP FORK STEM
33
45739-87
BRACKET UPPER
34
45750-87
COVER UPPER BRACKET
35
45790-80
DRAIN SCREW W/ WASHER
36
45905-87
RETAINING RING OIL SEAL
37
45921-87
SLIDER ASSEMBLY LEFT
38
45923-87
SLIDER ASSEMBLY RIGHT
39
45924-87
DAMPER TUBE
40
45934-86
Втулка
41
48140-84A
STEERING HEAD LOCK ASSEMBLY (HDI) (NOT ILLUSTRATED)
