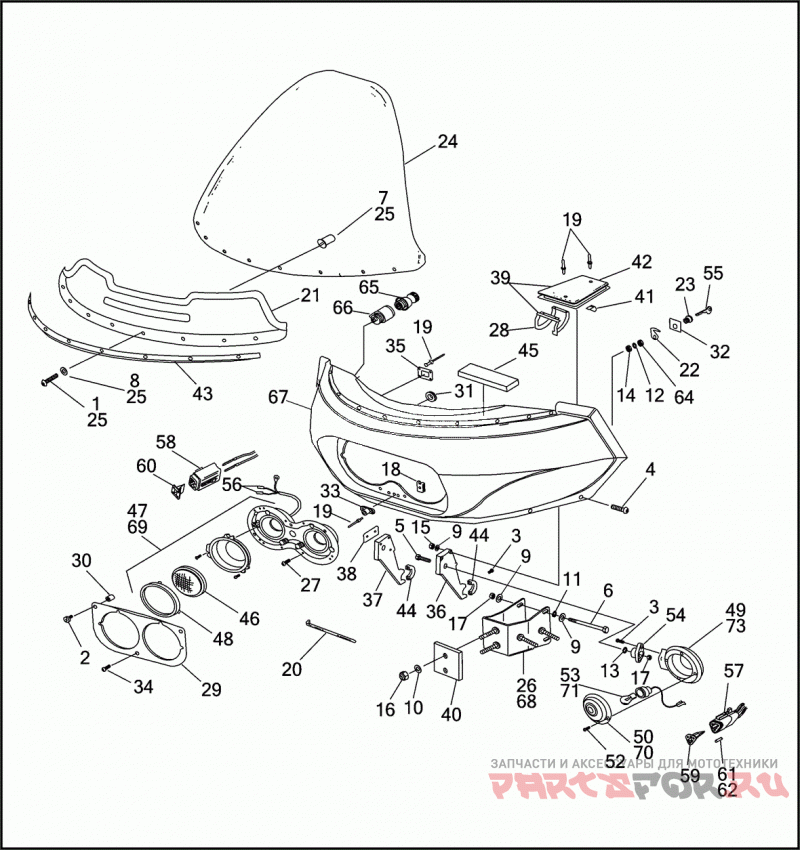

WINDSHIELD, FAIRING & LAMPS - FLTC

Harley Davidson FLTCU 1DML TOUR GLIDE ULTRA CLASSIC (1994)

Harley Davidson
#oem кодцена
1
933
SCREW NO. 10-32 X 15/16 POZIDRIV TRUSS HD. (GRADE 2)
2
2504
SCREW NO. 10-16 X 1-1/8 POZIDRIV OVAL COUNTERSINK HD., SELF-TAPPING
3
2647B
SCREW NO. 10-24 X 3/4 SOCKET HD., SELF-LOCKING
4
2648
SCREW 1/4-20 X 1 POZIDRIV TRUSS HD. (GRADE 2)
5
4411
BOLT 3/8-24 X 1-3/4 HEX HD. (GRADE 5)
6
4435W
BOLT 3/8-24 X 3-1/2 HEX HD. (GRADE 5)
7
5207
WELL NUT
8
6053
WASHER 3/16 X 7/16 X 1/16 NYLON (BLACK)
9
6701
WASHER 3/8 X 13/16 X 1/16
10
6702
WASHER 5/16 X 11/16 X 1/16
12
7128
LOCKWASHER 9/32 INTERNAL TOOTH
13
7130W
LOCKWASHER 3/8 INTERNAL TOOTH
14
7586
JAMNUT 9/32-28 X 1/4
15
7686
LOCKNUT 1/4-20 X 5/16 X 7/16
16
7739
LOCKNUT 5/16-18 X 11/32 X 1/2
17
7775
LOCKNUT 3/8-24 X 7/16 X 9/16
18
8107
CLIP NUT HEADLAMP MOUNTING
19
8692
POP RIVET BLACK ALUMINUM
20
10006
CABLE STRAP
20
10065
CABLE STRAP
21
14224-89
DECAL in.HARLEY-DAVIDSONin. (SILVER)
22
53583-92
CAM HOOK
23
53848-00
LOCK FAIRING
24
58009-89A
WINDSHIELD ASSEMBLY 2 INCHES TALL. W/ 1, 7, 8, 21 & 43
24
58016-89A
WINDSHIELD ASSEMBLY STANDARD W/ 1, 7, 8, 21 & 43
24
58453-89A
WINDSHIELD ASSEMBLY 3 INCHES SHORT W/ 1, 7, 8, 21 & 43
25
58031-80
WINDSHIELD MOUNTING KIT W/ 1, 7 & 8
26
58400-94
BRACKET MOUNTING, UPPER
27
58402-80
SCREW HEADLAMP MOUNTING
28
58459-80
HINGE COVER
29
58460-80
TRIM PLATE HEADLAMP
30
58461-80
Проставка
31
58467-94
GROMMET SPLIT
31
58468-94
GROMMET SPLIT
32
58466-80
Шайба
33
58473-80
MOUNTING BRACKET
34
58477-80
SCREW HEADLAMP TRIM PLATE
35
58482-86
MOUNTING PLATE
36
58484-89
SUPPORT BRACKET LEFT
37
58486-89
SUPPORT BRACKET RIGHT
38
58488-84
Прокладка
39
58712-79A
COVER RIGHT (BLACK)
39
58713-79A
COVER LEFT (BLACK)
40
58714-79
PAD RUBBER
41
58715-79
LATCH COVER
42
58716-79
GASKET COVER
43
58717-79
FOAM TAPE WINDSHIELD
44
58826-89
CLAMP MOUNTING BRACKET
45
47403-75A
Подушка изолирующая
46
67692-92
SEALED BEAM UNIT 5-3/4 INCHES
47
67775-94
HEADLAMP ASSEMBLY W/ HOUSING, 5-3/4 INCHES
48
67746-85
Стопорное кольцо
49
68766-94
LAMP W/ WIRE
50
68440-86
LENS TURN SIGNALS (AMBER)
51
53575-93
LOCK SET COMPLETE VEHICLE (NOT ILLUSTRATED)
52
68452-86
Винт
53
68168-89A
BULB TURN SIGNAL
54
68519-68A
MOUNTING BRACKET
56
72039-71A
PIN SINGLE SOCKET
57
72113-94BK
PLUG 3-WAY SOCKET
58
72114-94BK
PLUG 4-WAY SOCKET
59
72153-94
SECONDARY LOCK 3-WAY SOCKET
60
72154-94
SECONDARY LOCK 4-WAY SOCKET
61
72191-94
TERMINAL SOCKET
62
72195-94
SEAL PIN
64
84850-92
NUT 3/4-24 X 5/32
65
91808-89
ELEMENT CIGARETTE LIGHTER
66
91812-89A
SOCKET CIGARETTE LIGHTER
67
58720-84
FAIRING (PRIMED)
