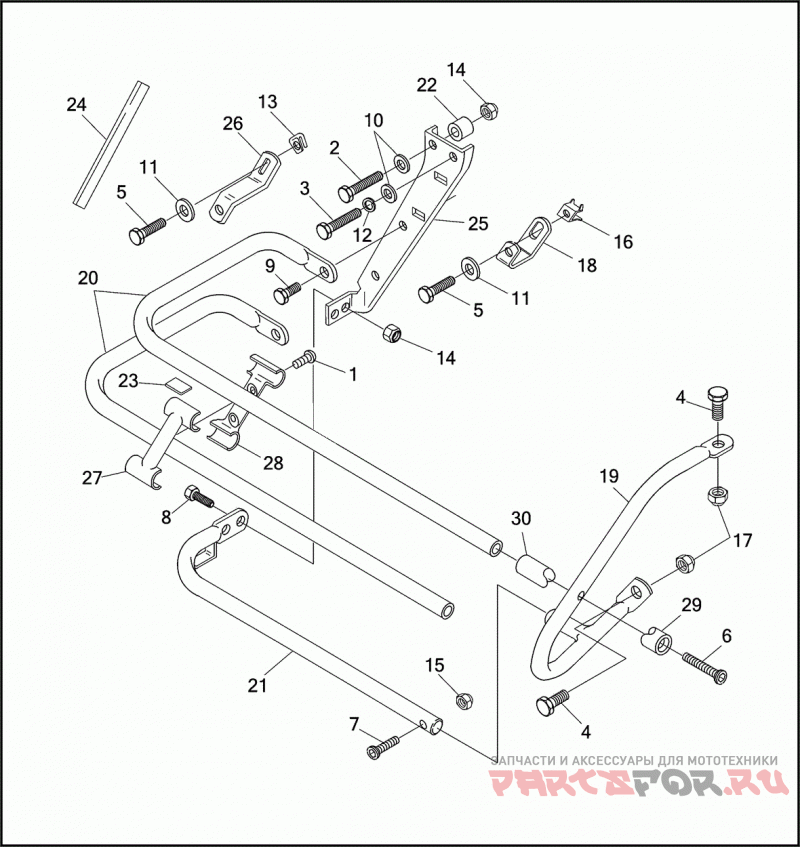

SADDLEBAG GUARDS

Harley Davidson FLTCU 1DML TOUR GLIDE ULTRA CLASSIC (1994)

Harley Davidson
#oem кодцена
1
1750
SCREW NO. 10-24 X 1/2 TORX FLAT HD.
2
2818
BOLT 5/16-18 X 1-1/2 HEX HD. (GRADE 5)
3
2882W
SCREW 5/16-18 X 5/8 HEX HD. (GRADE 5)
4
4713W
BOLT 3/8-16 X 3/4 HEX HD. (GRADE 5)
5
3574
SCREW 1/4-20 X 3/4 FLANGE
6
3584
SCREW 5/16-18 X 2-1/2 SOCKET BUTTON HD. (GRADE 8)
7
3601
SCREW 1/4-20 X 1-1/4 KNURLED HD. (GRADE 8)
8
3987
BOLT 5/16-18 X 3/4 HEX HD. (GRADE 5)
9
3974HW
BOLT 5/16-24 X 3/4 HEX HD. (GRADE 5)
10
6702
WASHER 5/16 X 11/16 X 1/16
11
6703
WASHER 1/4 X 5/8 X 1/16
12
7041
LOCKWASHER 5/16
13
7490
CLIP NUT
14
7531
LOCKNUT 5/16-18 X 9/32 X 1/2 FLANGE
15
7686
LOCKNUT 1/4-20 X 5/16 X 7/16
16
7743A
CLIP NUT
17
7667
NUT 3/8-16 X 9/32 X 9/16 NYLON INSERT
18
47449-93
BRACKET FRONT
19
49203-93
GUARD LEFT
19
49202-93
GUARD RIGHT
20
49193-93
GUARD SADDLEBAGS
21
49194-85
SUPPORT SADDLEBAG, LEFT
21
90781-93
SUPPORT SADDLEBAG, RIGHT
22
59060-92
Проставка
23
91054-07
Подушка изолирующая
24
90594-85A
Подушка
25
90718-79C
SUPPORT BRACKET LEFT
25
90720-79C
SUPPORT BRACKET RIGHT
26
90801-93
BRACKET SADDLEBAG MOUNTING
27
90934-93A
CLAMP REAR LEFT, OUTER
27
90946-93A
CLAMP REAR RIGHT, OUTER
28
90935-93A
CLAMP REAR RIGHT, INNER
28
90936-93A
CLAMP REAR LEFT, INNER
29
90943-93A
MOUNT GUARD
30
90945-93A
MOUNT GUARD
