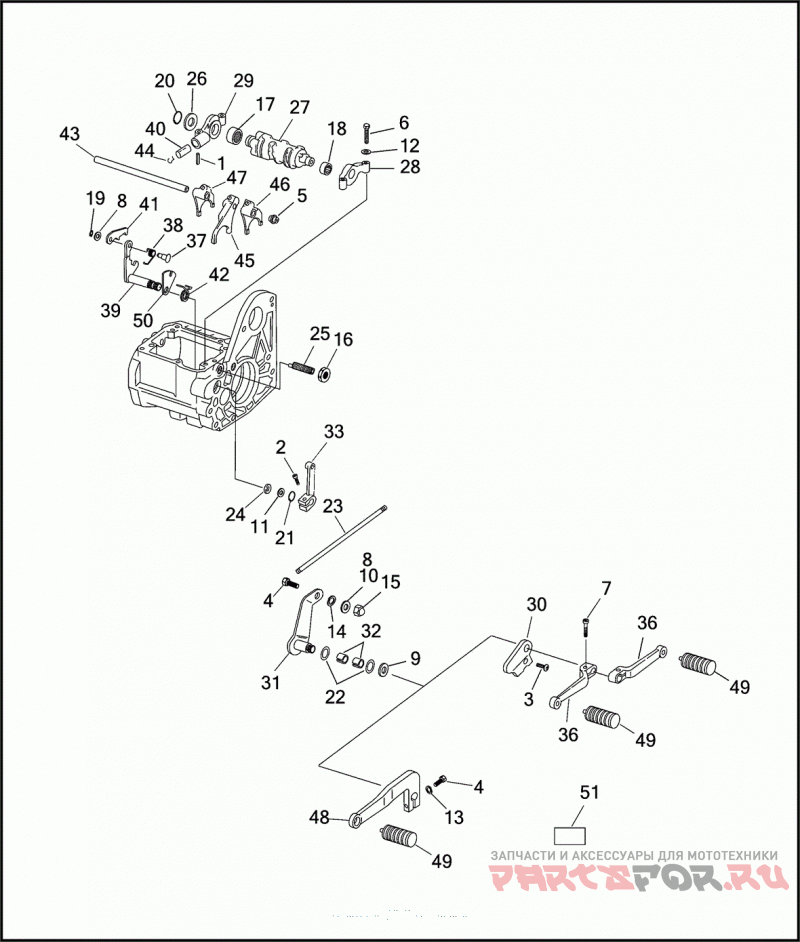

GEAR SHIFTER

Harley Davidson FLSTN 1BNL HERITAGE SOFTAIL NOSTALGIA (1994)

Harley Davidson
#oem кодцена
1
601
Палец
2
856A
SCREW 5/16-24 X 1 SOCKET HD. (GRADE 8)
3
3691
SCREW NO. 8-32 X 5/8 SOCKET BUTTON HD.
4
4017
BOLT 5/16-18 X 1 HEX HD. (GRADE 5)
5
3784
SET SCREW 1/2-20 X 1/2 SOCKET HD., W/LOCKPATCH
6
3993
BOLT 1/4-20 X 1-1/4 HEX HD. (GRADE 5)
8
6016
WASHER 11/32 X 11/16 X 1/16
9
6057
WASHER 1/2 X 7/8 X 3/16, NYLON
10
6302
WASHER 5/16 X 11/16 X 19/32
11
6497HW
WASHER 29/64 X 1-1/8 X 1/16
12
6736
WASHER 9/32 X 5/8 X 1/16
14
7230
LOCKWASHER 1/4 EXTERNAL TOOTH
15
7507
ACORN NUT 5/16-18 X 11/16 X 1/2 (GRADE 2) (CHROME)
16
7515
JAMNUT 7/16 X 1/4 X 11/16 (GRADE 2)
17
9114
Игольчатый подшипник
18
9115
Игольчатый подшипник
19
11016
Стопорное кольцо
20
11083
Стопорное кольцо
21
11150
Стопорное кольцо
22
11191
Уплотнительное кольцо
23
11729
Шпилька
24
12045
Уплотнение
25
33119-79B
ADJUSTING SCREW SHIFTER ARM
26
33205-80
THRUST WASHER 0.017 THICK (AS REQUIRED)
26
33206-80
THRUST WASHER 0.020 THICK (AS REQUIRED)
26
33207-80
THRUST WASHER 0.022 THICK (AS REQUIRED)
26
33208-80
THRUST WASHER 0.025 THICK (AS REQUIRED)
26
33209-80
THRUST WASHER 0.028 THICK (AS REQUIRED)
26
33210-80
THRUST WASHER 0.031 THICK (AS REQUIRED)
26
33211-80
THRUST WASHER 0.035 THICK (AS REQUIRED)
26
33212-80
THRUST WASHER 0.039 THICK (AS REQUIRED)
27
33320-79D
SHIFTER CAM
28
33326-79A
SUPPORT SHIFTER CAM-LEFT
29
33332-79
SUPPORT SHIFTER CAM-RIGHT
30
33642-89
COVER ASSEMBLY SHIFTER (CHROME)
31
33668-90C
SHIFT LEVER CHROME
32
33714-90B
Втулка
33
33715-85A
LEVER SHIFTER ROD
34
33729-82A
BALL JOINT (NOT ILLUSTRATED)
35
33871-85B
END SHIFTER ROD (NOT ILLUSTRATED)
36
33895-82D
SHIFTER LEVER CHROME
37
34084-86A
LEVER, shifter shaft, w/#32 & 33
38
34083-79
SPRING SHIFTER SHAFT LEVER
39
34084-86A
LEVER SHIFTER SHAFT, W/ 37 & 38
40
34085-79A
CAM FOLLOWER
41
34086-79
PAWL SHIFTER CAM
42
34087-79A
SPRING SHIFTER SHAFT
43
34088-87A
SHAFT SHIFTER FORK
44
34089-79
Пружина
45
34191-79E
SHIFTER FORK
46
34193-79E
SHIFTER FORK
47
34195-79E
SHIFTER FORK
49
34611-65A
PEG SHIFT LEVER
50
35068-79
Пластина
51
14270-92
DECAL SHIFT PATTERN (JAPAN)
