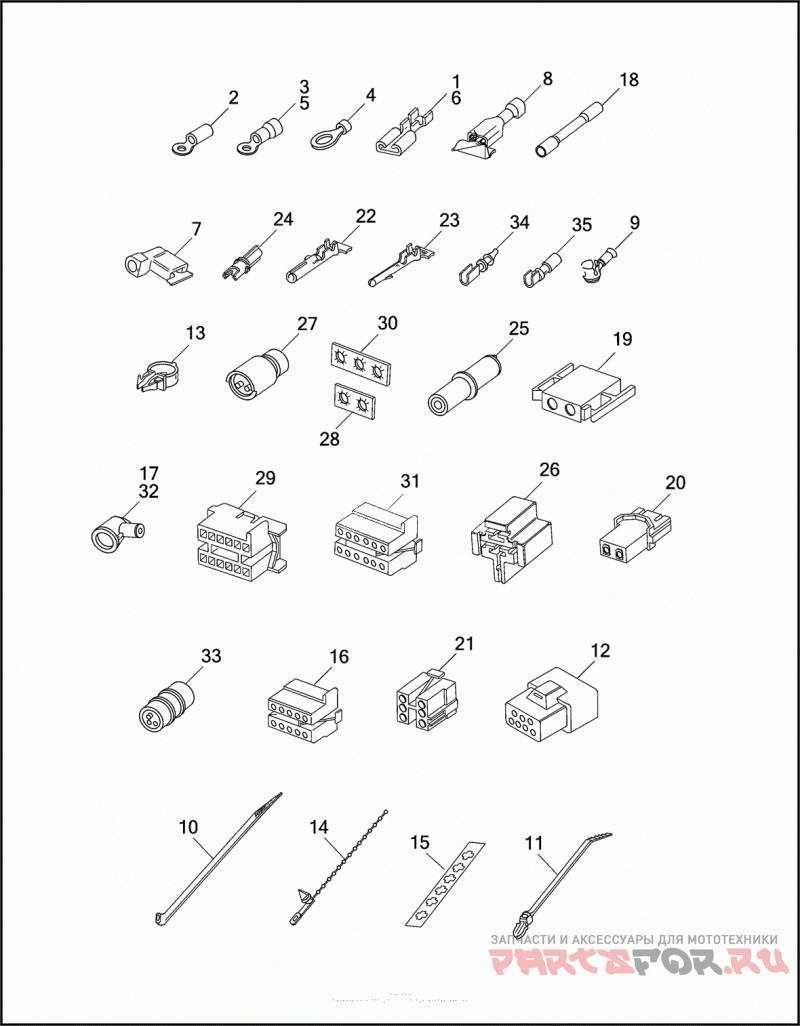

MISCELLANEOUS ELECTRICAL

Harley Davidson FLSTF 1BML FAT BOY (1994)

Harley Davidson
#oem кодцена
1
9852
TERMINAL 45 DEGREE SPADE
2
9856
TERMINAL RING TYPE, #6 HOLE
2
9857
TERMINAL RING TYPE, #10 HOLE
2
9860
TERMINAL RING TYPE, 3/8 INCH DIAMETER HOLE
3
9862
TERMINAL RING TYPE, #10 HOLE
3
9863
TERMINAL RING TYPE, 1/4 DIAMETER HOLE
3
9809
TRIM RING,PRE-INSULT
4
9866
TERMINAL RING TYPE, #10 HOLE
5
9871
TERMINAL RING TYPE, #6 HOLE
6
9875
TERMINAL FEMALE SPADE, 5/16 INCH SLOT
7
9898
TERMINAL FEMALE FLAG, 14-16 WIRE
8
9900
TERMINAL CONNECTOR
9
9905
TERMINAL CAP TYPE, 1/4 INCH DIAMETER
10
10006
CABLE STRAP BLACK
10
10039
CABLE STRAP
10
10065
CABLE STRAP
11
10073
CABLE STRAP
12
31998-91A
INSULATOR RECEPTACLE HOUSING (MODULE CONN.)
13
56073-83
Седло
14
70005-70
CABLE STRAP
16
70293-87A
CONNECTOR TEN SOCKET
17
70578-89
BOOT INSULATING
17
70579-65
BOOT INSULATING
18
70585-93
CONNECTOR SPLICE, 18-22 GAUGE (RED)
18
70586-93
CONNECTOR SPLICE, 14-16 GAUGE (BLUE)
18
70587-93
CONNECTOR SPLICE, 10-12 GAUGE (YELLOW)
21
72037-71
CONNECTOR 6 SOCKET
22
72038-71A
SOCKET SINGLE PIN
23
72039-71A
PIN SINGLE SOCKET
24
72043-71A
CONNECTOR SINGLE PIN
25
72044-71A
CONNECTOR SINGLE SOCKET
26
72046-79
CONNECTOR SPADE TERMINALS
27
72051-77A
CONNECTOR 3 SOCKET
31
72278-74A
CONNECTOR 12 SOCKET
32
74412-91
BOOT MODULE HARNESS
33
74521-77A
CONNECTOR PIN AND SOCKET
34
74536-77A
SOCKET SINGLE PIN
35
74539-77A
PIN SINGLE SOCKET
