ELECTRONIC IGNITION SYSTEM для мотоциклов Harley Davidson FLSTF 1BML FAT BOY (1994) (1994)

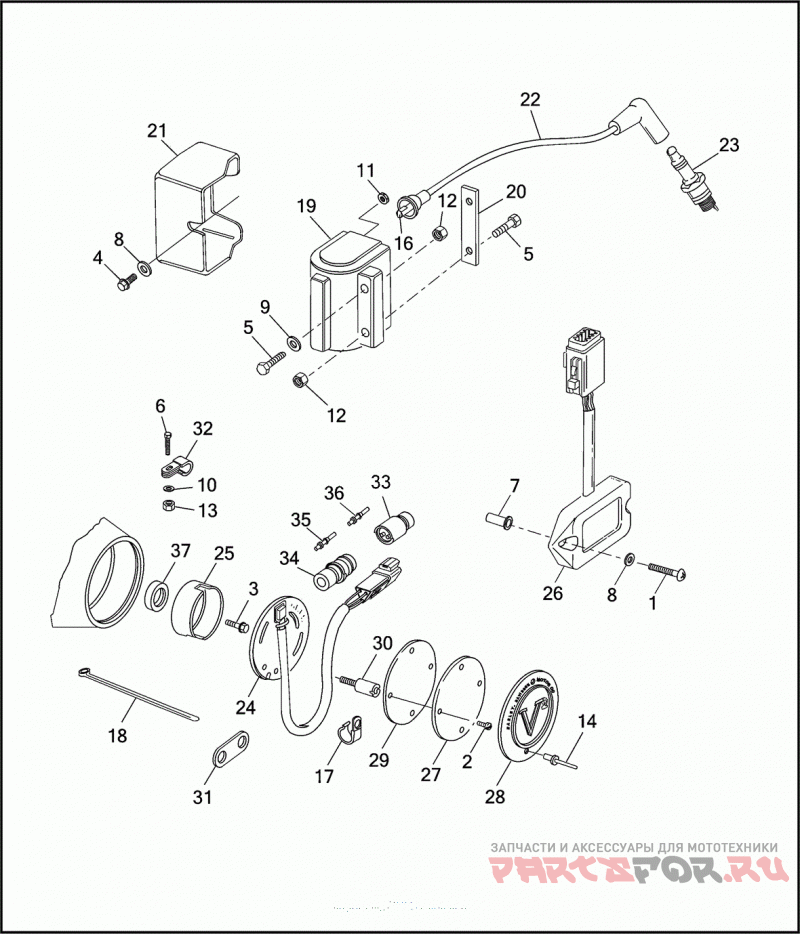

ELECTRONIC IGNITION SYSTEM

Harley Davidson FLSTF 1BML FAT BOY (1994)

oem код

название

цена

933

SCREW NO. 10-32 X 15/16 POZIDRIV TRUSS HD. (GRADE 2)

1601

SCREW NO. 8-32 X 1/2 POZIDRIV FLAT COUNTERSINK HD. (GRADE 2)

2611C

BOLT NO. 10-32 X 3/4 HEX HD., W/WASHER (GRADE 5)

3602A

SCREW NO. 10-32 X 1/2 SELF-TAPPING

3993

BOLT 1/4-20 X 1-1/4 HEX HD. (GRADE 5)

4718A

SCREW 1/4-20 X 1-1/2 KNURLED HD., W/LOCKPATCH

5207

WELL NUT

6716

WASHER NO. 10 X 1/2 X 3/64

7036

WASHER 1/4 X 31/64 X 1/16

7041

LOCKWASHER 5/16

7629

NUT NO. 10-32 X 3/8 KEPS

7686

LOCKNUT 1/4-20 X 5/16 X 7/16

7753

NUT 5/16-24 X 1/4 X 1/2 (GRADE 2)

8699

RIVET TIMER COVER

9881

ADAPTOR TERMINAL (NOT SHOWN)

9908

TERMINAL SPARK PLUG CABLE

Зажим

CABLE STRAP

CABLE STRAP

Катушка зажигания

NUT PLATE

IGNITION COIL COVER KIT CHROME

31983-71C

SPARK PLUG CABLE REAR CYLINDER

31985-91A

SPARK PLUG CABLE FRONT CYLINDER

32400-80B

SENSOR ASSEMBLY W/O RECEPTACLE

Ротор

IGNITION MODULE

TIMER COVER INNER

TIMER COVER

GASKET TIMER COVER

SCREW TIMER PLATE

RETAINER SENSOR WIRE

BRACKET SPARK PLUG CABLE

RECEPTACLE 3-WAY

PLUG 3-WAY SENSOR

PIN SINGLE SOCKET

SOCKET SINGLE PIN

Сальник
