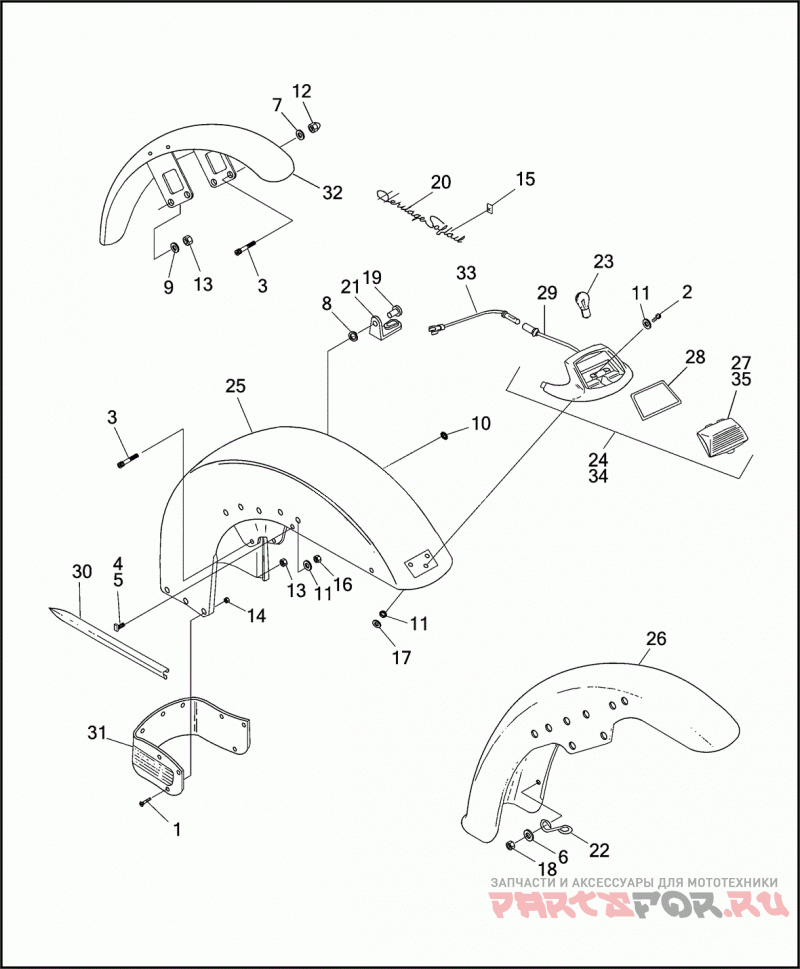

FRONT FENDERS

Harley Davidson FLSTC 1BJL HERITAGE SOFTAIL CLASSIC (1994)

Harley Davidson
#oem кодцена
1
2531
SCREW NO. 4-40 X 5/16 POZIDRIV PAN HD. (GRADE 2)
2
2604
SCREW NO. 10-32 X 1/2 POZIDRIV PAN HD. (GRADE 2)
3
3485A
SCREW 5/16-18 X 1-3/4 KNURLED HD. (GRADE 8)
4
3560WA
BOLT NO. 10-24 X 3/8
5
3561WC
BOLT NO. 10-24 X 3/8
8
7036
WASHER 1/4 X 31/64 X 1/16
11
7220
LOCKWASHER NO. 10 EXTERNAL TOOTH
13
7531
LOCKNUT 5/16-18 X 9/32 X 1/2 FLANGE
14
7600
NUT NO. 4-40 KEPS
15
7613A
PUSHNUT
16
7624
LOCKNUT NO. 10-24 X 1/4 X 3/8
17
7629
NUT NO. 10-32 X 3/8 KEPS
19
8505
заклёпка
20
14142-86A
TRIM in.HERITAGE SOFTAILin.
21
38622-87
GUIDE SPEEDOMETER CABLE
23
53439-79
BULB FENDER TIP LAMP
24
59082-79
LAMP ASSEMBLY
25
59129-86A
FENDER PRIME
27
59180-80
LENS FENDER LAMP (AMBER)
28
59181-80
GASKET FENDER LAMP LENS
29
59197-87
WIRE ASSEMBLY FENDER LAMP
30
59211-74A
SIDE TRIM
31
59235-86
TRIM SKIRT LOWER (BLACK)
33
70196-86
WIRE ASSEMBLY FENDER LAMP
34
68594-84
LAMP ASSEMBLY (HDI)
35
59182-84
LENS FENDER LAMP (WHITE) (HDI)
