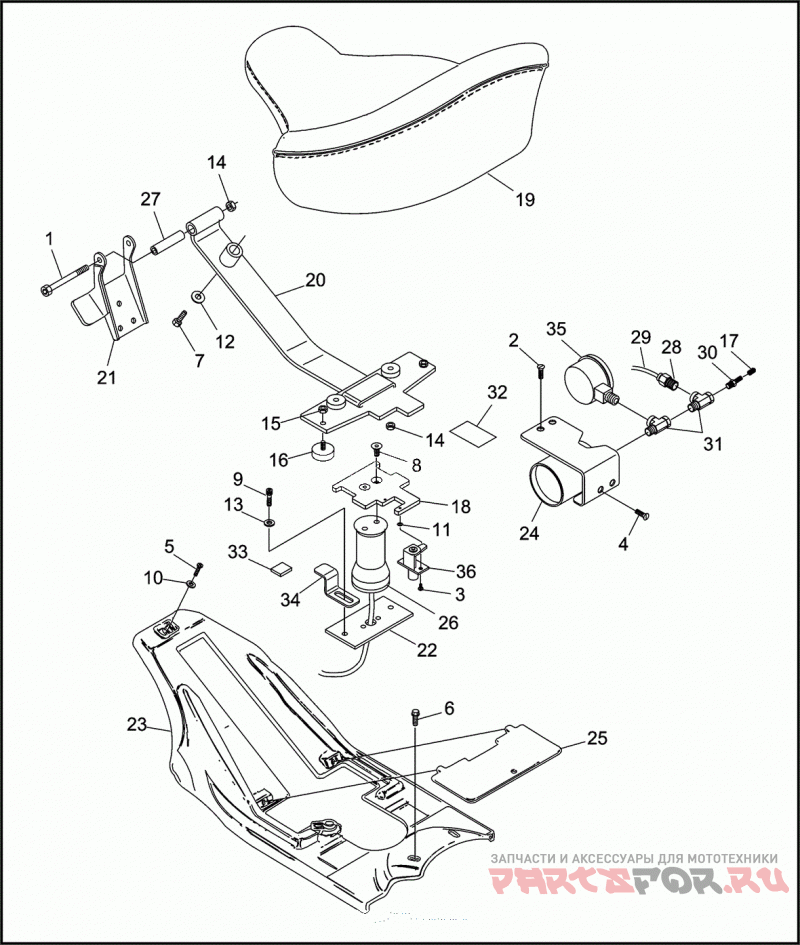

SEAT - AIR CUSHION

Harley Davidson FLHTP-FRG DF94 ELECTRA GLIDE STANDARD POLICE (FRG/WND) (1994)

Harley Davidson
#oem кодцена
1
894
SCREW | DA94/DF94
2
2443
SCREW No. 10-24 X 3/8 oval hd. | DA94/DF94
3
2585
SCREW No. 8-32 X 5/16 Pozidriv pan hd. (Grade 2) | DA94/DF94
4
2592
SCREW No. 10-24 X 1/2 Pozidriv pan hd. (Grade 2) | DA94/DF94
5
2774
SCREW 1/4-20 X 5/8 Pozidriv pan hd. (Grade 2) | DA94/DF94
6
2824W
SCREW 5/16-24 X 9/16 Phillips hd. | DA94/DF94
6
3676
SCREW 5/16-18 X 5/8 TORX pan hd. | DA94/DF94
7
2887WA
SCREW 5/16-18 X 1-3/4 hex hd. (Grade 5) | DA94/DF94
8
2927
SCREW 1/4-20 X 1/2 socket flat hd. | DA94/DF94
9
3255
SCREW 1/4 X 5/8 knurled hd., self-tapping (Grade 8) | DA94/DF94
10
6109
WASHER 5/16 X 11/16 X 1/8 | DA94/DF94
11
6192
WASHER No. 8 X 7/16 X 3/64 | DA94/DF94
12
6702
WASHER 5/16 X 11/16 X 1/16 | DA94/DF94
13
6703
WASHER 1/4 X 5/8 X 1/16 | DA94/DF94
14
7531
LOCKNUT 5/16-18 X 9/32 X 1/2 flange | DA94/DF94
15
7716
LOCKNUT 1/4-20 X 7/16 flange | DA94/DF94
16
11472
BUMPER rubber | DA94/DF94
17
41123-79
VALVE CAP | DA94/DF94
18
49021-94
TOP PLATE air spring | DA94/DF94
19
52242-83E
SEAT | DA94/DF94
20
52249-94
BRACKET seat support | DA94/DF94
21
52256-94A
BRACKET seat front | DA94/DF94
22
52261-94
BOTTOM PLATE air spring | DA94/DF94
23
52262-94
TRIM PANEL ASSEMBLY seat, w/ 52273-93 | DA94/DF94
24
52266-94A
RESERVOIR air, w/ bracket | DA94/DF94
25
52273-93
TRIM PANEL battery | DA94/DF94
26
52282-94C
AIR SPRING ASSEMBLY w/ 54300-94 & 54301-94A | DA94/DF94
27
53458-94
BUSHING | DA94/DF94
28
54300-94
FITTING quick release | DA94/DF94
29
54301-94A
HOSE air spring | DA94/DF94
30
54316-83A
AIR VALVE ASSEMBLY w/ cap | DA94/DF94
31
54326-94
FITTING tee | DA94/DF94
32
61067-94
DECAL air pressure | DA94/DF94
33
66004-93
PAD | DA94/DF94
34
66112-94A
BRACKET battery hold down | DA94/DF94
35
75059-94
GAUGE air pressure | DA94/DF94
36
90671-94
LATCH ASSEMBLY seat | DA94/DF94
