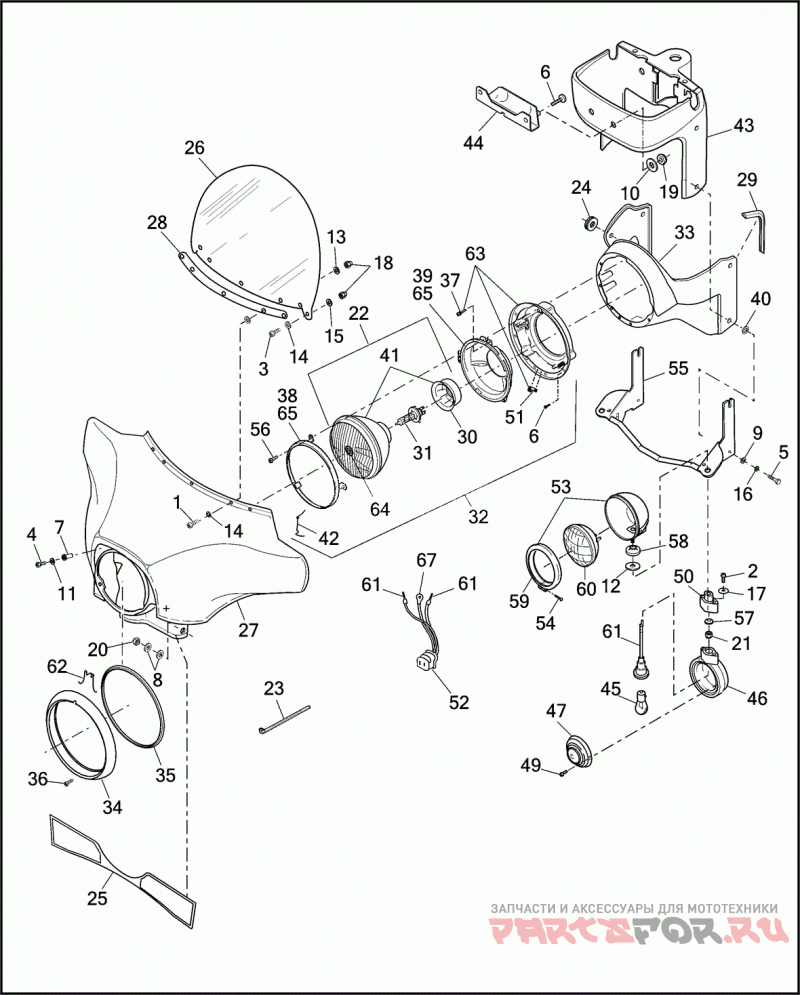

WINDSHIELD FAIRING & LAMPS - FLHTP

Harley Davidson FLHTP 1DFL ELECTRA GLIDE STANDARD POLICE (FAIRING) (1994)

Harley Davidson
#oem кодцена
1
2432
SCREW NO. 12-24 X 7/8 PHILLIPS TRUSS HD. (BLACK)
2
2647B
SCREW NO. 10-24 X 3/4 SOCKET HD., SELF-LOCKING
3
2726A
Винт
4
2806
SCREW NO. 6-32 X 3/4 POZIDRIV PAN HD. (GRADE 2)
5
4036
BOLT 5/16-24 X 1-1/2 HEX HD. (GRADE 5)
7
5210
WELL NUT
8
6036
WASHER 17/64 X 1 X 1/16
9
6702
WASHER 5/16 X 11/16 X 1/16
11
6717
WASHER NO. 6 X 3/8 X 3/64
12
6072
WASHER 3/8 X 1 1/4 X 5/64
13
7008
Шайба
14
7017
WASHER 17/64 X 33/64 X 5/64 (BLACK)
15
7018
WASHER 17/64 X 37/64 X 5/64 (BLACK)
16
7041
LOCKWASHER 5/16
17
7069
LOCKWASHER NO. 10
18
7653
ACORN NUT NO. 12-24 X 7/16 X 3/8 (BLACK)
20
7686
LOCKNUT 1/4-20 X 5/16 X 7/16
21
7778
LOCKNUT 3/8-16 X 7/16 X 9/16
22
68342-05A
LENS ASSEMBLY 7 IN, WITH 67668-05, 68329-03 AND 68390-05 (DOMESTIC)
23
10006
CABLE STRAP
25
14128-86A
TRIM LOWER FAIRING
26
58187-86
WINDOW FAIRING
27
58198-86
FAIRING OUTER (PRIME)
28
58247-86
CUSHION TAPE OUTER FAIRING
31
68329-03
BULB 12V (HALOGEN)
32
67702-81C
HEADLAMP ASSEMBLY complete, w/ 22, 30, 31, 34, 36, 38, 39, 51, 56, 62, 63, 64 & 65
34
67712-83B
DOOR CHROME
35
67716-60C
GASKET HEADLAMP DOOR (USED W/ 67702-81A)
36
67718-60A
SCREW NO. 8-14 X 1/2 PHILLIPS HD. SELF-TAPPING
37
67724-71
ADJUSTING SCREW HEADLAMP
38
67001-08
RETAINING RING KIT, headlamp, w/ 67721-48 & 67732-48 (domestic)
39
67001-08
RETAINING RING KIT, headlamp, w/ 67721-48 & 67732-48 (domestic)
41
67755-81A
HEADLAMP W/ BOOT (USED W/ 67702-81A)
42
67780-60A
BOTTOM SPRING HEADLAMP DOOR
45
68168-89A
BULB TURN SIGNAL
46
68766-94
LAMP W/ WIRE, TURN SIGNAL, 12V (AMBER)
47
68440-86
LENS TURN SIGNAL (AMBER)
49
68452-86
Винт
50
68519-68A
MOUNTING BRACKET
52
68808-94
CONNECTOR HEADLAMP, W/ WIRES (NOT ILLUSTRATED)
53
68663-64G
PURSUIT LAMP ASSEMBLY RED
53
68665-84F
PURSUIT LAMP ASSEMBLY BLUE
54
68672-38
SCREW AUXILIARY LAMP MOLDING
55
68684-86
BRACKET AUXILIARY LAMP
56
67721-48
SCREW HEADLAMP RETAINER RING
57
68720-62
CLAMP BLOCK PURSUIT LAMPS
58
68721-62
SWIVEL BLOCK
59
68725-62A
MOLDING PURSUIT LAMP
60
68727-64D
SEALED UNIT PURSUIT LAMP (RED)
60
68728-64C
SEALED UNIT PURSUIT LAMP (BLUE)
61
72039-71A
TERMINAL PIN
61
72191-94
TERMINAL SOCKET
62
67778-60A
TOP SPRING HEADLAMP DOOR
63
67728-02A
BUCKET ASSEMBLY HEADLAMP, W/ 67724-71 & 67782-60A (USED W/ 67702-81C)
64
67668-05
MEDALLION (USED W/ 67702-81C)
65
67001-08
RETAINING RING KIT HEADLIGHT, W/ 67721-48, 67726-08 & 67732-08 (REPLACES 67726-71A & 67732-71B)
66
68690-69
CLIP WIRE (NOT ILLUSTRATED)
67
9857
TERMINAL RING TYPE
