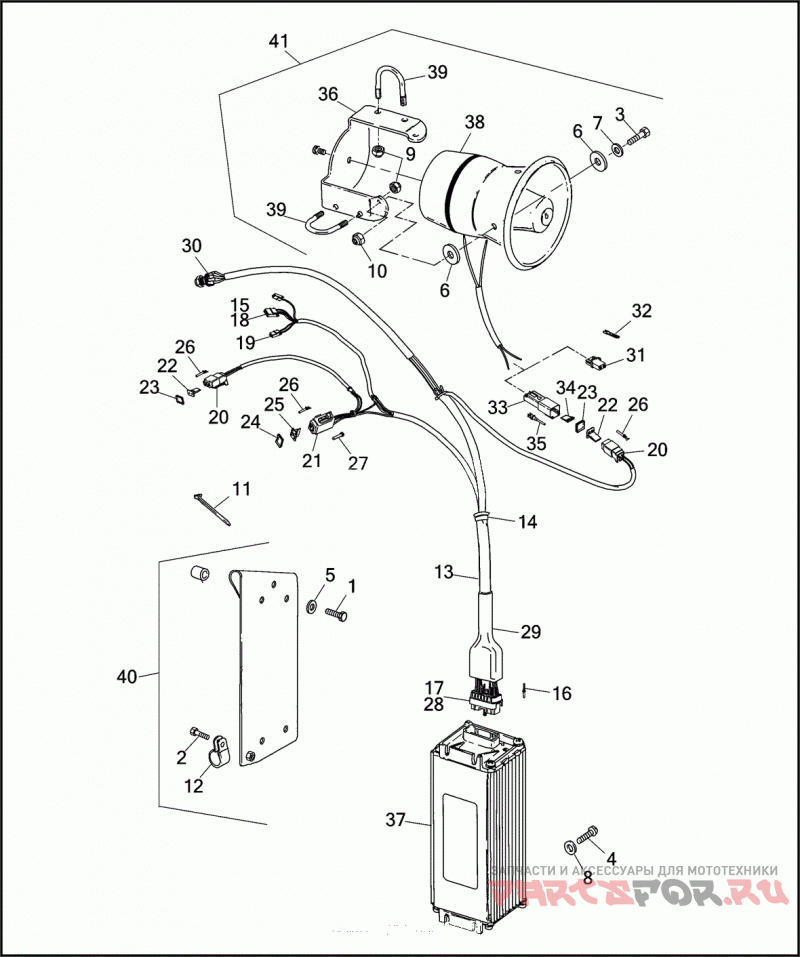

SIREN & AMPLIFIER

Harley Davidson FLHTP 1DFL ELECTRA GLIDE STANDARD POLICE (FAIRING) (1994)

Harley Davidson
#oem кодцена
1
2871W
BOLT 5/16-18 X 1-1/4 HEX HD. (GRADE 5)
2
3576
SCREW 5/16-18 X 1/2 HEX HD., W/WASHER.
3
3787
BOLT 1/4-20 X 3/4 HEX HD. (GRADE 5)
4
4365
SCREW 1/4-20 X 1/2 SOCKET BUTTON HD. (GRADE 8)
6
6036
WASHER 17/64 X 1 X 1/16
7
6237
WASHER 5/16 X 1-1/8 X 5/64
9
7531
LOCKNUT 5/16-18 X 9/32 X 1/2 FLANGE
10
7716
LOCKNUT 1/4-20 X 7/16 FLANGE
11
10006
CABLE STRAP
12
28867-88
Зажим
13
70177-94A
WIRING HARNESS SIREN AMPLIFIER, W/ 14-35
14
10065
CABLE STRAP
15
70289-89
PLUG 3-WAY SOCKET
16
72032-93
PLUG CONNECTOR
17
72059-08
SOCKET TERMINAL
18
72038-71A
TERMINAL SINGLE PIN
19
72045-90
CONNECTOR 2 SOCKET
20
72112-94BK
PLUG 2-WAY SOCKET
21
72116-94BK
PLUG 6-WAY SOCKET
22
72152-94
SECONDARY LOCK 2-WAY SOCKET
23
72172-94
FRONT SEAL 2-WAY PLUG
24
72176-94
FRONT SEAL 6-WAY PLUG
25
72156-94
SECONDARY LOCK 6-WAY SOCKET
26
72191-94
TERMINAL SOCKET
27
72195-94
SEAL PIN
28
72281-93
CONNECTOR 18 PIN
29
74413-93
BOOT CONNECTOR
30
76233-85
MICROPHONE JACK
31
72035-71
HOUSING DOUBLE PIN
32
72039-71A
PIN SINGLE SOCKET
33
72102-94BK
RECEPTACLE 2-WAY PIN
34
72142-94
SECONDARY LOCK 2-WAY PIN
35
72190-94
TERMINAL PIN
36
91127-85
BRACKET SPEAKER MOUNTING
37
91156-93
AMPLIFIER SIREN (WHELEN)
38
91157-88A
SPEAKER W/ TERMINALS
39
91159-82
U-BOLT SPEAKER MOUNTING
40
91260-93A
AMPLIFIER MOUNTING KIT W/ 1, 2, 5, 12, SPACER & BRACKET
41
91154-87
SPEAKER MOUNTING KIT W/ 3, 6, 7, 9, 10, 36 & 39
