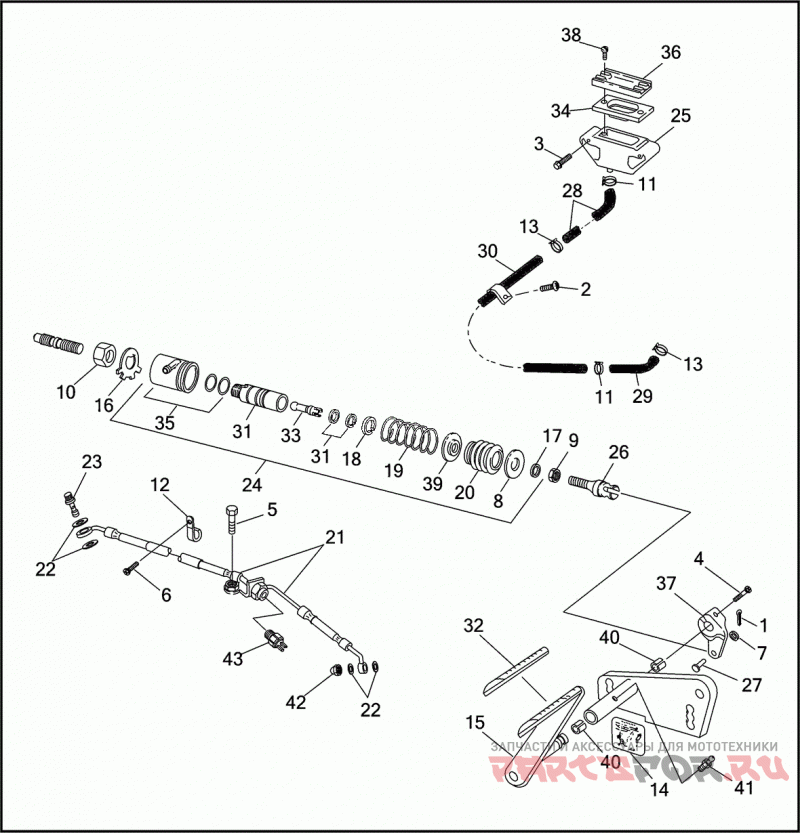

REAR BRAKE CONTROL - FLHTP

Harley Davidson FLHTP 1DAL ELECTRA GLIDE STANDARD POLICE (WINDSHIELD) (1994)

Harley Davidson
#oem кодцена
1
515
Шплинт
2
2523
SCREW NO. 8-32 X 1/2 HEX HD., SELF-TAPPING
3
3380
Винт
4
2708A
SCREW 5/16-18 X 1 SOCKET HD.
5
3588
SCREW 1/4-20 X 1/2 HEX FLANGE HD.
6
4091
SCREW NO. 10-24 X 1/2 HEX HD., W/WASHER, SELF-TAPPING (ZINC)
7
6220W
WASHER 1/4 X 7/16 X 1/32
8
6366
WASHER 1/2 X 1-1/4 X 3/32
9
7744
JAMNUT 5/16-24 X 3/16 X 1/2 (GRADE 2)
10
7855W
JAMNUT 3/4-16 X 7/16 X 1-1/8 (GRADE 2)
11
10014
Зажим
12
10031
Зажим
13
10038A
CLAMP BRAKE HOSE
14
14027-92A
LABEL BRAKE ADJUSTMENT
15
33882-83B
FOOT BRAKE LEVER
16
37503-41
Стопорная шайба
17
40903-87
Стопорное кольцо
18
40918-87
Стопорное кольцо
19
40920-87
SPRING BRAKE ROD RETURN
20
40922-87A
BOOT MASTER CYLINDER
21
40971-93C
BRAKE HOSE REAR
22
41731-88A
Прокладка
23
41747-82A
Болт
24
41755-92A
MASTER CYLINDER
25
41804-84A
RESERVOIR MASTER CYLINDER
26
41957-92
PUSHROD
27
42460-80B
CLEVIS PIN
28
42310-93
HOSE RESERVOIR
29
42315-92
HOSE RESERVOIR
30
42322-93
TUBE RESERVOIR
31
42382-87E
REPAIR KIT master cylinder
32
42416-83
PAD BRAKE PEDAL
33
42448-87
PUSHROD
34
42455-80
GASKET MASTER CYLINDER RESERVOIR
35
42457-92
REPAIR KIT RESERVOIR ADAPTOR
36
45057-82
COVER RESERVOIR
37
42510-92
CLEVIS ASSEMBLY
38
42534-90
Винт
39
44126-87
RETAINER BRAKE RETURN SPRING
40
47247-83
BUSHING HUB FOOT BRAKE
41
83459-09
FITTING lubrication
42
54307-92
ACORN NUT BRAKE
43
72023-51E
SWITCH KIT STOP LAMP
