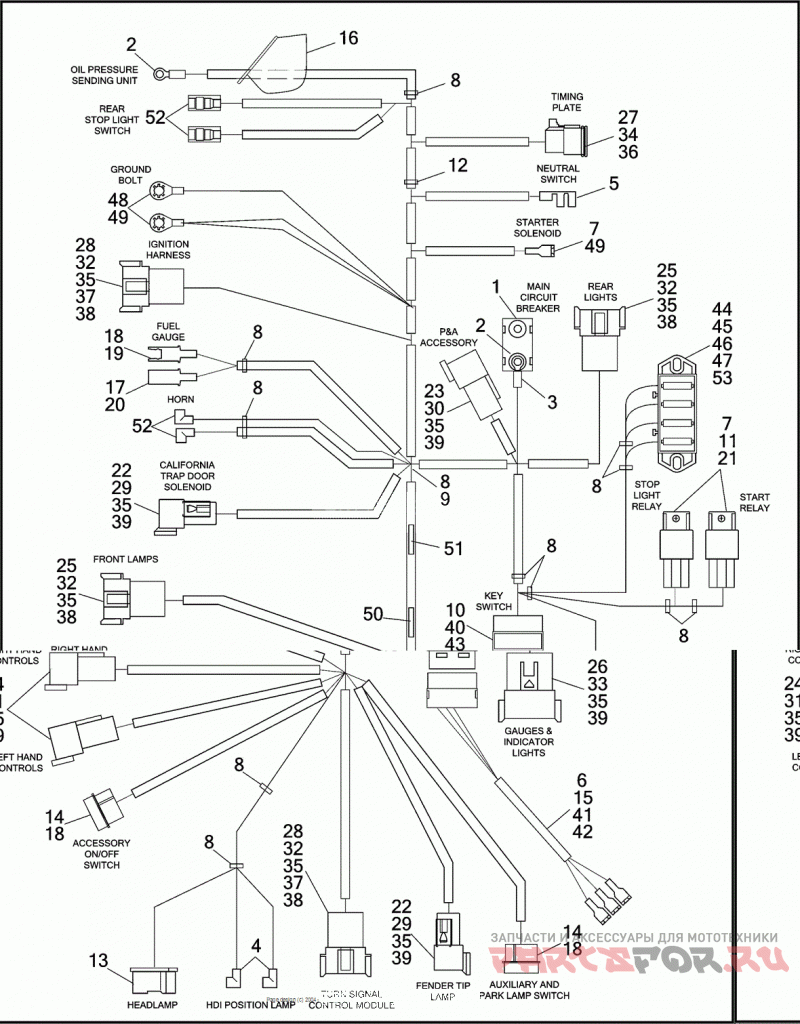

WIRING HARNESS, MAIN - FLHR

Harley Davidson FLHR 1FDL ROAD KING (1994)

Harley Davidson
#oem кодцена
70245-94A
MAIN WIRING HARNESS
1
74600-94
CIRCUIT BREAKER 50 AMP
2
9857
TERMINAL RING TYPE, #10 HOLE
3
9866
TERMINAL RING TYPE, #10 HOLE
4
9898
TERMINAL FEMALE FLAG, 14-16 WIRE
5
9905
TERMINAL CAP TYPE, 1/4 INCH DIAMETER
6
9907
TERMINAL CONNECTOR
7
9937
TERMINAL 1/4 INCH RING, 14-16 GAUGE
8
10065
CABLE STRAP
9
10136
ANCHOR T-STUD
10
10147
CLIP CONNECTOR
11
31504-91B
RELAY W/ DIODE
12
56073-83
Седло
13
68808-94
HEADLAMP CONNECTOR
14
70291-89
HOUSING 4 PIN
15
70384-94
HARNESS IGNITION SWITCH
16
70579-65
BOOT RUBBER
17
72038-71A
SOCKET SINGLE PIN
18
72039-71A
PIN SINGLE SOCKET
19
72043-71A
CONNECTOR SINGLE PIN
20
72044-71A
CONNECTOR SINGLE SOCKET
21
72046-79
CONNECTOR SPADE TERMINALS
22
72103-94BK
RECEPTACLE 3-WAY PIN
23
72104-94BK
RECEPTACLE 4-WAY PIN
24
72106-94BK
RECEPTACLE 6-WAY PIN*
25
72108-94BK
RECEPTACLE 8-WAY PIN
25
70245-94A
MAIN WIRING HARNESS
26
72109-94BK
RECEPTACLE 12-WAY PIN
27
72113-94BK
PLUG 3-WAY SOCKET
28
72128-94GY
PLUG 8-WAY SOCKET
29
72143-94
PIN LOCK SEC. 3-WAY
30
72144-94
PIN LOCK SEC. 4-WAY
31
72146-94
PIN LOCK SEC. 6-WAY
32
72148-94
PIN LOCK SEC. 8-WAY
33
72149-94
PIN LOCK SEC. 12-WAY
34
72153-94
SOCKET LOCK SEC. 3-WAY
35
72190-94
TERMINAL PIN
36
72191-94
TERMINAL SOCKET
37
72195-94
SEAL PIN
38
72198-94
ATTACHMENT CLIP 8-WAY
39
72199-94
ATTACHMENT CLIP
40
72205-94
CONNECTOR PLUG 4-WAY
41
72206-94
CONNECTOR RECEPTACLE, 4-WAY
42
72207-94
TERMINAL FEMALE, #14 GAUGE
43
72208-94
TERMINAL MALE, 12 GAUGE
45
72217-94
TERMINAL AUTO FUSE, 18-20 GAUGE
46
72218-94
TERMINAL AUTO FUSE, 14-16 GAUGE
48
72242-94
TERMINAL 1/4 INCH RING W/ INTERNAL STAR, 18-20 GAUGE
49
72249-94
HEAT SHRINK TUBE .3 X 1 INCH*
50
72266-94
HEAT SHRINK TUBE DUAL WALL, .3 X 2 INCHES
51
72268-94
HEAT SHRINK TUBE DUAL WALL, .7 X 2 INCHES*
52
72290-94
TERMINAL 1/4 INCH FEMALE
53
74587-94
CIRCUIT BREAKER 15 AMP
