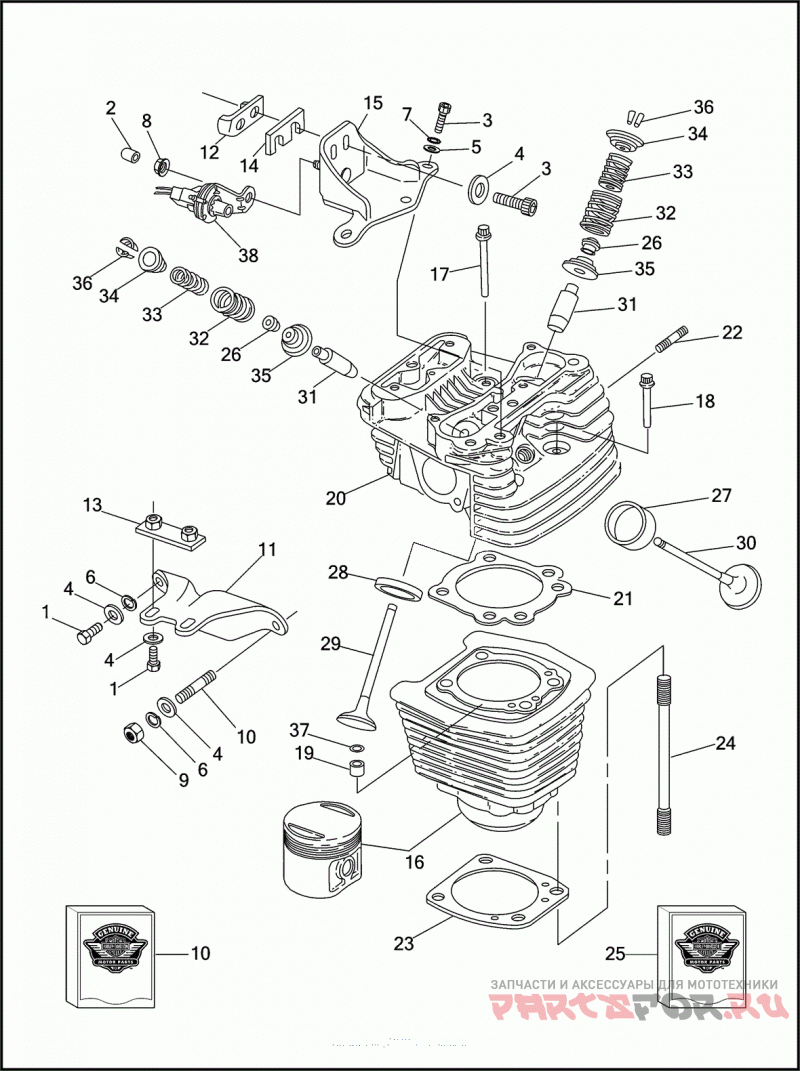

CYLINDER, HEAD & VALVES - V2 ™ EVOLUTION

Harley Davidson XL1200 1CAP SPORTSTER 1200 (1993)

Harley Davidson
#oem кодцена
1
4716W
SCREW 3/8-16 X 1-1/4 HEX HD. (GRADE 5)
2
89579-91
CAP PROTECTIVE
3
4748
SCREW 3/8-16 X 1-1/8 SOCKET HD. (GRADE 8)
4
6701
WASHER 3/8 X 13/16 X 1/16
5
6812
WASHER 13/32 X 11/16 X 1/16
6
7038
LOCKWASHER 3/8
7
7145W
LOCKWASHER 3/8 EXTERNAL TOOTH
8
7531
LOCKNUT 5/16-18 X 9/32 X 1/2 FLANGE
9
7861
NUT 3/8-24
10
11727A
STUD LEFT FRONT
10
16047-93
ENGINE ASSEMBLY COMPLETE (1200CC) (SWISS)
10
16051-93
ENGINE ASSEMBLY COMPLETE (1200CC)
10
16051-94
ENGINE ASSEMBLY COMPLETE (1200CC)
10
16054-93
ENGINE ASSEMBLY COMPLETE (1200CC) (CALIFORNIA)
10
16063-93
ENGINE ASSEMBLY COMPLETE (1200CC) (HDI)
11
16214-86
BRACKET UPPER FRONT
12
16226-94
NUT PLATE
13
16228-86A
NUT PLATE W/ 4716W
14
16231-86
SHIM 0.06
14
16232-86
SHIM 0.09
14
16233-86
SHIM 0.03
15
16278-86B
BRACKET CENTER ENGINE MOUNT
16
16447-88A
CYLINDER W/ PISTON (1200 CC)
17
16478-85A
SCREW INTERNAL THREAD
18
16480-92A
SCREW INTERNAL THREAD
19
16573-83A
INSERT CYLINDER STUD
20
16688-90A
HEAD FRONT CYLINDER, W/ VALVE GUIDES & SEATS
20
16698-90A
HEAD REAR CYLINDER, W/ VALVE GUIDES & SEATS
21
16770-84F
GASKET cylinder head
22
16715-83
STUD EXHAUST PORT
23
16774-86D
GASKET CYLINDER BASE
24
16832-86C
STUD CYLINDER BASE
25
17026-91D
GASKET KIT ENGINE OVERHAUL
25
17032-91
GASKET KIT TOP END
25
17036-91A
GASKET KIT ROCKER COVERS
26
18001-83B
SEAL VALVE
27
18011-87A
INSERT EXHAUST VALVE SEAT
28
18020-87A
INSERT INTAKE VALVE SEAT
29
18023-87A
Клапан впускной
30
18024-87A
Клапан выпускной
31
18101-83D
VALVE GUIDE INTAKE & EXHAUST
31
18130-83D
VALVE GUIDE INTAKE & EXHAUST, 0.001 O.S.
31
18131-83D
VALVE GUIDE INTAKE & EXHAUST, 0.003 O.S.
31
18133-83B
VALVE GUIDE INTAKE & EXHAUST, 0.002 O.S.
34
18219-83A
COLLAR VALVE SPRING, UPPER
36
18229-83A
RETAINER VALVE COLLAR
37
26432-76A
O-RING CYLINDER STUD INSERT
38
26558-84
VACUUM SWITCH CARBURETOR
