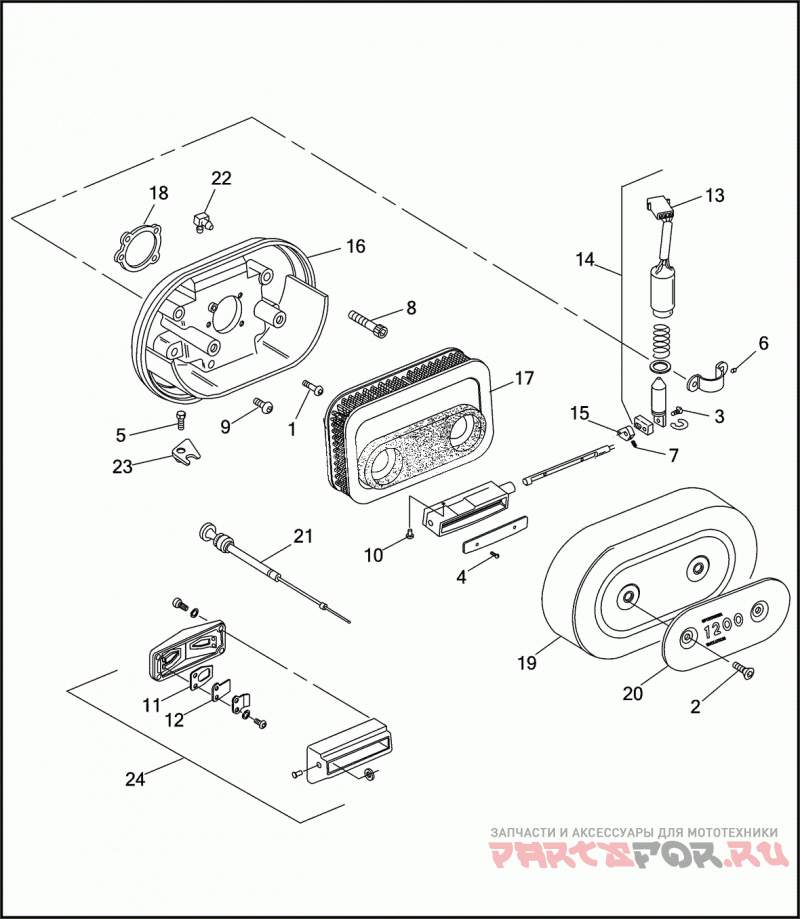

AIR CLEANER & ENRICHENER

Harley Davidson XL1200 1CAP SPORTSTER 1200 (1993)

Harley Davidson
#oem кодцена
1
869
SCREW 1/4-20 X 1-1/4 SOCKET BUTTON HD. (GRADE 8)
2
2405A
SCREW 5/16-18 X 3/4 PHILLIPS OVAL HD. (CHROME)
3
2711
SCREW NO. 4-40 X 3/8 PAN HD., SELF-TAPPING
4
2737
SCREW NO. 4-40 X 1/4 POZIDRIV PAN HD. (GRADE 2)
5
2916
SCREW 3/8-16 X 5/8 SOCKET BUTTON HD. (GRADE 8)
6
3206B
SCREW NO. 8-32 X 1-7/8
8
3534B
SCREW 1/2-13 X 2-1/2 SOCKET HD. (GRADE 8)
9
3652
SCREW 1/4-20 X 3/8 BUTTON HD. (GRADE 8)
10
8535
RIVET (CALIFORNIA)
11
28820-86
REED BOTTOM (HDI)
12
28821-86
REED TOP (HDI)
13
70291-89
HOUSING 4 PIN (CALIFORNIA)
14
28841-89
SOLENOID (CALIFORNIA)
15
28842-89
LINK (CALIFORNIA)
16
29009-89B
BACKPLATE AIR CLEANER
16
29018-92
BACKPLATE ASSEMBLY (CALIFORNIA)
17
29331-96
FILTER ELEMENT
18
29059-88A
Прокладка
19
29084-73
COVER AIR CLEANER
20
29111-88
TRIM AIR CLEANER
21
29229-88D
CABLE ENRICHMENT
23
69027-92
BRACKET ENRICHMENT CABLE
24
28826-86A
REED SUPPORT ASSEMBLY (HDI) W/ 28820-86 & 28821-86
25
29078-91
BACKPLATE ASSEMBLY (SWISS) (NOT ILLUSTRATED)
