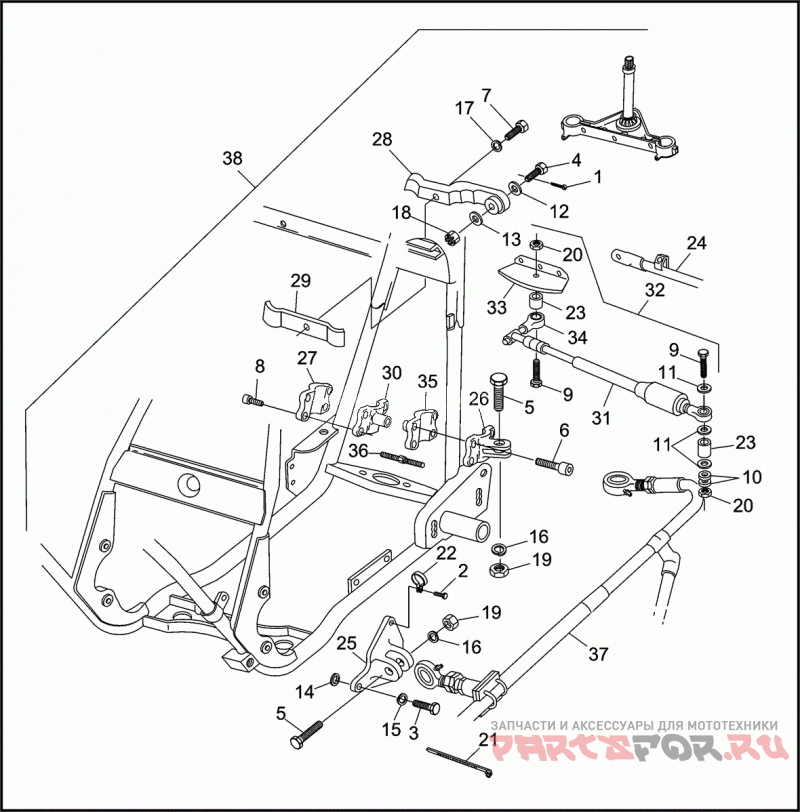

SIDECAR CONNECTION KIT - TLE

Harley Davidson TLE GX93 STANDARD SIDECAR (1993)

Harley Davidson
#oem кодцена
1
559
COTTER PIN | GX93/GX94/KX93/KX94
2
3764
BOLT 7/16-14 X 2 hex hd. (Grade 5) | GX93/GX94/KX93/KX94
3
3782
BOLT 7/16-14 X 1-1/4 hex hd. (Grade 5) | GX93/GX94/KX93/KX94
4
3949
BOLT 1/2-13 X 2-1/2 hex hd. (Grade 5) | GX93/GX94/KX93/KX94
5
4045
SCREW 3/4-10 X 2-3/4 hex hd. (Grade 8) | GX93/GX94/KX93/KX94
6
4357
SCREW 3/8-16 X 1-3/4 knurled hd. (Grade 8) | GX93/GX94/KX93/KX94
7
4052
BOLT 1/2-13 X 1-3/4 hex hd. (Grade 5) | GX93/GX94/KX93/KX94
8
4356
SCREW 3/8-16 X 1-1/2 knurled hd. (Grade 8) | GX93/GX94/KX93/KX94
9
4420
SCREW 3/8-16 X 2.75 hex hd. (Grade 5) | GX93/GX94/KX93/KX94
4720W
BOLT 3/8-16 X 1-3/4 hex hd. (Grade 5) | GX93/GX94/KX93/KX94
10
6519
WASHER 13/32 X 1-1/32 X 1/8 | GX93/GX94/KX93/KX94
11
6701
WASHER 3/8 X 13/16 X 1/16 | GX93/GX94/KX93/KX94
12
6718
WASHER 1/2 X 1-1/16 X 3/32 | GX93/GX94/KX93/KX94
13
6723
WASHER 17/32 X 1-1/2 X 9/64 | GX93/GX94/KX93/KX94
14
6960
WASHER 1/2 X 3/4 X .004 | GX93/GX94/KX93/KX94
14
6961
WASHER 1/2 X 3/4 X .007 | GX93/GX94/KX93/KX94
14
6962
WASHER 1/2 X 3/4 X .015 | GX93/GX94/KX93/KX94
14
6963
WASHER 1/2 X 3/4 X .031 | GX93/GX94/KX93/KX94
15
7039
LOCKWASHER 7/16 | GX93/GX94/KX93/KX94
16
7043
LOCKWASHER 3/4 | GX93/GX94/KX93/KX94
17
7068
LOCKWASHER 1/2 | GX93/GX94/KX93/KX94
18
7843
NUT 1/2-13 slotted | GX93/GX94/KX93/KX94
19
7598
NUT 3/4-10 | GX93/GX94/KX93/KX94
20
7775
LOCKNUT 3/8-24 X 7/16 X 9/16 | GX93/GX94/KX93/KX94
21
10006
CABLE STRAP | GX93/GX94/KX93/KX94
22
10036
CLAMP | GX93/GX94/KX93/KX94
23
59938-72
SPACER mounting | GX93/GX94/KX93/KX94
24
87056-83B
BRACE sidecar frame | GX93/GX94/KX93/KX94
25
87114-93A
BRACKET ASSEMBLY rear | GX93/GX94/KX93/KX94
26
87122-83A
MOUNTING BRACKET lower front, right | GX93/GX94/KX93/KX94
27
87123-83
MOUNTING BRACKET lower front, left | GX93/GX94/KX93/KX94
28
87131-83C
UPPER CONNECTION front | GX93/GX94/KX93/KX94
29
87132-92
UPPER CONNECTION rear | GX93/GX94/KX93/KX94
30
87137-92
STABILIZER BRACKET front | GX93/GX94/KX93/KX94
31
87141-83
STEERING DAMPER | GX93/GX94/KX93/KX94
32
87142-83
DAMPER MOUNTING KIT w/ 9, 11, 20 & 23 (use 87166-93) | GX93/GX94/KX93/KX94
33
87143-83
BRACKET steering damper | GX93/GX94/KX93/KX94
34
87144-83
ROD END BALL JOINT | GX93/GX94/KX93/KX94
35
87148-92
STABILIZER BRACKET right | GX93/GX94/KX93/KX94
36
87156-83
STABILIZER front | GX93/GX94/KX93/KX94
37
87160-83
FRAME ASSEMBLY | GX93/GX94/KX93/KX94
38
87166-93
CONNECTION KIT sidecar (replaces 87142-83) | GX93/GX94/KX93/KX94
