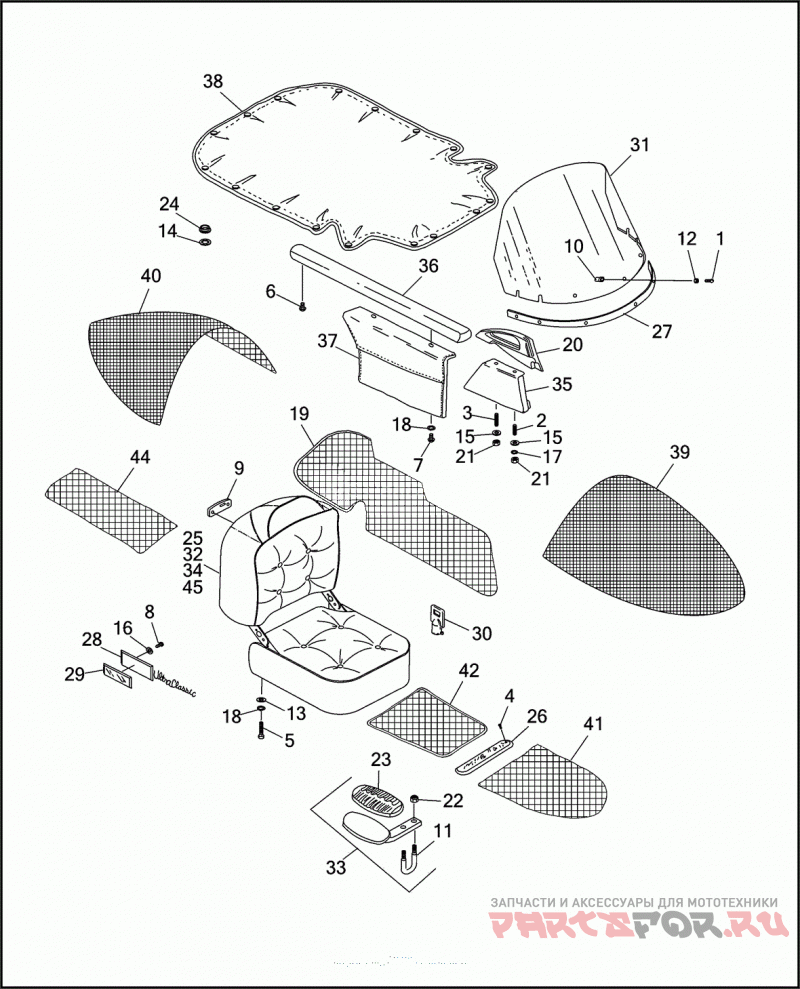

SIDECAR - INTERIOR

Harley Davidson SIDECAR FOR ULTRA 8SKX ULTRA SIDECAR (1993)

Harley Davidson
#oem кодцена
1
933
SCREW NO. 10-32 X 15/16 POZIDRIV TRUSS HD. (GRADE 2)
2
2522
Шпилька
3
2527
Шпилька
4
2731W
SCREW NO. 10 X 3/8 PHILLIPS TRUSS HD., SELF-TAPPING
5
2818
BOLT 5/16-18 X 1-1/2 HEX HD. (GRADE 5)
6
2920
SCREW 1/4-20 X 3/4 PAN HD.
7
2929
SCREW 1/4-20 X 1 PAN HD.
8
3595
SCREW NO. 6-32 X 1/4 TORX HD., W/LOCKPATCH
9
88428-91
LOCKPLATE
10
5207
WELL NUT
11
5252
Болт
12
6054
WASHER 3/16 X 9/16 X 1/16 NYLON (BLACK)
13
6238
WASHER 11/32 X 1-1/8 X 5/64
14
6335
WASHER NO. 4 X 5/16 X 1/32
15
6703
WASHER 1/4 X 5/8 X 1/16
16
6717
WASHER NO. 6 X 3/8 X 3/64
17
7036
WASHER 1/4 X 31/64 X 1/16
18
7041
LOCKWASHER 5/16
19
88537-91
CARPET LEFT SIDE
19
88538-91
CARPET RIGHT SIDE
20
88545-93
HANDHOLD LEFT
20
88546-93
HANDHOLD RIGHT
21
7688
NUT 1/4-20 X 7/32 X 7/16 (GRADE 2)
22
7739
LOCKNUT 5/16-18 X 11/32 X 1/2
23
36964-67
PAD SIDECAR STEP
24
47076-72
SNAP BASE
25
53848-00
Замок
26
58378-89
NAMEPLATE FOOTREST in.HARLEY-DAVIDSONin.
27
58717-79
FOAM TAPE WINDSHIELD
28
59245-90
NAMEPLATE FENDER
29
59259-90
REFLECTOR FENDER (RED)
31
88865-89
Ветровое стекло
32
88489-95
SEAT ASSEMBLY
33
88490-88A
SIDECAR STEP KIT W/ 11, 22 & 23
34
88492-89
HEADREST
35
88494-89
KNEE BOLSTER RIGHT
35
88495-89
KNEE BOLSTER LEFT
36
88496-89A
ARM REST CUSHION RIGHT
36
88497-89A
ARM REST CUSHION LEFT
37
88500-89
MAP POCKET RIGHT
37
88501-89
MAP POCKET LEFT
38
88530-98
COVER SIDECAR BODY (BLACK)
39
88526-91
CARPET TOP FRONT
40
88527-91
CARPET TOP REAR
41
88531-91
CARPET NOSE
42
88536-91
CARPET FRONT LOWER
43
36760-89
CABLE SEAT RECLINE (NOT ILLUSTRATED)
44
88539-91
CARPET REAR LOWER
45
53593-92
LOCK ASSEMBLY SEAT, W/ 25 & 30
