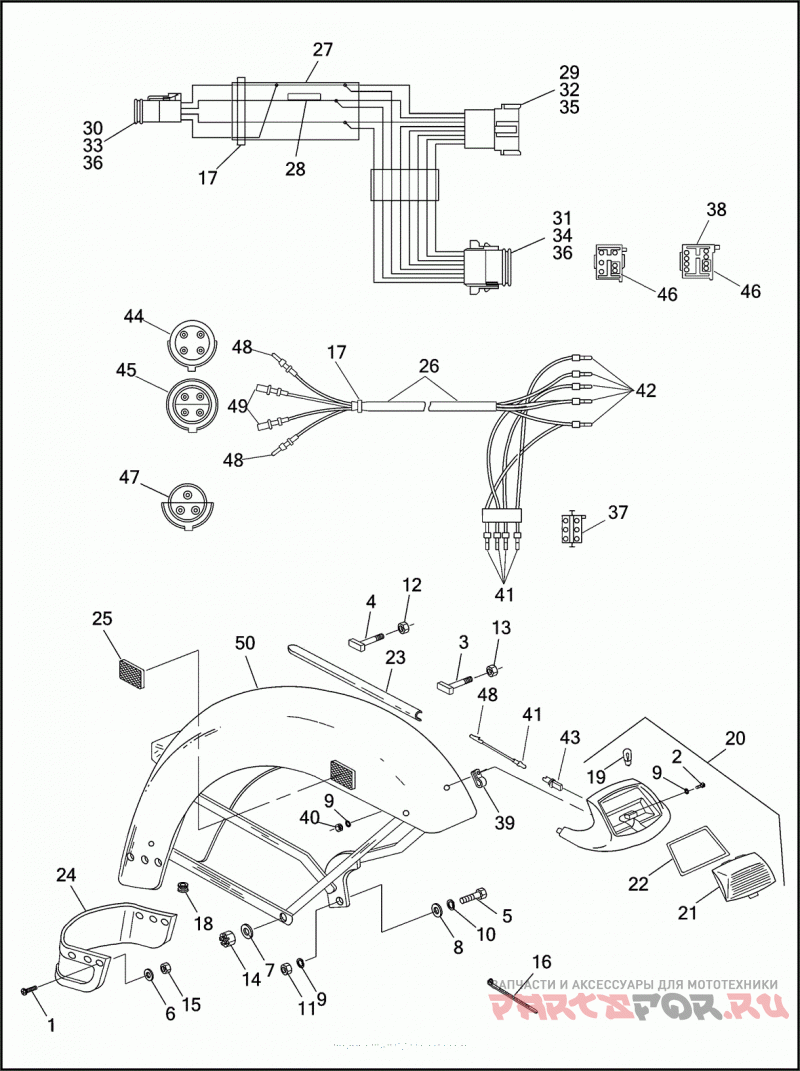

SIDECAR FENDER - TLE

Harley Davidson SIDECAR FOR ULTRA 8SKX ULTRA SIDECAR (1993)

Harley Davidson
#oem кодцена
1
2531
SCREW NO. 4-40 X 5/16 POZIDRIV PAN HD. (GRADE 2)
2
2604
SCREW NO. 10-32 X 1/2 POZIDRIV PAN HD. (GRADE 2)
3
3560WA
BOLT NO. 10-24 X 3/8
4
3561WC
BOLT NO. 10-24 X 3/8
5
4721
BOLT 3/8-16 X 1-1/2 HEX HD. (GRADE 5)
6
6335
WASHER NO. 4 X 5/16 X 1/32
7
6653A
WASHER 1/2 X 1-1/8 X 3/32
8
6701
WASHER 3/8 X 13/16 X 1/16
9
7118
LOCKWASHER 3/16 INTERNAL TOOTH
10
7130W
LOCKWASHER 3/8 INTERNAL TOOTH
11
7601
LOCKNUT 3/8-16 FLANGE
12
7624
LOCKNUT NO. 10-24 X 1/4 X 3/8
13
7629
NUT NO. 10-32 X 3/8 KEPS
14
7823
NUT 5/8-18 X 3/8 X 15/16 SLOTTED (GRADE 2)
15
7600
NUT NO. 4-40 KEPS
16
10006
CABLE STRAP AS REQUIRED
17
10065
CABLE STRAP
18
11410
GROMMET TAIL LAMP WIRING
19
53439-79
BULB FENDER TIP LAMP
20
59082-79
LAMP ASSEMBLY FENDER TIP
21
59180-80
LENS FENDER TIP LAMP
22
59181-80
GASKET FENDER TIP LAMP LENS
23
59211-74A
SIDE TRIM STRIP
24
59231-86
TRIM LOWER
25
59255-91
Отражатель Красный
26
70028-85A
WIRING HARNESS
37
70287-81A
CONNECTOR EIGHT SOCKET
38
70288-81
CONNECTOR EIGHT PIN
39
71795-63A
Зажим
40
7638
NUT NO. 10-32 X 1/8 X 3/8 (GRADE 2)
41
72038-71A
SOCKET SINGLE PIN (AS REQUIRED)
42
72039-71A
PIN SINGLE SOCKET
43
72044-71A
CONNECTOR SINGLE SOCKET
44
72054-84
PLUG RECEPTACLE
45
72057-84
PROTECTIVE PLUG W/ SIDECAR REMOVED
46
72275-74
CONNECTOR TAB TWO TERMINAL
47
74521-77A
PLUG RECEPTACLE
48
74536-77A
PIN SINGLE SOCKET
49
74539-77A
SOCKET SINGLE PIN
50
87901-83A
FENDER SIDECAR (PRIME)
