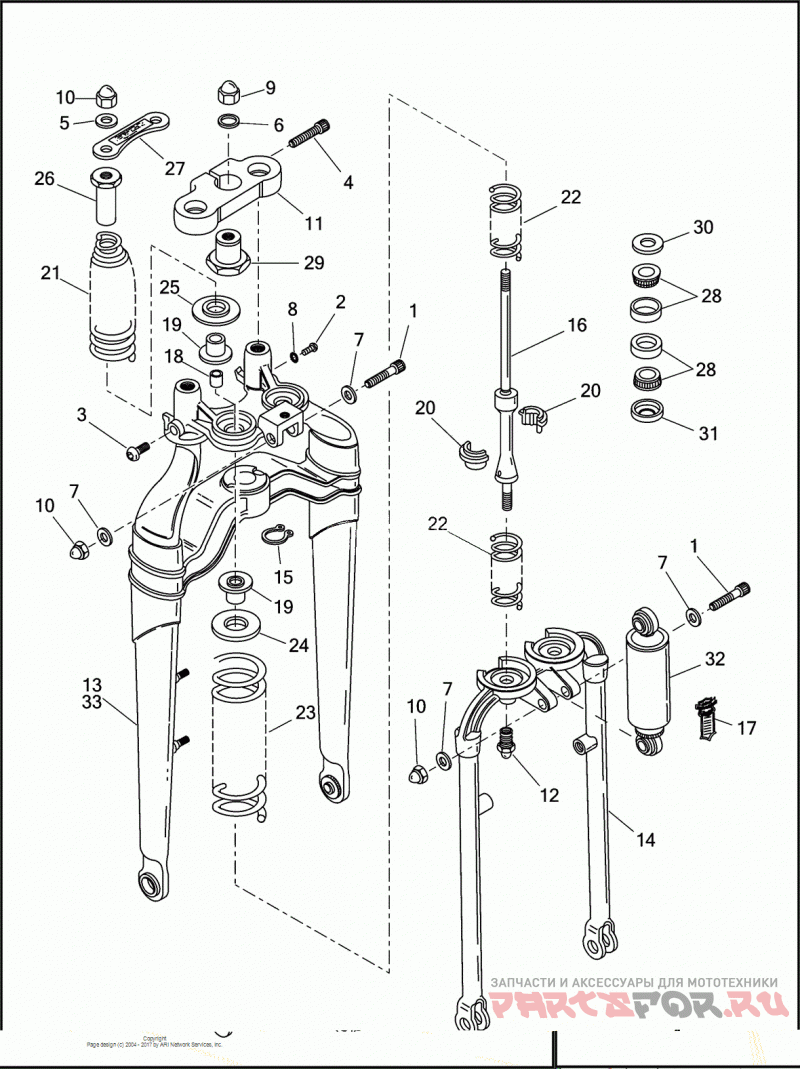

FRONT FORK - FXSTS

Harley Davidson FXSTS 1BLL SPRINGER SOFTAIL (1993)

Harley Davidson
#oem кодцена
1
855B
SCREW 3/8-16 X 2 KNURLED HD.
2
3533
SCREW 5/16-24 X 3/8 SOCKET BUTTON HD.
3
3538
SCREW 5/16-24 X 1/2 SOCKET BUTTON HD.
4
4350A
SCREW 3/8-16 X 1-1/2 SOCKET HD.
5
6353
WASHER 3/8 X 13/16 X 1/16 (CHROME)
6
6756
WASHER 1/2 X 1-1/16 X 3/32
7
6812
WASHER 13/32 X 11/16 X 1/16
8
7232
LOCKWASHER 5/16 INTERNAL TOOTH
9
7627
ACORN NUT 1/2-13 X 3/4 (CHROME)
10
7680W
ACORN NUT 3/8-16 X 25/32 X 9/16 (GRADE 2) (CHROME)
11
45473-88
UPPER TRIPLE CLAMP
12
45567-88
ACORN NUT LOWER SPRING ROD
13
45569-88B
RIGID FORK ASSEMBLY W/ STEM
14
45607-93
SPRING FORK
15
45611-86
RETAINING RING FORK STEM
16
45628-92
SPRING ROD ASSEMBLY
17
66030-88
DECAL SHOCK ABSORBER
18
45935-88
BUSHING SPRING ROD
19
45936-88
TRAVEL BUMPER
20
45937-88
Пружины
21
46053-88
SPRING REBOUND, TOP
22
46054-88
SPRING COMPRESSION, INNER
23
46055-88
SPRING COMPRESSION, OUTER
24
46056-88
SPRING CUP COMPRESSION SPRING
25
46057-88
SPRING CUP REBOUND SPRING
26
46060-88
SPRING RESTRAINT UPPER
27
46062-88
SPRING BRIDGE
28
48300-60
ROLLER BEARING W/ CUP
29
48306-88
BEARING RETAINER STEERING HEAD
30
48361-80
DUST SHIELD BEARING, UPPER
31
48365-48A
DUST SHIELD BEARING, LOWER
32
54485-97
FRONT SHOCK ABSORBER
33
46008-93
FORK ASSEMBLY COMPLETE
34
48140-84A
STEERING HEAD LOCK ASSEMBLY (HDI) (NOT ILLUSTRATED)
