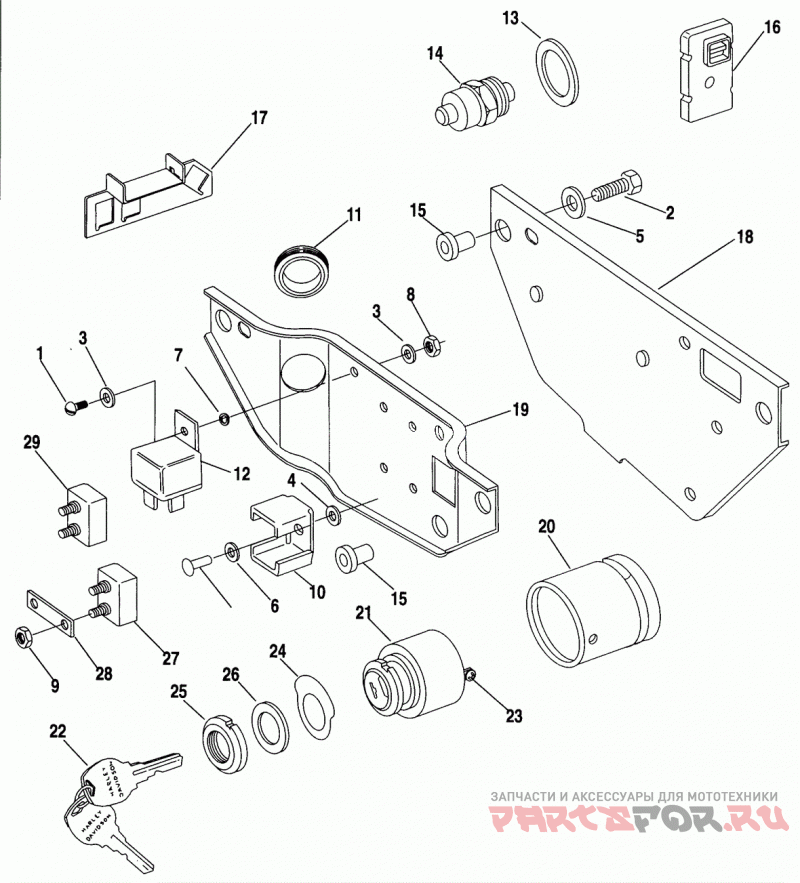

SWITCHES & CIRCUIT BREAKERS - FXR MODELS

Harley Davidson FXRS-SP EGLP FXR Sport (1993)

Harley Davidson
#oem кодцена
1
909
Винт
2
3787
BOLT, 1/4-20 X 3/4 hex. hd. (grade 5 steel)
3
6150W
WASHER, 3/16 X 3/8 X 1/16
4
6198
Шайба
5
6703
WASHER, 1/4 X 5/8 X 1 /16
6
7229W
LOCKWASHER, 1/4 internal/external tooth
7
7230
LOCKWASHER, 1/4 external tooth
8
7620W
NUT, No. 10-24 X 1/8 X 3/8 hex.(Grade 2 steel)
9
7629
NUT, #10-32 X 3/16 X 3/8 hex.
10
9952
CLIP, circuit breakers
11
11440
Уплотнитель резиновый
12
31504-91B
RELAY
12
31506-79C
STARTER RELAY (early model year)
13
33043-80
WASHER, neutral indicator switch
14
33900-59C
SWITCH, neutral indicator
15
6596
WELL NUT
16
68537-89G
CANCELLER turn signal
18
70970-91
IGNITION PANEL
19
70979-86
ELECTRICAL PANEL
20
71424-83
BOOT, ignition switch
21
71441-94
IGNITION SWITCH w/ 21, 23 & 24
23
45790-80
DRAIN SCREW, w/ washer
24
71550-75
LABEL, ignition switch
25
71552-75
FACE NUT, ignition switch
26
71554-75
WASHER, ignition switch
27
74589-73
CIRCUIT BREAKER, 15 amp
28
74598-73
CONNECTOR BAR, circuit breaker
29
74599-77B
CIRCUIT BREAKER, 30 amp - battery
