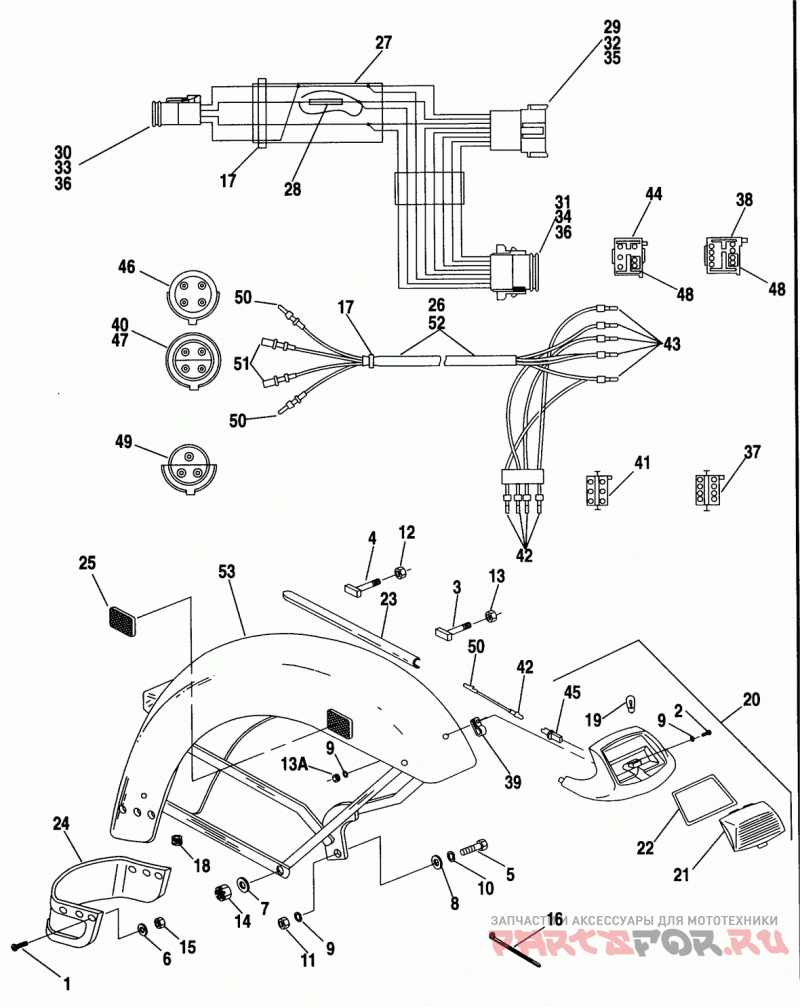

SIDECAR FENDER - TLE & RLE

Harley Davidson FXRS-SP EGLP FXR Sport (1993)

Harley Davidson
#oem кодцена
2
2604
SCREW, No. 10-32 X 1/2 Pozidriv pan hd. (Grade 2 steel)
3
3560WA
BOLT No. 10-24 X 3/8
4
3561WC
BOLT No. 10-24 X 3/8
5
4721
BOLT, 3/8-16 X 1-1/2 hex. hd.(Grade 5 steel)
7
6653A
WASHER, 5/8 X 1-5/16 X 3/32
9
7118
LOCKWASHER, No. 10 internal tooth
10
7130W
LOCKWASHER, 3/8 internal tooth
11
7601
FLANGE LOCKNUT, 3/8-16
12
7624
LOCKNUT, No. 10-24 X 1/4 X 3/8 hex.
13
7629
NUT, #10-32 X 3/16 X 3/8 hex.
13A
7638
NUT, No. 10-32 X 1/8 X 3/8 hex.(Grade 2 steel)
14
7823
CASTLE NUT, 5/8-18 X 3/8 X 15/16 hex. (Grade 2 steel)
16
10006
CABLE STRAP (as required)
17
10065
CABLE STRAP
18
11410
GROMMET, tail lamp wiring
19
53439-79
BULB, fender tip lamp
20
59082-79
LAMP ASSEMBLY, fender tip
21
59180-80
LENS, fender tip lamp
22
59181-80
GASKET, fendet tip lamp lens
23
59211-74A
SIDE TRIM STRIP
25
59255-91
REFLECTOR (red)
39
71795-63A
Зажим
40
72029-84
PLUG, four terminal
41
72037-71
CONNECTOR, six socket
42
72038-71A
TERMINAL, socket
43
72039-71A
TERMINAL, pin
44
72041-71
CONNECTOR, six pin
45
72044-71A
SOCKET HOUSING
46
72054-84
PLUG RECEPTACLE
47
72057-84
PROTECTIVE PLUG (with sidecar removed)
48
72275-74
CONNECTOR TAB, two terminal
49
74521-77A
PLUG RECEPTACLE
50
74536-77A
PIN, single socket
51
74539-77A
SOCKET, single pin
52
87027-85
WIRING HARNESS
53
87901-83A
FENDER, sidecar (prime)
