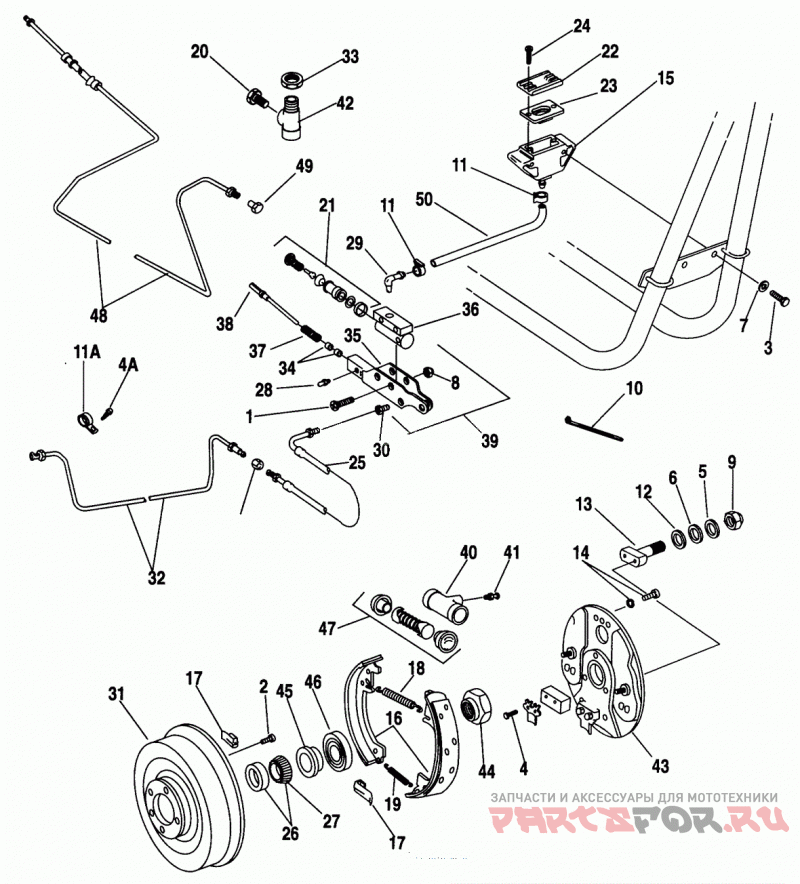

SIDECAR BRAKE - TLE & RLE

Harley Davidson FXRS-SP EGLP FXR Sport (1993)

Harley Davidson
#oem кодцена
1
1610
SCREW, 5/16-24 X 1-1/2 Pozidrivflat ctsk. hd. (Grade 2 steel)
2
1643
SCREW, 7/16-14 X 1-1/4flat socket ctsk. hd. (w/lockpatch)
3
3473
BOLT, No. 10-32 X 1/2 hex. washer hd. Grade 2 steel)
4
4020W
BOLT, 5/16-24 X 1-3/8 hex. hd.(Grade 5 steel)
4A
4091
BOLT, No. 10-24 X 1/2 hex. washer hd. (self-tapping)
5
6700B
WASHER, 5/8 X 13/16 X 1/32
6
6712B
WASHER, 5/8 X 15/16 X 3/32
7
6716
WASHER, No. 10 X 1/2 X 3/64
8
7729
LOCKNUT
9
7993
LOCKNUT, 5/8-18 X 15/16 hex.
10
10006
CABLE STRAP
11A
10059A
Зажим
12
18268-48
WASHER (as required)
13
41720-58
ANCHOR STUD
14
41742-58A
SCREW & LOCKWASHER, brake cylinder
15
41804-84A
RESERVOIR, master cylinder
16
41802-58A
SET OF BRAKE SHOES & LININGS
17
41835-58
HOLD DOWN, spring
18
41836-58
BRAKE SHOE SPRING, upper
19
41837-58
BRAKE SHOE SPRING, lower
21
42374-77B
REPAIR KIT, master cylinder
22
45057-82
COVER, reservoir
23
42455-80
GASKET, reservoir
24
42534-90
Винт
25
45114-77
HOSE, brake line
26
48302-85
BEARING, brake drum
27
48315-60
BEARING CUP, brake drum
28
83459-09
FITTING lubrication
29
63551-82
FITTING, reservoir hose
30
63609-72
FITTING, brake hose
31
87002-83
BRAKE DRUM ASSEMBLY
32
87029-85
BRAKE LINE
33
87032-85
FITTING, brake line
34
87038-85
BUSHING, housing
35
87039-85
HOUSING, master cylinder
36
87040-85
MASTER CYLINDER
37
87041-85
SPRING, brake rod
38
87042-85
ROD, brake
39
87043-85
MASTER CYLINDER & HOUSING ASM.
40
87071-89
BRAKE CYLINDER, wheel (5/8in.)
43
87672-76
SIDE PLATE
44
87706-83
LOCKNUT, axle shaft
45
87713-83
Проставка
46
87714-83
Сальник
47
87752-89
REPAIR KIT, brake cylinder (5/8in.)
50
63521-95A
HOSE reservoir | NOTE: Hose is sold in bulk length under the following part number. Cut to length.
