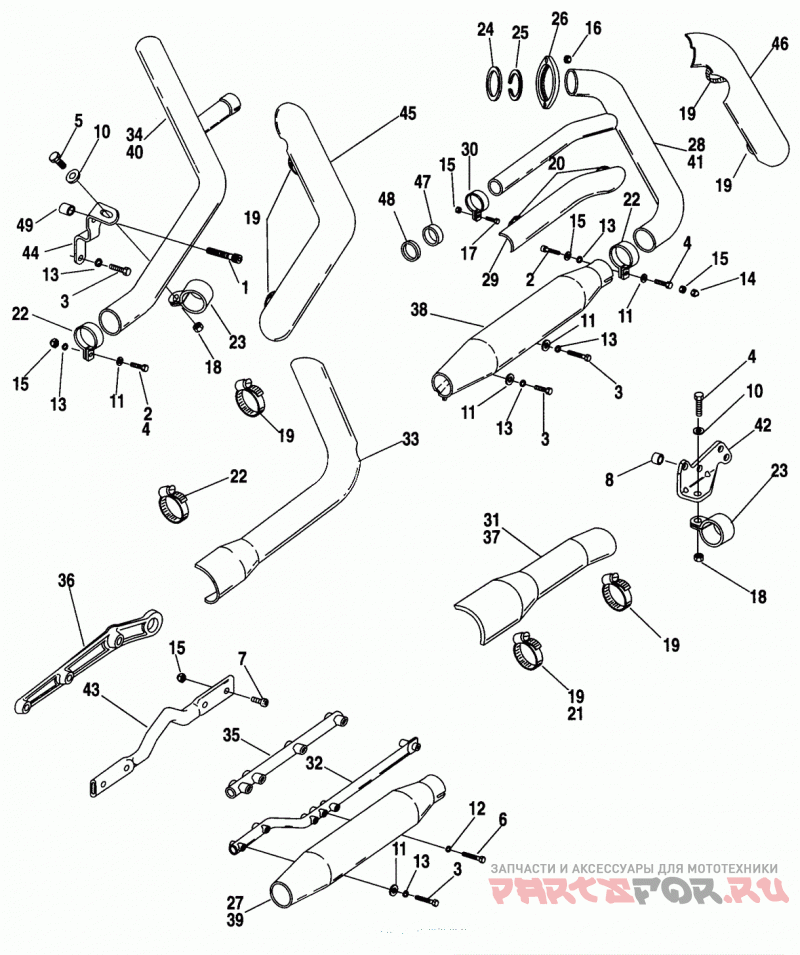

EXHAUST SYSTEM - FXR & SOFTAIL MODELS

Harley Davidson FXRS-SP EGLP FXR Sport (1993)

Harley Davidson
#oem кодцена
1
3485A
SCREW, 5/16-18 X 1-3/4 knurled socket hd. (Grade 8 steel)
2
2818
BOLT, 5/16-18 X 1-1/2 hex. hd. (Grade 5 steel)
3
4017
BOLT, 5/16-18 X 1 hex. hd.(Grade 5 steel)
4
4036
BOLT, 5/16-24 X 1-1/2 hex. hd.(Grade 5 steel)
5
4319
BOLT, 3/8-24 X 1 hex. hd.(Grade 5 steel)
7
5445W
BOLT, 5/16 X 1-1/4 carriage bolt (Grade 5 steel)
8
5887
Проставка
10
6701
WASHER, 3/8 X 13/16 X 1/16
11
6702
WASHER, 5/16 X 11/16 X 1/16
13
7041
LOCKWASHER, 5/16
15
7531
FLANGE LOCKNUT, 5/16-18 X 9/32 X 1/2 hex.
16
7593
FLANGE NUT, 5/16-24
18
7782
Гайка
19
9955
CLAMP (6; 5 - BJ/M/N; 4 - BK/L)
20
9955
Зажим
22
65276-62
CLAMP, muffler
23
65302-82A
CLAMP, exhaust pipe
24
65324-83B
GASKET, exhaust port
25
65325-83A
RETAINING RING, exhaust gasket
26
65328-83A
CLAMP exhaust port
29
65410-83
SHIELD, crossover pipe
37
65571-82
SHIELD, front muffler
38
65747-87
MUFFLER, front
39
65657-87
MUFFLER, rear
40
65668-87
EXHAUST PIPE, rear (chrome)
41
65669-87
EXHAUST PIPE, front (chrome)
42
65670-82B
BRACKET, front exhaust
43
65674-87
SUPPORT, muffler
44
65675-87
BRACKET, rear exhaust
45
65702-86
SHIELD, rear exhaust
46
65732-86
SHIELD, front exhaust
47
65781-82
Прокладка
48
65782-82
WASHER, exhaust
49
65802-90
Проставка
39
65739-89B
MUFFLER, rear (HDI only)
38
65738-89B
MUFFLER, front (HDI only)
