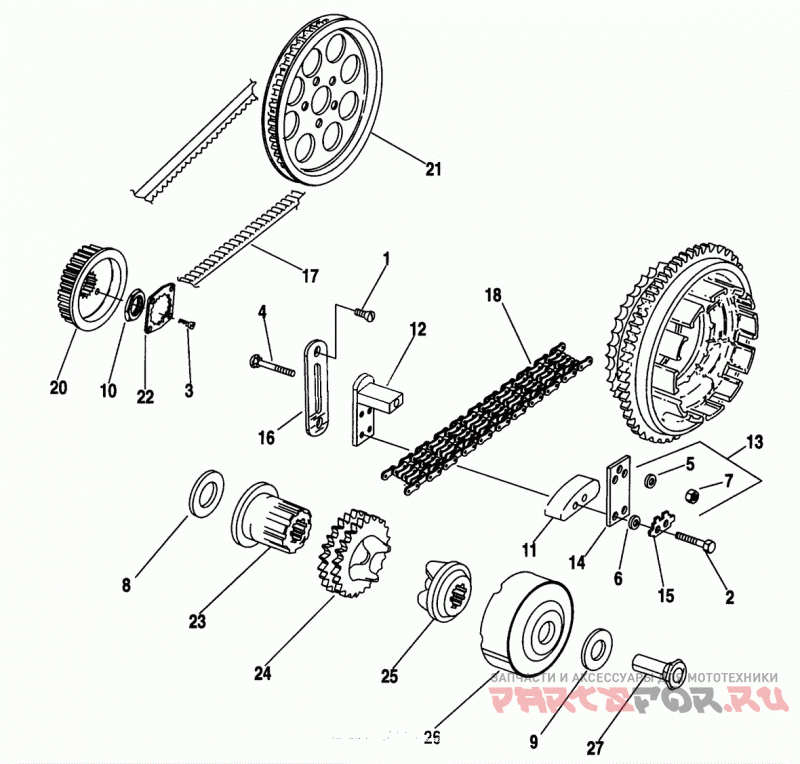

BELTS, CHAINS AND SPROCKETS

Harley Davidson FXRS-SP EGLP FXR Sport (1993)

Harley Davidson
#oem кодцена
1
1783C
SCREW 5/16-18 X 7/8 Pozidriv flat countersink hd. (Grade 2)
2
2614
BOLT, 1/4-28 X 2 hex. hd. (Grade 5 steel)
3
3594
SCREW, #1/4-20 X 5/8 hex socket head cap
4
5444
CARRIAGE BOLT, 3/8-16 X 3 (Grade 5 steel)
5
6400HB
WASHER, 5/16 X 13/16 X 3/32
6
6703
WASHER, 1/4 X 5/8 X 1 /16
7
7778
LOCKNUT, 3/8-16 X 7/16 X 9/16 hex.
8
24032-70
SPACER, sprkt. sft. - 0.06 thk.
8
24033-70
SPACER, sprkt. sft. - 0.09 thk.
8
24034-70
SPACER, sprkt. sft. - 0.12 thk.
8
24035-70
SPACER, sprkt. sft. - 0.15 thk.
8
24036-70
SPACER, sprkt. sft. - 0.18 thk.
8
24037-70
SPACER, sprkt. sft. - 0.21 thk.
8
35850-84
SPACER, sprkt. sft. - 0.01 thk. (as req`d)
8
35851-84
SPACER, sprkt. sft. - 0.02 thk. (as req`d)
8
35852-84
SPACER, sprkt. sft. - 0.03 thk. (as req`d)
10
35211-91B
NUT 1-1/2-24 X .350 X 1-7/8 hex hd.
11
39976-65B
PAD, chain tensioner
12
39990-65
Натяжитель Цепи
13
39992-65C
CHAIN TENSIONER MTG. KIT, w/#4,5,7
14
39993-65
PLATE, chain tensioner
15
39996-65
LOCKWASHER, chain tensioner plate
16
39998-65A
ANCHOR PLATE chain tensioner
17
40001-85
REAR BELT - 136 T
18
40037-79A
PRIMARY CHAIN
20
40210-85D
TRANSMISSION SPROCKET KIT, W/#3,10,22, & seal, spacer
21
40221-85A
SPROCKET, rear, 70 T - (silver)
22
40251-92A
LOCKPLATE
23
40266-85
SHAFT EXTENSION
24
40269-85A
COMPENSATING SPROCKET
25
40299-83A
SLIDING CAM
26
40384-91
COVER ASSEMBLY, w/springs
27
40392-91
Гайка
17
40023-86
REAR BELT - 132 T (HDI only)
21
40236-88A
SPROCKET, rear, 61 T - (silver) (HDI & E1994 Australia Softail Models)
