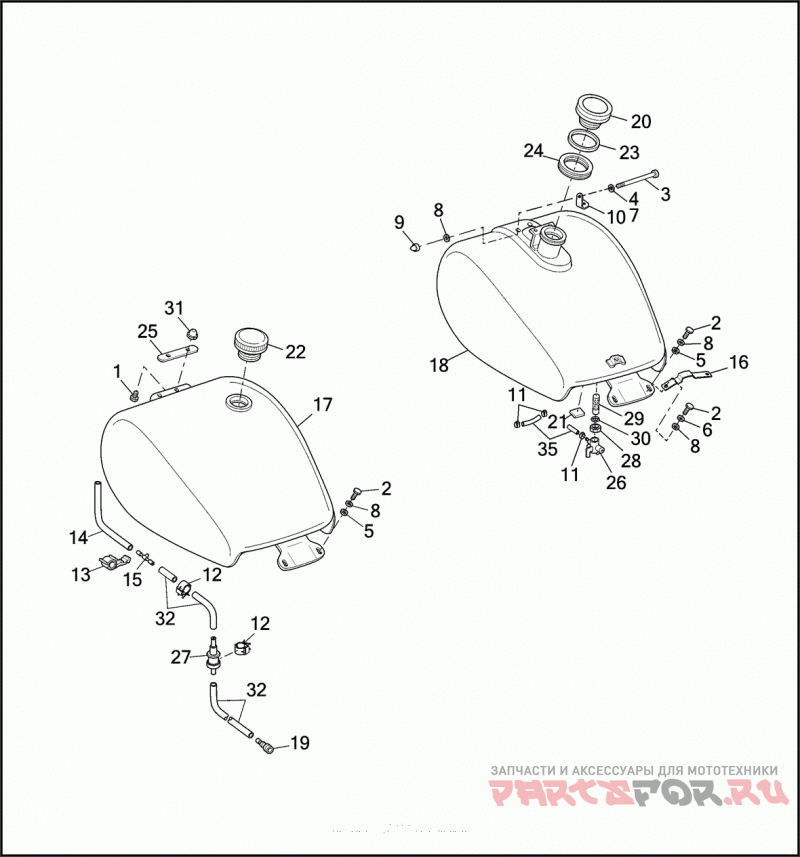

Топливный бак

Harley Davidson FXRS-SP 1EGL LOW RIDER SPORT EDITION (1993)

Harley Davidson
#oem кодцена
2
4017
BOLT 5/16-18 X 1 HEX HD. (GRADE 5)
3
4288
Болт
6
6237
WASHER 5/16 X 1-1/8 X 5/64
7
6702
WASHER 5/16 X 11/16 X 1/16
8
7232
LOCKWASHER 5/16 INTERNAL TOOTH
9
7507
ACORN NUT 5/16-18 X 11/16 X 1/2 (GRADE 2) (CHROME)
10
9988
CLIP THROTTLE CABLES
11
10014
Зажим
12
10108
CLIP VAPOR VALVE
13
10114
CLIP VAPOR VALVE HOSE
14
27198-92
HOSE TANK TO CONN.
15
27196-92
CONNECTOR VENT
18
61044-92
FUEL TANK PRIME
19
61131-92
CONNECTOR VENT LINE
21
61079-82
Подушка изолирующая
22
61272-92C
FILLER CAP VACUUM VENT (REPLACES 61273-92C)
23
61109-85D
GASKET FILLER CAP
24
61112-82A
чехол
26
61335-83
VALVE BODY
27
62150-85
VAPOR VALVE
28
62161-02
Гайка
29
62166-81A
Фильтр
30
62172-02
GASKET FUEL FILTER
31
90844-80
ACORN NUT NO. 10 X 3/8 FLANGE (GRADE 2)
32
27138-90
HOSE 3/16 INCH I.D. X 11/32 INCH O.D. (RUBBER) (10 FT. LG.)
34
63501-68B
HOSE 1/4 INCH I.D. X 5/8 INCH O.D. (RUBBER) (25 FT. LONG) (NOT ILLUSTRATED)
35
62555-95
INSULATOR 1/2 INCH I.D. (NYLON) (8 FT. LONG)
