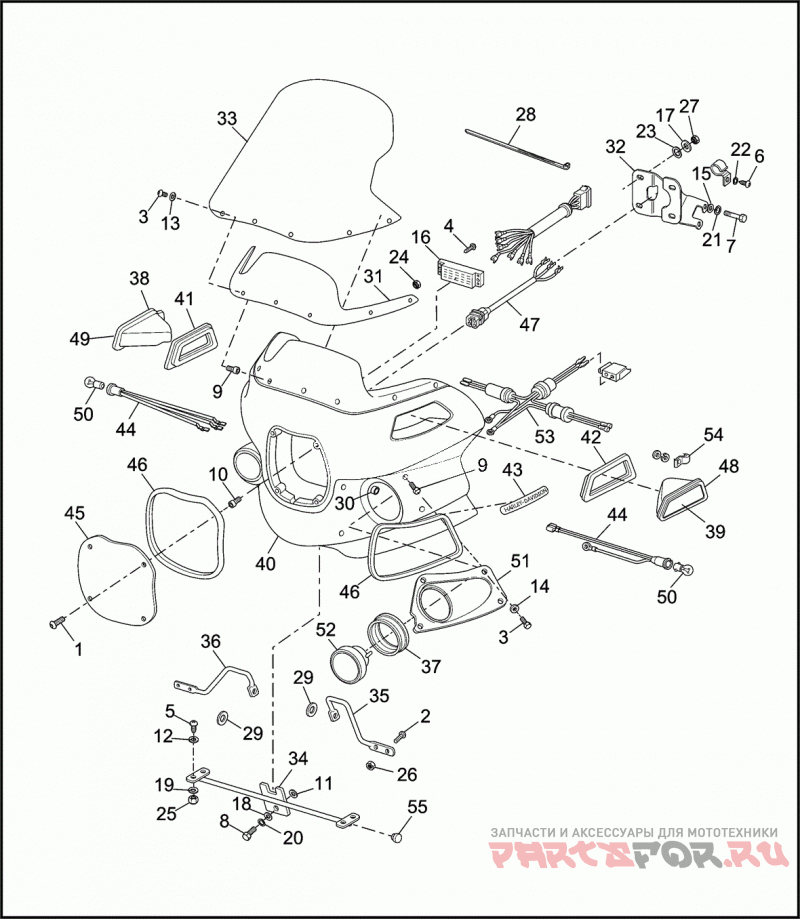

WINDSHIELD & FAIRING - FXRP

Harley Davidson FXRP-FRG EF93 SUPER GLIDE POLICE (FRG/WND) (1993)

Harley Davidson
#oem кодцена
1
922
SCREW No. 6-32 X 3/4 Phillips hd. (black) | EF93/EF94
2
923
SCREW 1/4-20 X 3/4 socket pan hd. | EF93/EF94
3
933
SCREW No. 10-32 X 15/16 Pozidriv truss hd. (Grade 2) | EF93/EF94
4
1651
SCREW | EF93/EF94
5
2648
SCREW 1/4-20 X 1 Pozidriv truss hd. (Grade 2) | EF93/EF94
6
2652
SCREW No. 10-16 X 3/8 hex hd., w/washer, self-tapping | EF93/EF94
7
3987
BOLT 5/16-18 X 3/4 hex hd. (Grade 5) | EF93/EF94
8
4371WA
SCREW | EF93/EF94
9
5207
WELL NUT | EF93/EF94
10
5210
WELL NUT | EF93/EF94
11
6019
WASHER 3/8 X 29/32 X 1/16 | EF93/EF94
12
6036
WASHER 17/64 X 1 X 1/16 | EF93/EF94
13
6053
WASHER 3/16 X 7/16 X 1/16 nylon (black) | EF93/EF94
14
6054
WASHER 3/16 X 9/16 X 1/16 nylon (black) | EF93/EF94
15
6109
WASHER 5/16 X 11/16 X 1/8 | EF93/EF94
16
72312-73
TERMINAL BLOCK | EF93/EF94
17
6333
WASHER 5/16 X 7/8 X 5/64 | EF93/EF94
18
6701
WASHER 3/8 X 13/16 X 1/16 | EF93/EF94
19
6703
WASHER 1/4 X 5/8 X 1/16 | EF93/EF94
20
7038
LOCKWASHER 3/8 | EF93/EF94
21
7041
LOCKWASHER 5/16 | EF93/EF94
22
7220
LOCKWASHER No. 10 external tooth | EF93/EF94
23
7232
LOCKWASHER 5/16 internal tooth | EF93/EF94
24
7609W
LOCKNUT No. 8-32 X 3/16 X 5/16 | EF93/EF94
25
7686
LOCKNUT 1/4-20 X 5/16 X 7/16 | EF93/EF94
26
7792
NUT 1/4-20 X 1/4 (Grade 2) | EF93/EF94
27
7739
LOCKNUT 5/16-18 X 11/32 X 1/2 | EF93/EF94
28
10006
CABLE STRAP | EF93/EF94
28
10007
CABLE STRAP | EF93/EF94
29
53433-80
WASHER nylon | EF93/EF94
30
57978-63
GROMMET | EF93/EF94
31
58014-83
SEAL | EF93/EF94
32
58042-86
BRACKET upper | EF93/EF94
33
58091-87A
WINDSHIELD fairing | EF93/EF94
34
58150-83
SUPPORT ASSEMBLY lower | EF93/EF94
35
58224-83A
BRACE left | EF93/EF94
36
58227-83A
BRACE right | EF93/EF94
37
58229-85
MOUNTING RING | EF93/EF94
38
58498-86
TURN SIGNAL right | EF93/EF94
39
58499-86
TURN SIGNAL left | EF93/EF94
40
58654-91
FAIRING (white) | EF93/EF94
41
58722-84
GASKET right turn signal | EF93/EF94
42
58723-84
GASKET left turn signal | EF93/EF94
43
61168-81A
DECAL in.Harley-Davidsonin., fairing | EF93/EF94
44
67636-86
SOCKET ASSEMBLY | EF93/EF94
45
67700-83
COVER headlamp | EF93/EF94
46
67710-83
SEAL | EF93/EF94
47
67714-83
WIRING HARNESS terminal board to headlamp | EF93/EF94
48
68089-80
LENS left turn signal | EF93/EF94
49
68092-80
LENS right turn signal | EF93/EF94
50
68168-89A
BULB turn signal | EF93/EF94
51
68702-84
PURSUIT LAMP POD right | EF93/EF94
51
68703-84
PURSUIT LAMP POD left | EF93/EF94
52
68727-64D
PURSUIT LAMP sealed unit, 12V (red) | EF93/EF94
52
68728-64C
PURSUIT LAMP sealed unit, 12V (blue) | EF93/EF94
53
70178-84
WIRING HARNESS pursuit lamps | EF93/EF94
54
58508-93
BRACKET turn signal | EF93/EF94
55
90493-83
HOLE PLUG | EF93/EF94
