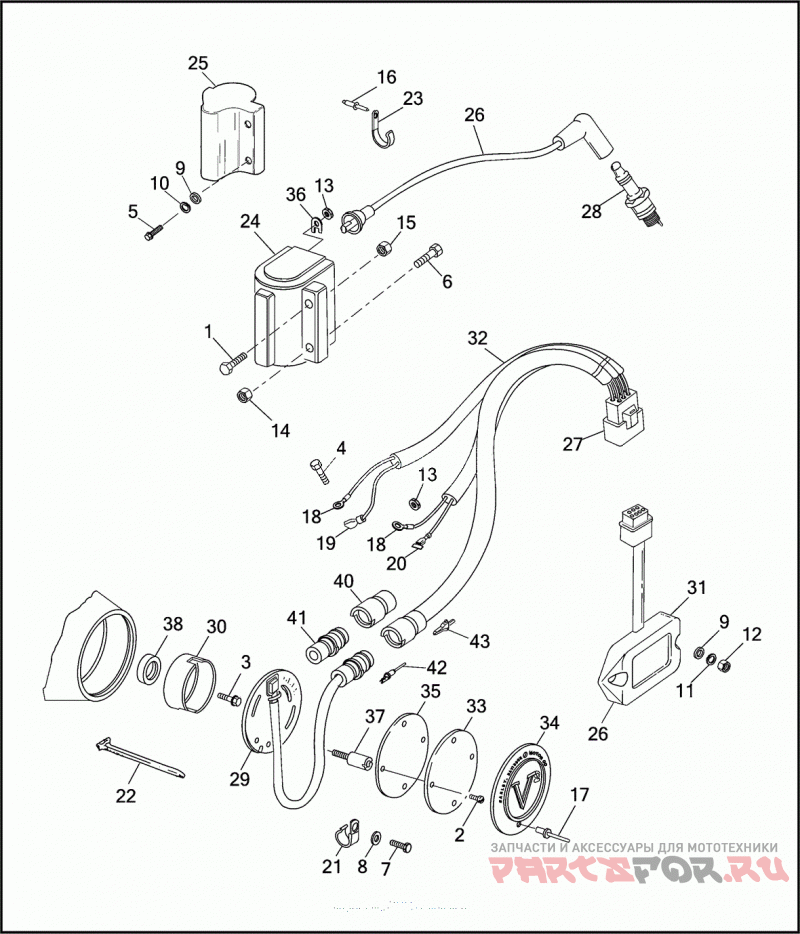

ELECTRONIC IGNITION SYSTEM - 1993 для мотоциклов Harley Davidson FXRP 1EDL SUPER GLIDE POLICE (WINDSHIELD) (1993) (1993)

ELECTRONIC IGNITION SYSTEM - 1993

Harley Davidson FXRP 1EDL SUPER GLIDE POLICE (WINDSHIELD) (1993)

oem код

название

цена

812

SCREW 1/4-20 X 1-1/2 KNURLED HD. (CHROME)

1601

SCREW NO. 8-32 X 1/2 POZIDRIV FLAT COUNTERSINK HD. (GRADE 2)

2611C

BOLT NO. 10-32 X 3/4 HEX HD., W/WASHER (GRADE 5)

2731W

SCREW NO. 10 X 3/8 PHILLIPS TRUSS HD., SELF-TAPPING

3473

BOLT NO. 10-32 X 1/2 HEX HD. (GRADE 2)

4718A

SCREW 1/4-20 X 1-1/2 KNURLED HD., W/LOCKPATCH

6099

WASHER 1/4 X 7/16 X 1/16

6716

WASHER NO. 10 X 1/2 X 3/64

7118

LOCKWASHER 3/16 INTERNAL TOOTH

7220

LOCKWASHER NO. 10 EXTERNAL TOOTH

7634

NUT NO. 10-32 X 1/8 X 5/16 (BRASS)

7629

NUT NO. 10-32 X 3/8 KEPS

7686

LOCKNUT 1/4-20 X 5/16 X 7/16

8699

RIVET IGNITION MODULE

9857

TERMINAL RING TYPE

9900

TERMINAL FEMALE SPADE TYPE

9907

TERMINAL FEMALE SPADE TYPE

CLAMP IGNITION WIRE

CABLE STRAP

Катушка зажигания

COVER COIL

SPARK PLUG CABLE

INSULATOR RECEPTACLE HOUSING

32400-80B

SENSOR ASSEMBLY W/O RECEPTACLE

Ротор

IGNITION MODULE

TIMER COVER INNER

TIMER COVER OUTER

GASKET TIMER COVER

SCREW TIMER COVER

Сальник

PLUG FEMALE, MODULE

PLUG MALE, SENSOR

PIN SINGLE SOCKET

SOCKET SINGLE PIN
