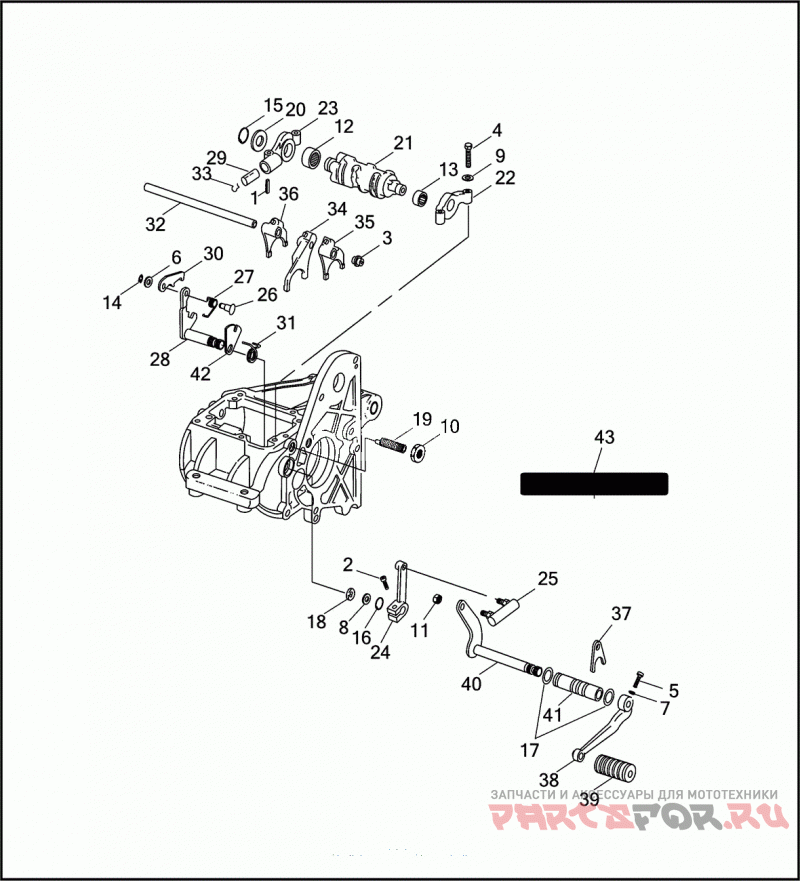

GEAR SHIFTER

Harley Davidson FXR 1EAL SUPER GLIDE (1993)

Harley Davidson
#oem кодцена
1
601
Палец
2
856A
SCREW 5/16-24 X 1 SOCKET HD. (GRADE 8)
3
3784
SET SCREW 1/2-20 X 1/2 SOCKET HD., W/LOCKPATCH
4
3993
BOLT 1/4-20 X 1-1/4 HEX HD. (GRADE 5)
5
4016
SCREW 5/16-18 X 1.0 SOCKET BUTTON HD.
6
6016
WASHER 11/32 X 11/16 X 1/16
7
6314W
WASHER 21/64 X 9/16 X 1/8 (ZINC)
8
6497HW
WASHER 29/64 X 1-1/8 X 1/16
9
6736
WASHER 9/32 X 5/8 X 1/16
10
7515
JAMNUT 7/16 X 1/4 X 11/16 (GRADE 2)
11
7744
JAMNUT 5/16-24 X 3/16 X 1/2 (GRADE 2)
12
9114
Игольчатый подшипник
13
9115
Игольчатый подшипник
14
11016
Стопорное кольцо
15
11083
Стопорное кольцо
16
11150
Стопорное кольцо
17
11117A
O-RING SLEEVE
18
12045
Уплотнение
19
33119-79B
ADJUSTING SCREW SHIFTER ARM
20
33205-80
THRUST WASHER 0.017 THICK (AS REQUIRED)
20
33206-80
THRUST WASHER 0.020 THICK (AS REQUIRED)
20
33207-80
THRUST WASHER 0.022 THICK (AS REQUIRED)
20
33208-80
THRUST WASHER 0.025 THICK (AS REQUIRED)
20
33209-80
THRUST WASHER 0.028 THICK (AS REQUIRED)
20
33210-80
THRUST WASHER 0.031 THICK (AS REQUIRED)
20
33211-80
THRUST WASHER 0.035 THICK (AS REQUIRED)
20
33212-80
THRUST WASHER 0.039 THICK (AS REQUIRED)
21
33320-79D
SHIFTER CAM
22
33326-79A
SUPPORT SHIFTER CAM, LEFT
23
33332-79
SUPPORT SHIFTER CAM, RIGHT
24
33715-85A
LEVER SHIFTER ROD
25
33728-82B
Шаровая опора
26
34084-86A
LEVER, shifter shaft, w/#32 & 33
27
34083-79
SPRING SHIFTER SHAFT LEVER
28
34084-86A
LEVER SHIFTER SHAFT W/ 26 & 27
29
34085-79A
CAM FOLLOWER
30
34086-79
PAWL SHIFTER CAM
31
34087-79A
SPRING SHIFTER SHAFT
32
34088-87A
SHAFT SHIFTER FORK
33
34089-79
Пружина
34
34191-79E
SHIFTER FORK
35
34193-79E
SHIFTER FORK
36
34195-79E
SHIFTER FORK
37
34561-84
SLEEVE LOCATOR PLATE
38
34599-81
LEVER SHIFTER
39
34611-65A
PEG SHIFT LEVER
40
34621-84
SHIFT LEVER
41
34632-84B
SLEEVE SHIFT LEVER
42
35068-79
Пластина
43
14270-92
DECAL SHIFT PATTERN (JAPAN)
