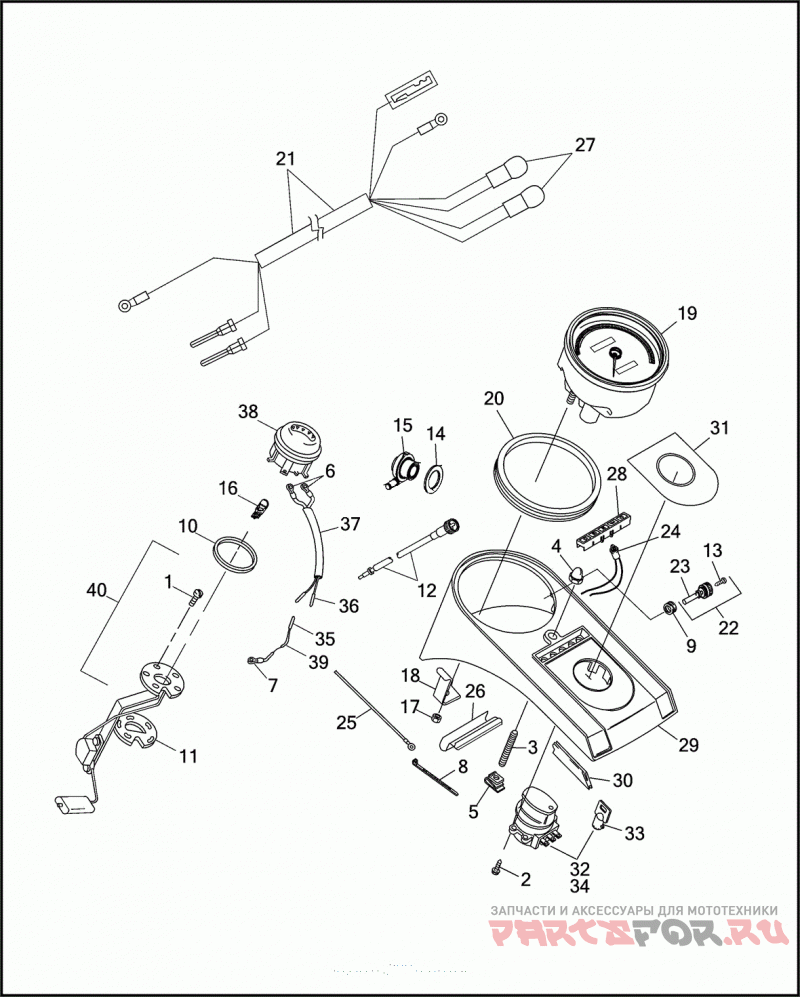

INSTRUMENTS - FXDWG

Harley Davidson FXDWG 1GEL DYNA WIDE GLIDE (1993)

Harley Davidson
#oem кодцена
1
1311D
SCREW NO. 8-32 X 1/2 PHILLIPS TRUSS HD., SELF-SEALING
2
2501A
SCREW NO. 8-32 X 3/8 HEX HD., SELF-TAPPING
3
3256
SCREW 5/16-18 X 2-1/2
4
7549A
ACORN NUT 5/16-18 X 9/16 X 1/2
5
8102
SPEEDNUT 5/16-18
6
9856
TERMINAL RING TYPE, #6 HOLE
7
9857
TERMINAL RING TYPE, #10 HOLE
8
10065
CABLE STRAP
9
11480
Уплотнитель резиновый
10
61192-88
GASKET CAP GAUGE
11
61324-88A
GASKET FUEL SENDING UNIT
12
67024-84A
CABLE ASSEMBLY SPEEDOMETER
13
67117-85
SCREW ODOMETER KNOB
14
67118-87
SEAL SPEEDOMETER DRIVE
15
67120-84B
DRIVE UNIT SPEEDOMETER
16
67136-85
BULB FUEL GAUGE
17
67175-89
Гайка
18
67176-89
BRACKET SPEEDOMETER
19
67178-93
SPEEDOMETER MPH
19
67179-93
SPEEDOMETER KPH
20
67190-89
SEAL SPEEDOMETER
21
67205-89
WIRING HARNESS SPEEDOMETER
22
67212-93
RESET KNOB KIT W/ 13 & 23
23
67215-89
KNOB ODOMETER
24
68708-93
INDICATOR LIGHT
25
70185-93
GROUND WIRE
26
70982-93
SHIELD INDICATOR LIGHT WIRING
27
71099-74
BULB SPEEDOMETER
28
71142-93
LENS INDICATOR LIGHTS
29
71246-92
INSTRUMENT PANEL
30
71299-93
TRIM INSTRUMENT PANEL
31
71302-93B
NAMEPLATE IGNITION SWITCH (SATIN BLACK)
32
71450-04
LOCK SET W/ FORK LOCK & 71313-96A
34
71313-96A
IGNITION SWITCH W/ KEYS
35
72038-71A
SOCKET SINGLE PIN
36
72039-71A
PIN SINGLE SOCKET
37
75047-88
HARNESS FUEL GAUGE
38
75049-88C
FUEL GAUGE
39
75058-88
WIRE FUEL GAUGE, GROUND
40
75062-90A
SENDING UNIT
41
14292-93
NAMEPLATE IGNITION SWITCH (90TH ANNIVERSARY) (NOT ILLUSTRATED)
