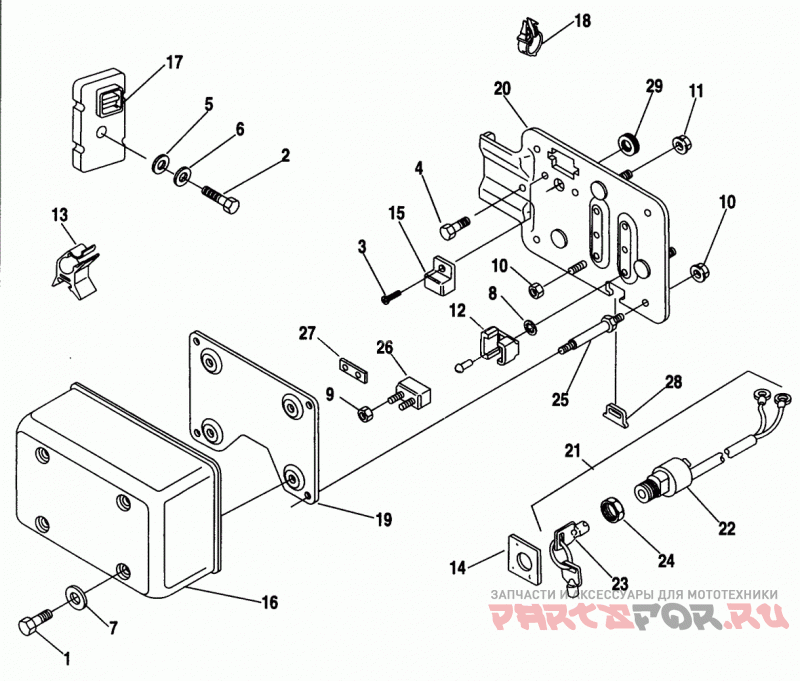

SWITCHES AND CIRCUIT BREAKERS - DYNA MODEL

Harley Davidson FXDS-CONV GGLP Dyna Glide Convertible (1993)

Harley Davidson
#oem кодцена
1
3594
SCREW, #1/4-20 X 5/8 hex socket head cap
2
3993
BOLT, 1/4-20 X 1-1/4 hex. hd.(Grade 5 steel)
3
4091
BOLT, No. 10-24 X 1/2 hex. washer hd. (self-tapping)
4
4384
Винт
5
6035
WASHER, 1/4 X 1-1/4 X 1/8 (neoprene)
6
6036
WASHER, 17/64 X 1 X 1/16
7
6099
WASHER, 1/4 X 7/16 X 1/16
8
7229W
LOCKWASHER, 1/4 internal/external tooth
9
7629
NUT, #10-32 X 3/16 X 3/8 hex.
10
7716
FLANGE LOCKNUT, 1/4-20 X 7/16 hex
11
7796
NUT, 5/16-18 X 1/4 hex. w/ext.tooth washer (Grade 2 steel)
12
9952
Зажим
14
14117-94A
DECAL IGNITION SWITCH
15
31506-79C
STARTER RELAY (early model year)
16
66333-90
COVER, electrical panel (chrome)
17
68537-89G
CANCELLER turn signal
18
70347-84
RETAINER, wire
19
70984-90A
BRACKET, ignition module
20
70987-90B
ELECTRICAL PANEL
22
71428-90B
IGNITION SWITCH
24
71555-90
FACE NUT
25
72342-90A
STAND OFF
26
74589-73
CIRCUIT BREAKER, 15 amp
26
74599-77B
CIRCUIT BREAKER, 30 amp - battery
27
74598-73
CONNECTOR BAR
28
90474-90
Уплотнитель резиновый
29
90483-85
Уплотнитель резиновый
