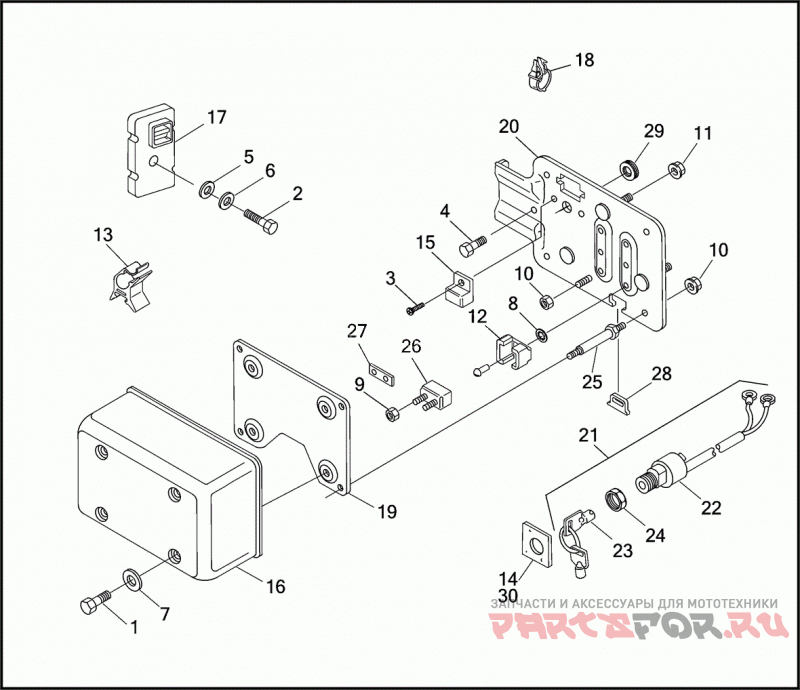

SWITCHES & CIRCUIT BREAKERS

Harley Davidson FXDL 1GDL DYNA LOW RIDER (1993)

Harley Davidson
#oem кодцена
1
3594
SCREW 1/4-20 X 5/8 KNURLED HD. (GRADE 8)
2
3993
BOLT 1/4-20 X 1-1/4 HEX HD. (GRADE 5)
3
4091
SCREW NO. 10-24 X 1/2 HEX HD., W/WASHER, SELF-TAPPING (ZINC)
4
4384
SCREW 5/16-18 X 1 HEX HD., W/WASHER, SELF-THREADING
5
6035A
WASHER 1/4 X 1-1/4 X 1/8 NEOPRENE
6
6036
WASHER 17/64 X 1 X 1/16
7
6099
WASHER 1/4 X 7/16 X 1/16
8
7229W
LOCKWASHER 1/4 INTERNAL/EXTERNAL TOOTH
9
7629
NUT NO. 10-32 X 3/8 KEPS
10
7716
LOCKNUT 1/4-20 X 7/16 FLANGE
11
7796
NUT 5/16-18 X 1/4 EXTERNAL-TOOTH WASHER (GRADE 2)
12
9952
Зажим
14
14117-90
DECAL IGNITION SWITCH
15
31506-79C
STARTER RELAY (early model year)
16
66333-90
COVER ELECTRICAL PANEL (CHROME)
17
68537-89G
TURN SIGNAL CANCELLER
18
70347-84
RETAINER WIRE
19
70984-90A
BRACKET IGNITION MODULE
20
70987-90B
ELECTRICAL PANEL
21
71421-90B
LOCK SET FORK & IGNITION W/ KEY
22
71428-90B
IGNITION SWITCH
24
71555-90
FACE NUT
25
72342-90A
STAND OFF
26
74589-73
CIRCUIT BREAKER 15 AMP
26
74599-77B
CIRCUIT BREAKER 30 AMP, BATTERY
27
74598-73
CONNECTOR BAR
29
90483-85
Уплотнитель резиновый
30
14121-90
DECAL IGNITION SWITCH (HDI)
