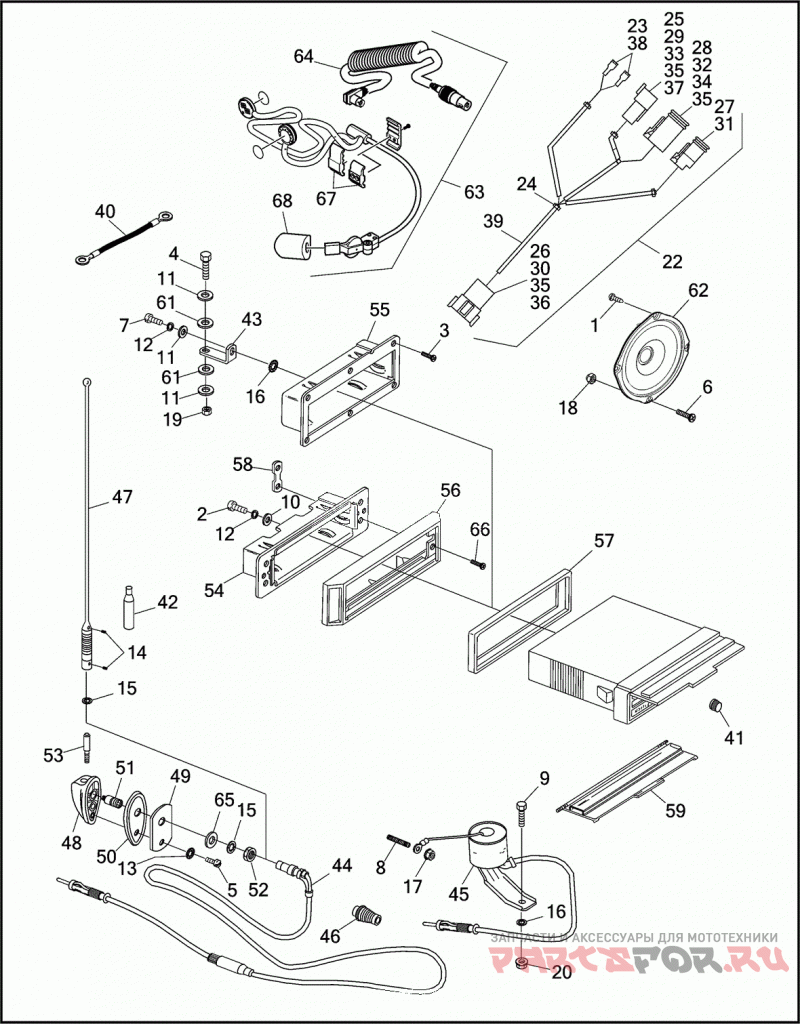

SOUND SYSTEM

Harley Davidson FLTCU 1DML TOUR GLIDE ULTRA CLASSIC (1993)

Harley Davidson
#oem кодцена
3
2508
SCREW NO. 10-32 X 1/2 SOCKET HD.
4
2551W
BOLT 1/4-20 X 1 HEX HD. (GRADE 5)
5
2576
SCREW NO. 10-32 X 3/4 PAN HD. (GRADE 2)
6
2646
SCREW NO. 8-32 X 3/4 POZIDRIV PAN HD. (GRADE 2)
7
2774
SCREW 1/4-20 X 5/8 POZIDRIV PAN HD. (GRADE 2)
8
3227
SCREW M5 (.08 PITCH) X 35MM SET
9
3574
SCREW 1/4-20 X 3/4 FLANGE
11
6253W
WASHER 1/4 X 3/4 X 3/64
14
3266
Втулка
15
7129
LOCKWASHER 1/2 INTERNAL TOOTH
16
7229W
LOCKWASHER 1/4 INTERNAL/EXTERNAL TOOTH
17
7492
Гайка
18
7609W
LOCKNUT NO. 8-32 X 3/16 X 5/16
19
7686
LOCKNUT 1/4-20 X 5/16 X 7/16
20
7716
LOCKNUT 1/4-20 X 7/16 FLANGE
21
70160-91
WIRING HARNESS AUDIO (NOT ILLUSTRATED)
40
70168-89
WIRING ASSEMBLY RADIO GROUND
41
71809-88
CONTROL KNOB
42
74414-93
BOOT ANTENNA
43
76240-88
BRACKET REAR
44
76248-86
CABLE ANTENNA
45
76294-93A
CABLE ANTENNA, W/ COIL
46
11486
GROMMET SPLIT
47
76250-86C
ANTENNA
51
76258-86
PLUG ASSEMBLY
52
76259-86
NUT HEX JAM
53
76260-89
ANTENNA ADAPTOR
55
76277-88
BRACKET MOUNTING
57
76281-88
NOSE SEAL
59
76283-89A
FRONT COVER
60
76305-93
CUSHION (NOT ILLUSTRATED)
61
77004-80
WASHER RUBBER
62
77029-86B
SPEAKER
63
77147-91C
HEADSET W/ 64
64
77148-91
COILED CORD HEADSET (HDI)
65
90763-79
Шайба
67
77151-91A
HEADSET CLAMP & HARDWARE (HDI)
68
77159-95
WIND SOCK MICROPHONE (HDI)
69
70296-89
WIRING HARNESS POWER (NOT ILLUSTRATED)
