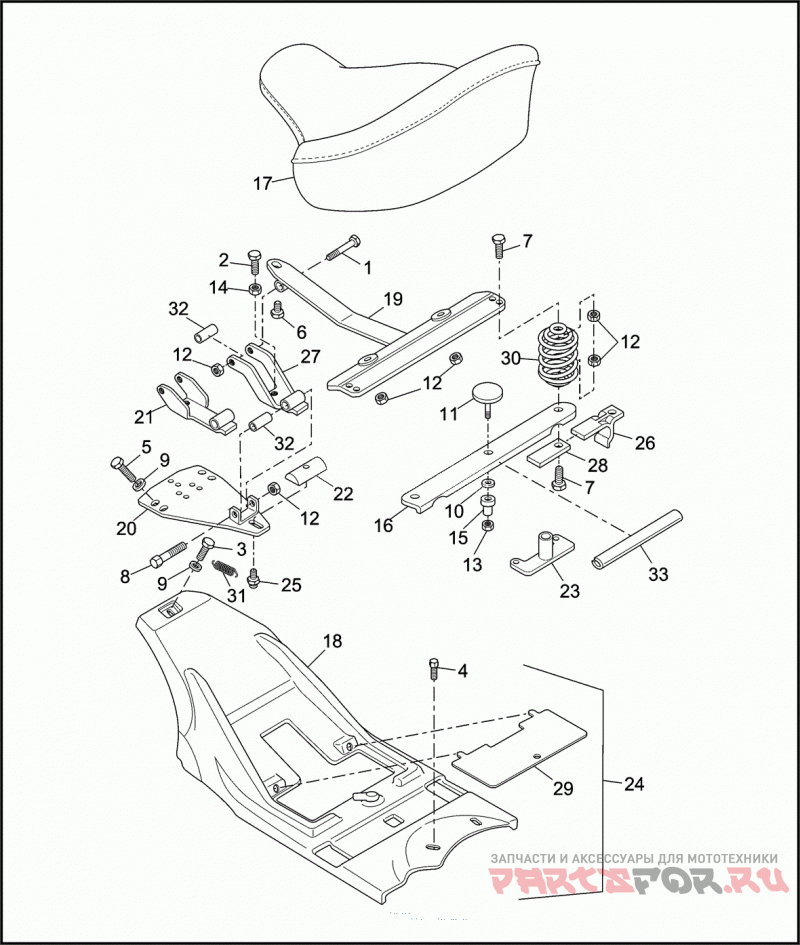

SEAT - SPRING CUSHION

Harley Davidson FLHTP-FRG DF93 ELECTRA GLIDE STANDARD POLICE (FRG/WND) (1993)

Harley Davidson
#oem кодцена
1
2667
BOLT 5/16-18 X 2 hex hd. (Grade 5) | DA93/DF93/ED93/ED94/EF93/EF94
2
2708A
SCREW 5/16-18 X 1 socket hd. | DA93/DF93/ED93/ED94/EF93/EF94
3
2774
SCREW 1/4-20 X 5/8 Pozidriv pan hd. (Grade 2) | DA93/DF93
4
2824W
SCREW 5/16-24 X 9/16 Phillips hd. | DA93/DF93
5
2871W
BOLT 5/16-18 X 1-1/4 hex hd. (Grade 5) | DA93/DF93
6
3546
BOLT 5/16-18 X 5/8 hex flange hd., w/lockpatch | DA93/DF93/ED93/ED94/EF93/EF94
7
3604
SCREW | DA93/DF93/ED93/ED94/EF93/EF94
8
4326A
SCREW 5/16-18 X 2 socket hd. | DA93/DF93/ED93/ED94/EF93/EF94
9
6109
WASHER 5/16 X 11/16 X 1/8 | DA93/DF93
10
6703
WASHER 1/4 X 5/8 X 1/16 | DA93/DF93
11
90730-95
KNOB | DA93/DF93
12
7531
LOCKNUT 5/16-18 X 9/32 X 1/2 flange | DA93/DF93/ED93/ED94/EF93/EF94
13
7742
LOCKNUT 1/4-20 X 7/32 X 7/16 | DA93/DF93
14
7748W
NUT 5/16-18 X 1/4 X 1/2 (Grade 2) | DA93/DF93/ED93/ED94/EF93/EF94
15
8099
WELL NUT | DA93/DF93
17
52242-83E
SEAT | DA93/DF93/ED93/ED94/EF93/EF94
18
52243-93
TRIM PANEL seat | DA93/DF93
19
52249-93
SUPPORT BRACKET seat | DA93/DF93/ED93/ED94/EF93/EF94
20
52256-93
SEAT BRACKET front | DA93/DF93/ED93/ED94/EF93/EF94
22
52260-93
LOCK BAR | DA93/DF93/ED93/ED94/EF93/EF94
23
52261-93
LOCK BRACKET | DA93/DF93
24
52262-93
TRIM PANEL ASSEMBLY w/ 18 & 29 | DA93/DF93/ED93/ED94/EF93/EF94
25
52269-93
RETAINER lock bar | DA93/DF93/ED93/ED94/EF93/EF94
27
52271-93
PIVOT BRACKET front | DA93/DF93
28
52272-93
BRACKET PAD seat | DA93/DF93
29
52273-93
TRIM PANEL battery | DA93/DF93
30
52561-93
SPRING seat | DA93/DF93/ED93/ED94/EF93/EF94
31
52562-93
SPRING lock bar | DA93/DF93/ED93/ED94/EF93/EF94
32
53452-93
BUSHING pivot | DA93/DF93/ED93/ED94/EF93/EF94
