SEAT - SPRING CUSHION для мотоциклов Harley Davidson FLHTP 1DAL ELECTRA GLIDE STANDARD POLICE (WINDSHIELD) (1993) (1993)

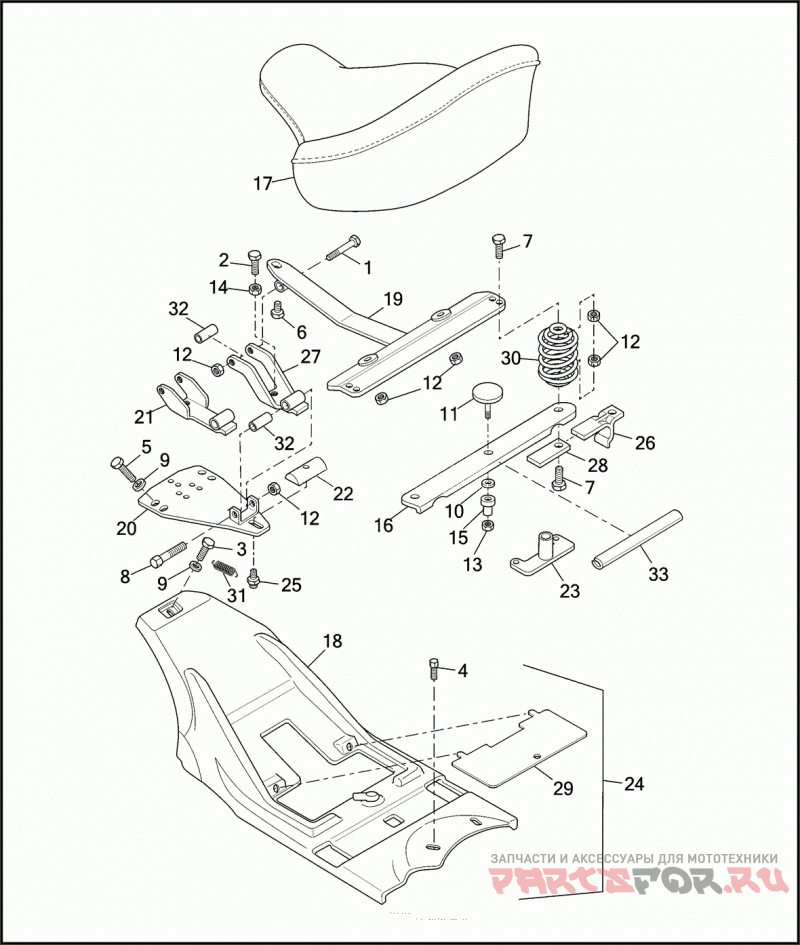

SEAT - SPRING CUSHION

Harley Davidson FLHTP 1DAL ELECTRA GLIDE STANDARD POLICE (WINDSHIELD) (1993)

oem код

название

цена

2667

BOLT 5/16-18 X 2 HEX HD. (GRADE 5)

2708A

SCREW 5/16-18 X 1 SOCKET HD.

2774

SCREW 1/4-20 X 5/8 POZIDRIV PAN HD. (GRADE 2)

2824W

SCREW 5/16-24 X 9/16 PHILLIPS HD.

2871W

BOLT 5/16-18 X 1-1/4 HEX HD. (GRADE 5)

3546

BOLT 5/16-18 X 5/8 HEX FLANGE HD., W/LOCKPATCH

3604

Винт

4326A

SCREW 5/16-18 X 2 SOCKET HD.

6109

WASHER 5/16 X 11/16 X 1/8

6703

WASHER 1/4 X 5/8 X 1/16

90730-95

Ручка

7531

LOCKNUT 5/16-18 X 9/32 X 1/2 FLANGE

7742

LOCKNUT 1/4-20 X 7/32 X 7/16

7748W

NUT 5/16-18 X 1/4 X 1/2 (GRADE 2)

WELL NUT

Седло

TRIM PANEL SEAT

SUPPORT BRACKET SEAT

SEAT BRACKET FRONT

LOCK BAR

LOCK BRACKET

TRIM PANEL ASSEMBLY W/ 18 & 29

RETAINER LOCK BAR

PIVOT BRACKET FRONT

BRACKET PAD SEAT

TRIM PANEL BATTERY

Пружины

SPRING LOCK BAR

BUSHING PIVOT
