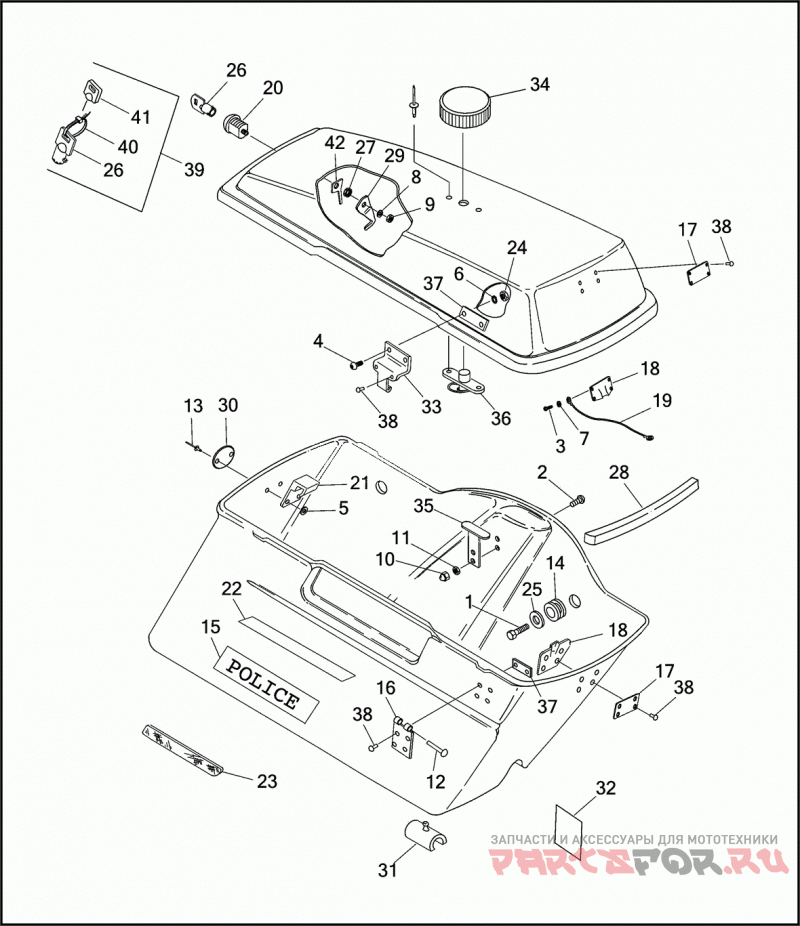

SADDLEBAGS - FLHTP

Harley Davidson FLHTP 1DAL ELECTRA GLIDE STANDARD POLICE (WINDSHIELD) (1993)

Harley Davidson
#oem кодцена
1
2551W
BOLT 1/4-20 X 1 HEX HD. (GRADE 5)
2
2665
SCREW NO. 10-24 X 5/8 POZIDRIV PAN HD. (GRADE 2)
3
3595
SCREW NO. 6-32 X 1/4 TORX HD., W/LOCKPATCH
4
3597
SCREW NO. 6-32 X 9/16 TORX PAN HD., THREAD-CUTTING
5
6335
WASHER NO. 4 X 5/16 X 1/32
6
6717
WASHER NO. 6 X 3/8 X 3/64
7
6970
WASHER 1/4 X 1/2 X 1/16 SPRING
8
7128
LOCKWASHER 9/32 INTERNAL TOOTH
9
7586
JAMNUT 9/32-28 X 1/4
10
7602
ACORN NUT NO. 10-32 NYLON
11
7838
NUT NO. 10-24 KEPS
12
8502
заклёпка
13
8503
заклёпка
14
11464
ISOLATOR GROMMET
15
14274-93A
DECAL LEFT (POLICE)
15
14275-93A
DECAL RIGHT (POLICE)
15
59223-93A
DECAL LEFT (SHERIFF)
15
59224-93A
DECAL RIGHT (SHERIFF)
16
53427-80
HINGE
17
53478-80
BACKING PLATE
18
53563-82
BRACKET CABLE BRACE MOUNTING
19
53564-82
CABLE BRACE COVER
20
53848-00
Замок
21
53616-85
CATCH
22
59221-93
COVER DECAL, LEFT
22
59222-93
COVER DECAL, RIGHT
23
59287-92
REFLECTOR RIGHT (RED)
23
59288-92
REFLECTOR LEFT (RED)
24
60031-61
LOCKNUT NO. 6 NYLON INSERT (ZINC)
25
67002-93
Проставка
27
84850-92
NUT 3/4-24 X 5/32
28
90675-93A
GASKET SADDLEBAG COVER
29
90686-92
CAM HOOK
30
90687-85
REINFORCING PLATE
31
90764-93
CUSHION SADDLEBAG SUPPORT
32
90820-93D
LABEL LOAD LIMITS
33
90902-93
PLATE HINGE
34
90929-84
Ручка
35
90926-84
BRACKET SPRING LATCH
36
90929-84
SPRING LATCH W/ 34
37
90964-63
BACKING PLATE
38
90965-63
заклёпка
39
53562-93A
LOCK SET COMPLETE
40
10065
CABLE STRAP
41
61081-92
COVER KEY HEADSET
42
53617-85
GUIDE LATCH
