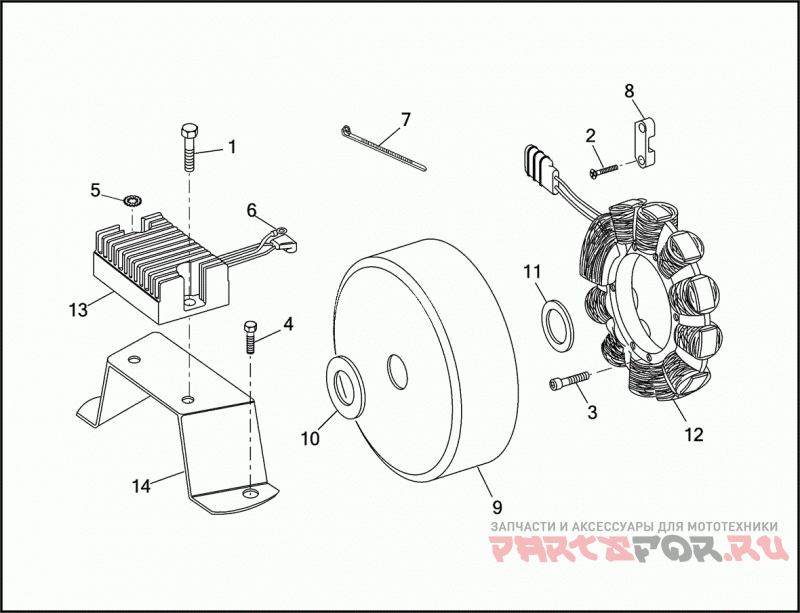

ALTERNATOR & REGULATOR

Harley Davidson FLHTP 1DAL ELECTRA GLIDE STANDARD POLICE (WINDSHIELD) (1993)

Harley Davidson
#oem кодцена
1
939
SCREW 1/4-20 X 1 SELF-TAPPING, W/WASHER (GRADE 2)
1
4329
SCREW 1/4-20 X 3/4 HEX HD. W/WASHER, SELF-TAPPING
2
2273A
SCREW NO. 4-24 X 1/2 SELF-TAPPING, W/SEALANT
3
2720
SCREW 10-24 X 1.0 TORX HD., W/LOCKPATCH
4
4328
SCREW 5/16 X 3/4 HEX HD., W/WASHER, SELF-TAPPING
5
7124
LOCKWASHER 1/4 INTERNAL TOOTH
6
9866
WIRE TERMINAL RING TYPE
7
10006
CABLE STRAP
8
29954-71A
RETAINER ALTERNATOR PLUG
9
29957-81B
ROTOR ASSEMBLY
10
29960-91A
Проставка
11
29961-85
Проставка
12
29970-88D
Статор
13
74519-88A
Регулятор
14
74529-79A
BRACKET REGULATOR MOUNTING
