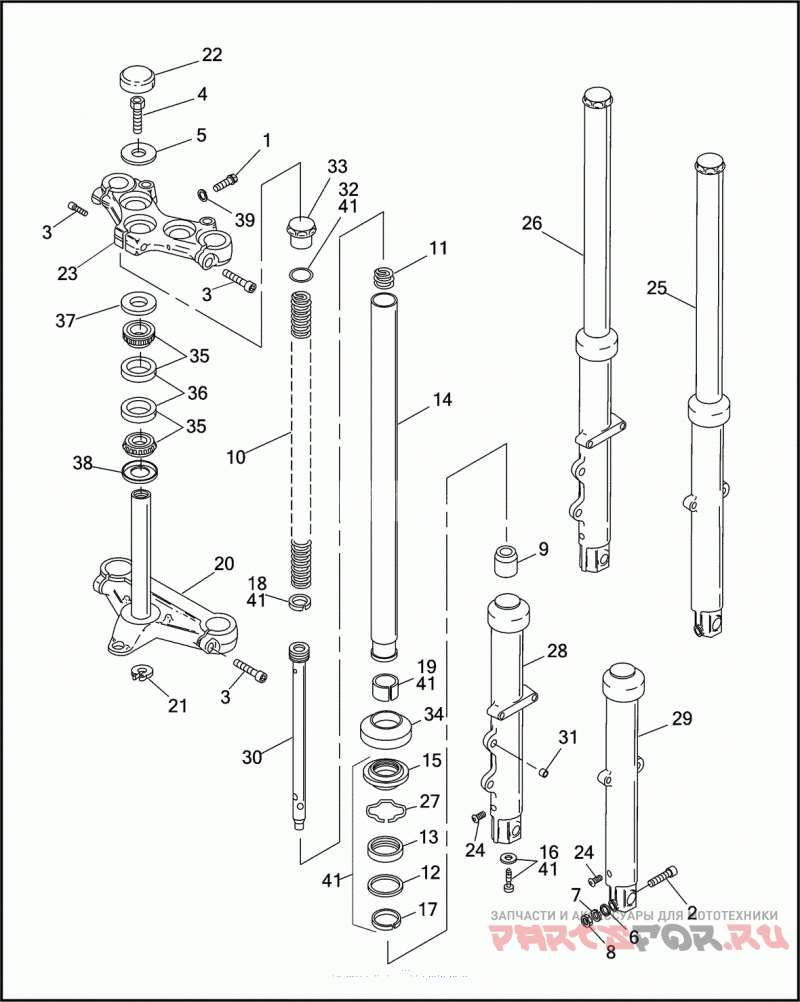

Передняя вилка

Harley Davidson XL883HUG 4CEM SPORTSTER 883 HUGGER (1992)

Harley Davidson
#oem кодцена
1
2662W
SCREW NO. 10-24 X 3/8 PHILLIPS ROUND HD., SELF-TAPPING
1
4091
SCREW NO. 10-24 X 1/2 HEX HD., W/WASHER, SELF-TAPPING (ZINC)
2
4029A
SCREW 3/8-16 X 2-1/4 SOCKET HD. (BLACK)
3
4350A
SCREW 3/8-16 X 1-1/2 SOCKET HD.
5
6655
WASHER 5/8 X 1-1/2 X 7/64
6
6701
WASHER 3/8 X 13/16 X 1/16
7
7038
LOCKWASHER 3/8
8
7783
NUT 3/8-16 X 5/16 X 9/16 (GRADE 2)
9
45361-90
LOWER STOP
10
45372-92
Пружина
11
45374-87
SPRING SLIDER
12
45377-87
SPACER OIL SEAL
13
45378-87
Сальник
14
45395-92
SLIDER TUBE
15
45401-87
SEAL DUST
16
45405-75A
SCREW M8 X 1.25 X 27 HEX SOCKET HD.
17
45461-87
BUSHING UPPER
18
45460-90
RING DAMPER TUBE
21
45611-86
Стопорное кольцо
23
45739-87
BRACKET UPPER
24
45790-80
DRAIN SCREW W/ WASHER
25
45928-92
FORK SLIDER & TUBE ASSEMBLY RIGHT
26
45929-92
FORK SLIDER & TUBE ASSEMBLY LEFT
27
45905-87
RETAINING RING OIL SEAL
29
45923-87
SLIDER ASSEMBLY RIGHT
30
45938-92
DAMPER TUBE
31
45934-86
BUSHING BRAKE CALIPER
32
45984-87
Уплотнительное кольцо
33
45996-87
CAP SLIDER TUBE
34
46002-87
COVER SLIDER
35
48300-60
ROLLER BEARING W/ CUP
36
48315-60
BEARING CUP
37
48361-80
DUST SHIELD UPPER
38
48365-48A
DUST SHIELD LOWER
39
7220
LOCKWASHER NO. 10 EXTERNAL TOOTH
40
48140-84A
STEERING HEAD LOCK ASSEMBLY (HDI) (NOT ILLUSTRATED)
41
49378-09
FORK REBUILD KIT W/ 12, 13, 15-19, 27 & 32
