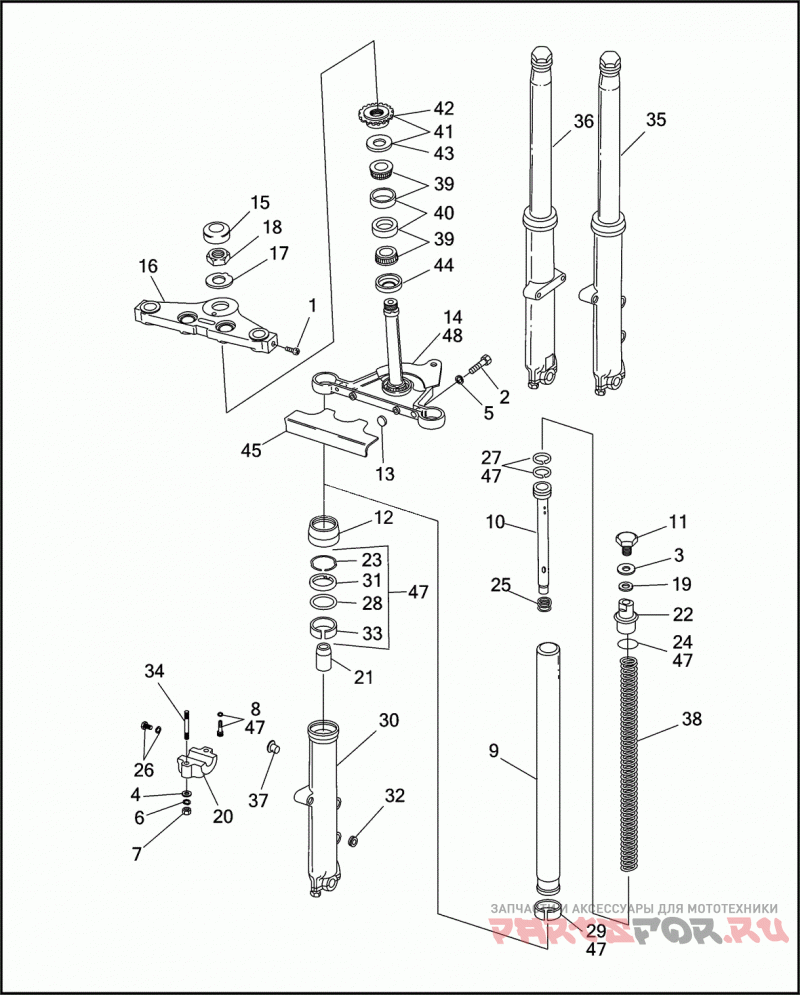

FRONT FORK - FXSTC

Harley Davidson FXSTC 1BKL SOFTAIL CUSTOM (1992)

Harley Davidson
#oem кодцена
1
2823
SCREW 5/16-24 X 3/8 POZIDRIV TRUSS HD., W/LOCKPATCH
2
4729
BOLT 7/16-20 X 1-1/4 HEX HD. (GRADE 5)
3
5710
WASHER 63/64 X 1-1/2 X 5/64
4
6702
WASHER 5/16 X 11/16 X 1/16
5
7039
LOCKWASHER 7/16
6
7041
LOCKWASHER 5/16
7
7748W
NUT 5/16-18 X 1/4 X 1/2 (GRADE 2)
8
45405-75A
SCREW M8 X 1.25 X 27 HEX SOCKET HD.
9
45417-84
SLIDER TUBE
10
45418-84
DAMPER TUBE COMPLETE
11
45419-80
CAP SLIDER TUBE
12
45420-80
DUST COVER
13
45648-85A
PAD FELT
14
45640-88B
STEM & BRACKET W/ BEARING & SHIELD
15
45670-80A
CAP FORK STEM
16
45672-80B
BRACKET UPPER (CHROME)
17
45717-63
LOCKWASHER 1 X 2 X 0.035 KEYED SPECIAL
18
45718-60
NUT 1-24 X 1.5 X 0.47
19
45733-48
OIL SEAL FORK TUBE PLUG
20
45832-77A
AXLE CAP RIGHT SLIDER
21
45834-77
LOWER STOP
22
45838-77
PLUG FORK TUBE
23
45842-77A
RETAINING RING OIL SEAL
24
45845-77
O-RING SLIDER TUBE PLUG
25
45855-77
SPRING DAMPER TUBE
26
45858-77
DRAIN SCREW SLIDER, W/ WASHER
27
45859-77A
RING DAMPER TUBE
28
45865-84
WASHER SLIDER
29
45866-84
BUSHING SLIDER TUBE
30
45873-91A
SLIDER LEFT
30
45874-91
SLIDER RIGHT
31
45875-84A
OIL SEAL SLIDER
32
45934-86
BUSHING BRAKE CALIPER
33
45940-84
BUSHING SLIDER
34
45998-73
Шпилька
35
46004-91A
FORK SLIDER & TUBE ASSEMBLY LEFT
36
46006-91A
FORK SLIDER & TUBE ASSEMBLY RIGHT
37
46020-84
BUSHING UPPER, LEFT SLIDER, BRAKE CALIPER
38
46048-84
Пружина
39
48300-60
ROLLER BEARING W/ CUP
40
48315-60
BEARING CUP
41
48330-48A
ADJUSTING NUT UPPER, W/ SHIELD
42
48332-48C
ADJUSTING NUT UPPER
43
48361-80
DUST SHIELD BEARING, UPPER
44
48365-48A
DUST SHIELD BEARING, LOWER
45
67773-80A
MOUNTING PLATE HEADLAMP (CHROME)
46
2661W
SCREW NO. 10-24 X 1/2 PHILLIPS ROUND HD., SELF-TAPPING
47
49377-09A
FORK REBUILD KIT W/ 8, 23, 24, 27, 28, 29, 31 & 33
48
45640-88B
FORK STEM BRACKET (HDI)
49
48140-84A
STEERING HEAD LOCK ASSEMBLY (HDI) (NOT ILLUSTRATED)
