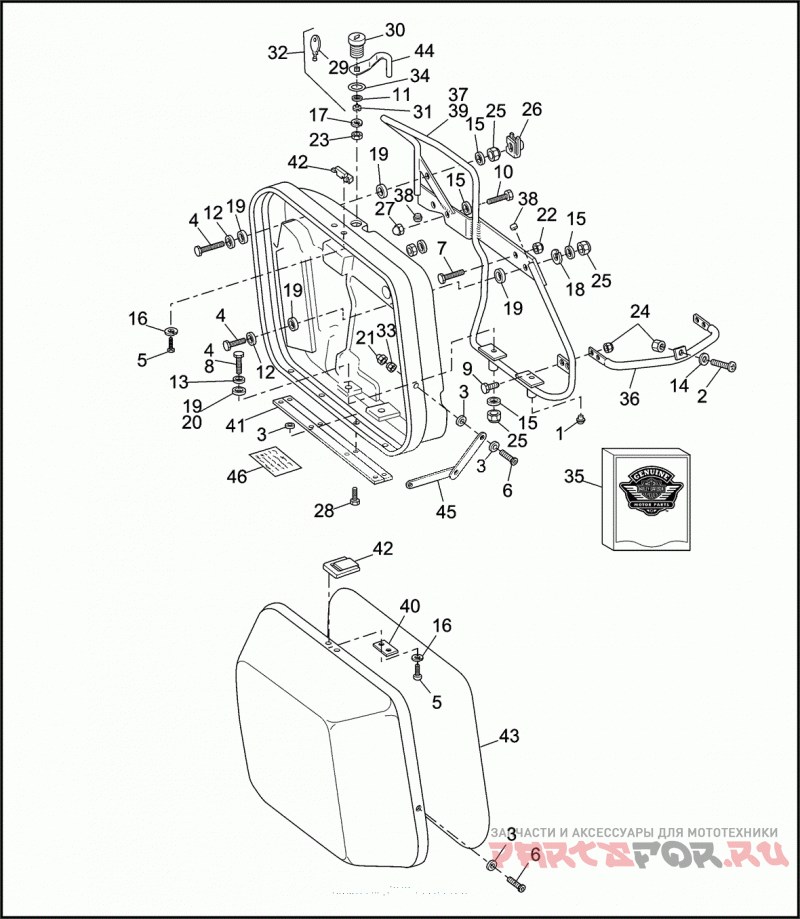

SADDLEBAGS - FXRT

Harley Davidson FXRT EC92 SPORT GLIDE (1992)

Harley Davidson
#oem кодцена
1
735
PLUG saddlebag bracket | EC91/EC92
2
2607
SCREW 1/4-20 X 3/4 Pozidriv pan hd. (Grade 2) | EC91/EC92
3
6717
WASHER No. 6 X 3/8 X 3/64 | EC91/EC92
4
2790A
BOLT 5/16-18 X 7/8 hex hd., w/lockpatch (Grade 5) | EC91/EC92
5
2804W
SCREW No. 6-32 X 1/2 Pozidriv pan hd. | EC91/EC92
6
2806
SCREW No. 6-32 X 3/4 Pozidriv pan hd. (Grade 2) | EC91/EC92
7
2887WA
SCREW 5/16-18 X 1-3/4 hex hd. (Grade 5) | EC91/EC92
8
3445
BOLT 5/16-18 X 9/16 hex hd., w/lockpatch (Grade 5) | EC91/EC92
9
3787
BOLT 1/4-20 X 3/4 hex hd. (Grade 5) | EC91/EC92
11
6055
WASHER 25/64 X 47/64 X 1/8 spring | EC91/EC92
12
6229W
WASHER 5/16 X 1-1/16 X 3/64 | EC91/EC92
13
6333
WASHER 5/16 X 7/8 X 5/64 | EC91/EC92
14
6410
WASHER 1/4 X 9/16 X 1/16 nylon | EC91/EC92
15
6701
WASHER 3/8 X 13/16 X 1/16 | EC91/EC92
17
7128
LOCKWASHER 9/32 internal tooth | EC92
18
7130W
LOCKWASHER 3/8 internal tooth | EC91/EC92
19
7415A
WASHER 11/32 X 7/8 X 1/8 rubber | EC91/EC92
20
7419
WASHER 11/32 X 11/16 X 1/8 rubber | EC91/EC92
21
7520
ACORN NUT No. 6-32 X 1/4 X 1/4 nylon | EC91/EC92
22
7531
LOCKNUT 5/16-18 X 9/32 X 1/2 flange | EC91/EC92
23
7586
JAMNUT 9/32-28 X 1/4 | EC92
24
7686
LOCKNUT 1/4-20 X 5/16 X 7/16 | EC91/EC92
25
7739
LOCKNUT 5/16-18 X 11/32 X 1/2 | EC91/EC92
26
7752
SPEED NUT | EC91/EC92
27
7782
LOCKNUT 3/8-24 X 3/8 X 9/16 (Grade 8) | EC92
28
8533
RIVET | EC91/EC92
30
53848-00
LOCK | EC92
33
60031-61
LOCKNUT No. 6 nylon insert (zinc) | EC91/EC92
34
84850-92
NUT 3/4-24 X 5/32 | EC92
35
91836-82
TRAVEL BAG large | EC91/EC92
36
90488-83
CROSS BRACE | EC91/EC92
37
90492-85B
SUPPORT saddlebag, left | EC91/EC92
38
90493-83
PLUG | EC91/EC92
39
90499-83B
SUPPORT saddlebag, right | EC91/EC92
40
90655-83
CATCH lock | EC91/EC92
41
90657-84
HINGE | EC91/EC92
42
90658-84A
CATCH lock | EC91/EC92
43
90685-83
SEAL cover | EC91/EC92
44
90686-92
CAM HOOK | EC92
45
90699-83
RETAINER ARM cover | EC91/EC92
46
90820-74B
LABEL load limit | EC91/EC92
