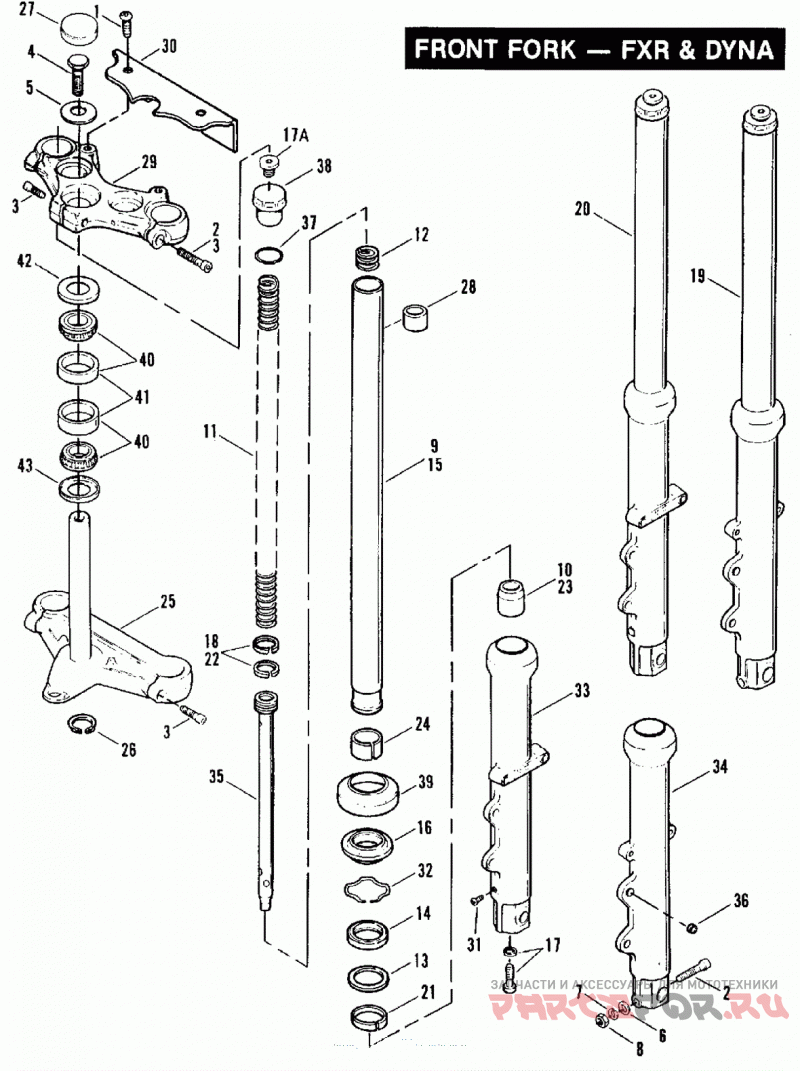

Передняя вилка

Harley Davidson FXRS-SP EGLN FXR Sport (1992)

Harley Davidson
#oem кодцена
2
4029A
SCREW, 3/8-16 X 2-1/4 socket hd.(black)
3
4350A
SCREW, 3/8-16 X 1-1/2 hex. soc. hd.
4
4453
BOLT, 1/4-20 X 7/8 hex. hd.
5
6655
WASHER, 5/8 X 1-1/2 X 3/32
6
6701
WASHER, 3/8 X 13/16 X 1/16
7
7038
LOCKWASHER, 3/8
8
7783
NUT, 3/8-16 X 5/16 X 9/16 hex.(Grade 2 steel)
11
45373-88
Пружина
12
45374-87
SPRING, slider
13
45377-87
SPACER, oil seal
14
45378-87
Сальник
16
45401-87
Уплотнение
17
45405-75A
SCREW WITH WASHER
19
45793-88
FORK SLIDER & TUBE ASSEMBLY, right
20
45791-88
FORK SLIDER & TUBE ASSEMBLY, left
21
45461-87
BUSHING, upper
22
45462-87
RING, damper tube
23
45463-87
LOWER STOP
24
45465-87
BUSHING, slider tube
25
45563-87
(HDI Only) BRACKET, lower with stem
26
45611-86
Стопорное кольцо
27
45668-90
CAP, fork stem L/M
29
45739-87
Крепление верхнее
31
45790-80
DRAIN SCREW, with washer
32
45905-87
RETAINING RING, oil seal
33
45921-87
SLIDER ASSEMBLY, left
34
45922-87
SLIDER ASSEMBLY, right
35
45925-88
DAMPER TUBE
36
45934-86
BUSHING (2 - EC/G & Dyna)
37
45984-87
Уплотнительное кольцо
38
45990-88
CAP, slider tube
39
46002-87
COVER, slider
40
48300-60
ROLLER BEARING, with cup
41
48315-60
BEARING CUP
42
48361-80
DUST SHIELD, upper
43
48365-48A
DUST SHIELD, lower
48140-84A
STEERING HEAD LOCK ASM. (HDI only)
